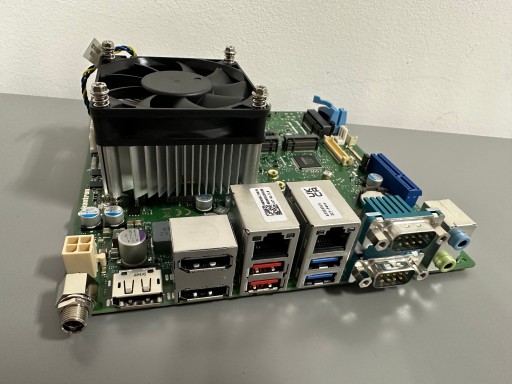

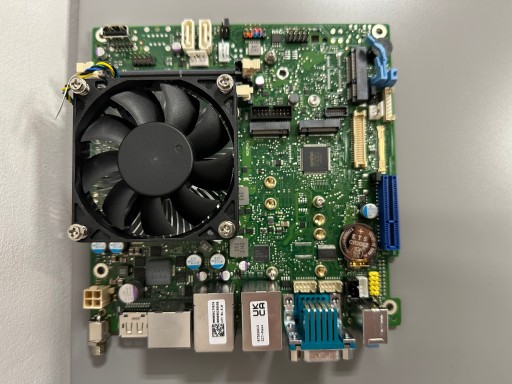

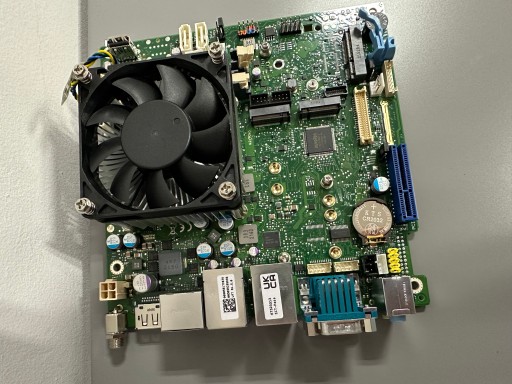

Нава Плита Контрон d3713-R2

Nowa płyta kontron z radiatorem i wbudowanym procesorem. Idelalna do zastosowań profesjonalnych. 2xRS232, 3xDP (obsługuje trzy monitory), zasilanie 12V

Full Spec:

- AMD Radeon™ Vega Graphics (within SoC)

- Up to 3x DisplayPort V1.4

- Dual Channel LVDS (24Bit) and eDP V1.3 (4K) onboard

- PCI Express® x4 (Gen3)

- 8 Bit GPIO & HD Audio onboard

- USB 2.0 and USB 3.2 (Gen1/Gen2) onboard

- WideRange internal/external DC Input (8 V - 34 V)

- HW Watchdog onboard

- RS-232/485/422 support onboard

- MEMORY: DDR4 SDRAM, Dual Channel 2x SO DIMM sockets, up to 32 GByte memory, ECC/non-ECC

- PROCESSOR:  AMD Embedded R1305G SoC

- AUDIO: Realtek ALC256 High Definition Stereo Audio Codec

- NETWORK CONNECTION: Intel® i210 & Realtek RTL8111H with 10/100/1000 MBit/s, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support

- PERIPHERAL CONNECTION: 2x USB 2.0 (by header), 2x USB 3.2 Gen1, 2x USB 3.2 Gen1 (by header), 2x USB 3.2 Gen2, 1x USB 2.0 stick socket 1x RS232/422/485; 3x RS232 (2x by header) GPIO (by header)
