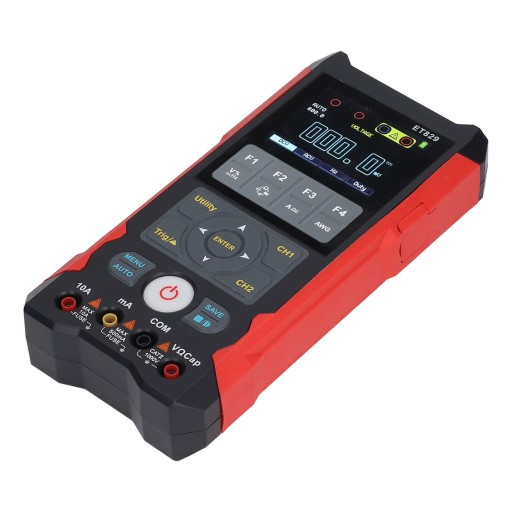

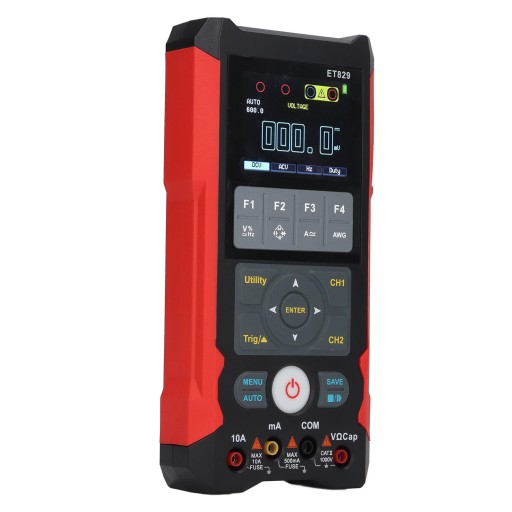

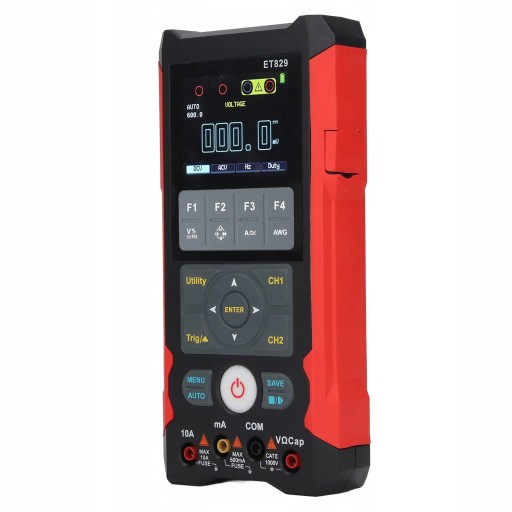

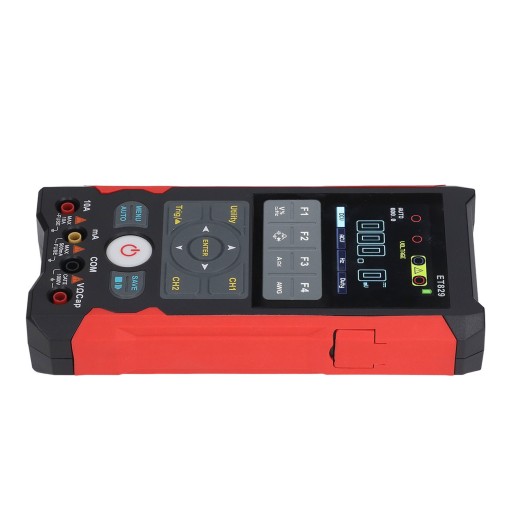

Oscilloscope multimeter 3 in 1 80MHz 2-channel

Feature:1. Digital multimeter: The digital multimeter is used to measure AC and DC voltage, current, resistance, diode, capacitance and on and off test. High sensitivity and accuracy, clear display, strong overload protection and easy to carry.

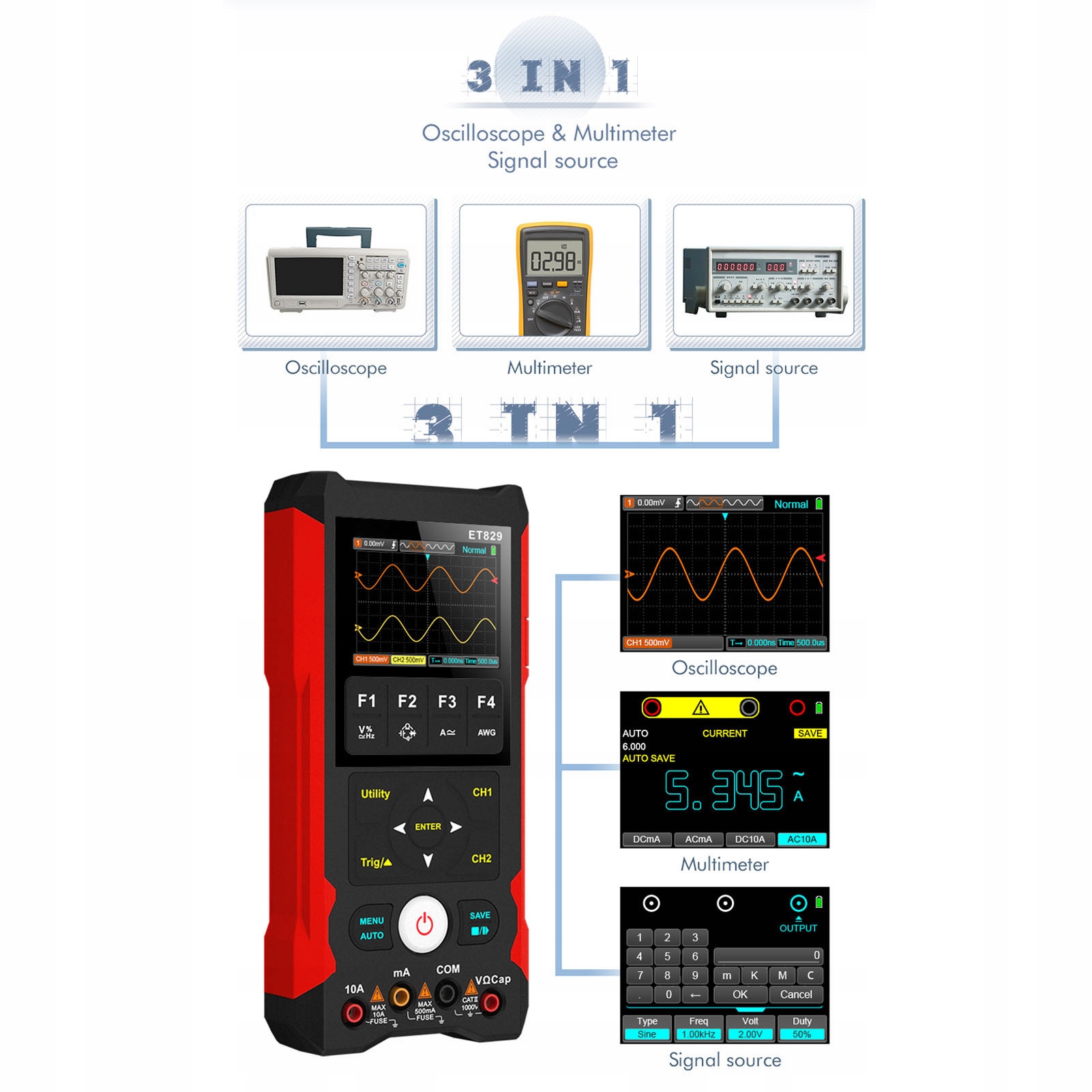

2. Instrument 3 in 1: mobile and compact design, 3 in 1 the use of oscilloscope, digital multimeter and signal generator. 3,8 inch color LCD display with high resolution and high contrast, suitable for outdoor use.

3. Strong power: very low power consumption of 3 W. It is powered by a lithium battery with a capacity of 4000 mAh. The supplied lithium batteries may not be fully charged. It takes up to 4,5 hours to fully charge the battery when the device is turned off or the charging indicator. After charging, the battery can power for about 10 hours.

4. Oscilloscope: The manual oscilloscope has two acquisition modes, high refresh rate, depth storage, automatic measurement, cursor measurement and save functions.

5. Waveform generator: 80 MHz digital oscilloscope with 2-channel sampling rate of 200 Msps. Mileage amplitude range 5Vpp, 3Vpp, 2Vpp, 1Vpp, 500mVpp, 200mVpp, 100mVpp, 0Vpp. The maximum length of a single channel is 6K, and the maximum length of a two-channel is 3K. 8-bit vertical resolution and 1MΩ input impedance.

. Multimeter oscilloscope 3 in 1 80MHz 2-channel

. Multimeter oscilloscope 3 in 1 80MHz 2-channel

Specification: Item Type: Oscilloscope Multimeter

Screen: 320 x 240 resolution, TFT color screen 2,8 inch, 58 x 45 mm / 2,28 x 1,77 inch (approximately).

Backlight Brightness: Adjustable

Backlight time: 30s~120s, adjustable, and the screen will turn off automatically when there is no operation.

Battery: 2 x 18650 2000 mAh lithium-ion battery, supplied with built-in battery.

Automatic shutdown: 15min~60min, adjustable, automatic shutdown in case of no operation.

Charging Interface: Type C

Handling time: about 10 hours

Data recording: Save 2000 DMM data and 200 OSC waveforms.

Digital Memory Oscilloscope Features:

Analog bandwidth: 80 MHz

Maximum real-time sampling rate: 200Msps

Vertical direction: 8 bits

Horizontal square: ± 1 bit

Channels: 2 channels

Coupling mode: DC, AC, GND

Input Impedance: about 1M Ω

Index: 4,0 vertical, 6,0 horizontal.

Vertical sensitivity range: BNC input, 10mV/dz~10V/dz

Time Base Range: 5ns/div ~ 50s/div, 1-2-5 steps

Vertical wave amplitude accuracy: ± (5% 0,2 plots)

Time Base Accuracy: ± (0.01 0.1div)

Automatic 0 Reference: DC measurement

Scanning mode: automatic, normal, single.

Trigger level: ± 4 plots, 0,04 plots per level.

Trigger inclination selection: up, down, double.

Trigger position adjustment: ± 4 div, 0,04 div per degree.

Automatic setting: Automatically set the time base and vertical amplitude.

Cursor measurement function: ΔV, ΔT.

Optional bandwidth limitation: 20 MHz, typically.

Voltage measurement parameters: Vp-p, Vp, Vmax, Vmin, Vavg, Vrms

Timing parameters: Frequency, period, width, - width, duty cycle, - duty cycle.

Automatic measurement accuracy: ± (5% 0,2 plots)

Record length: 6K for single channel and 3K for two channels.

Signal Source Features:

Wave Frequency:

Positive wave: 1 Hz-5 MHz

Square wave: 10 Hz ~ 1 MHz

Triangular wave: 10 Hz ~ 1 MHz

Waveform amplitude: 5Vpp, 3Vpp, 2Vpp, 1Vpp, 500mVpp, 200mVpp, 100mVpp, 0Vpp

. Multimeter oscilloscope 3 in 1 80MHz 2-channel

. Multimeter oscilloscope 3 in 1 80MHz 2-channel

Package List:1 x Oscilloscope Multimeter

1 x Storage Bag

1 x Charging Cable

2 x User Manual

4 x Probe

1 x special screwdriver

8 x plastic ring

2 x yellow cover
