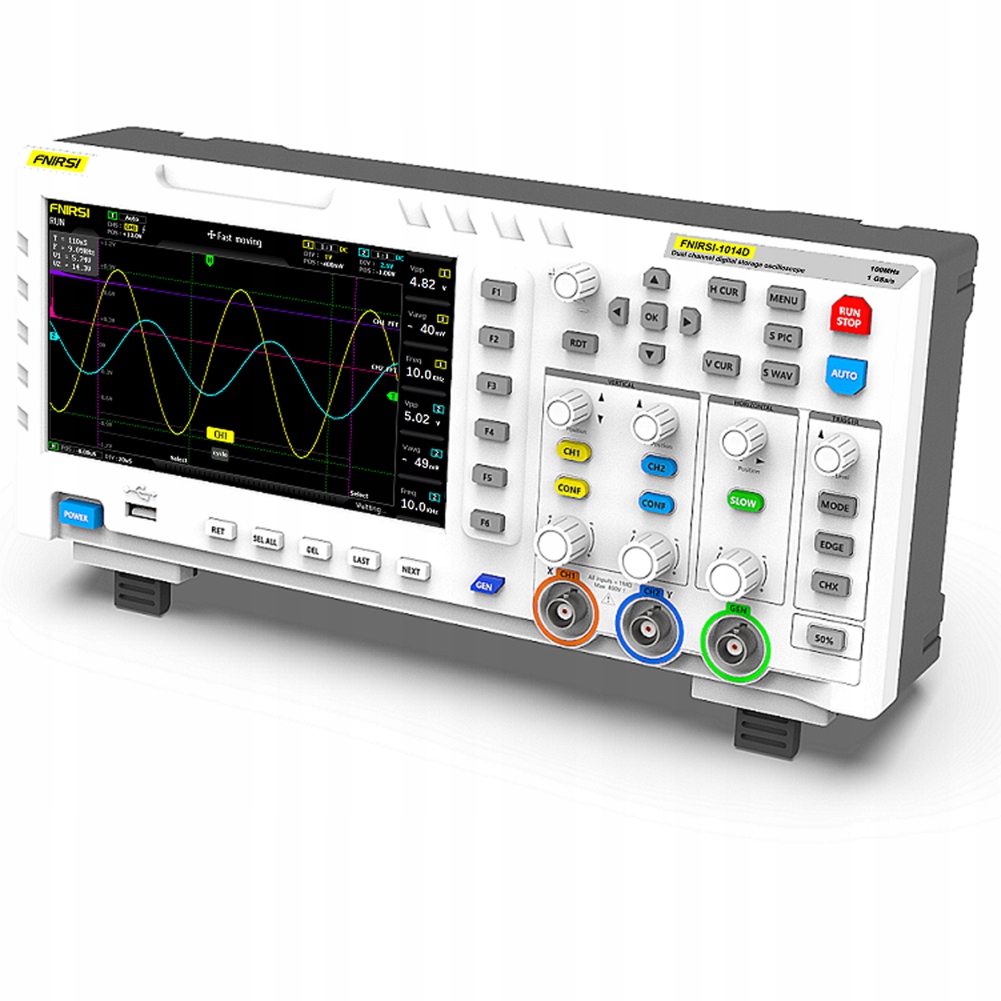

GHFHTRY45645 1014D oscilloscope

OSCILLOSCOPE 7 inches 100MHz DIGITAL

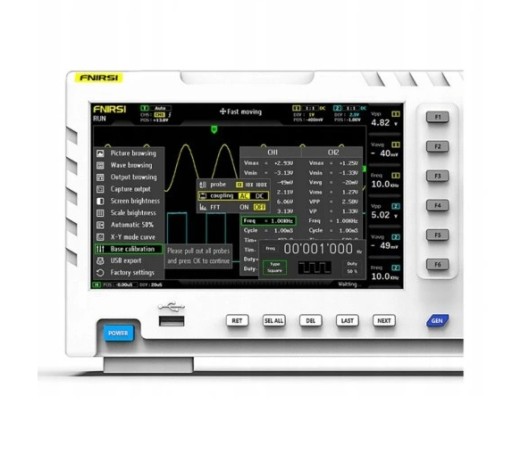

The professional oscilloscope features a 800 x 480 LCD screen with adjustable backlight levels for clear data visibility, while its compact size and lightweight design allows you to easily carry as needed. Oscilloscope and signal generator in one device.

Perfect gift for newborn parents, newborn mother, newborn father, baby shower, birthday, Christmas, festival and so on.

• LCD screen 7 inch
• Built-in DDS signal generator
• bandwidth 100MHz * 2 ana-log and frequency 1GSa/s (1X = 5MHz, 10X = 100MHz).
• 4 signal speeds output wa-ve: 1kHz,10KHz,100KHz,1MHz.
• 12 types of parameter measurement: Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T ,T-. Du , Du-.
• 3 scanning modes: auto, normal and single,
• 12 kinds of test data, can store 1000 measurements
• equipped with high performance one button AUTO, and one button storage mileage and screenshot function.
• cursor measurement function: it is convenient to manually measure the period, frequency and voltage.

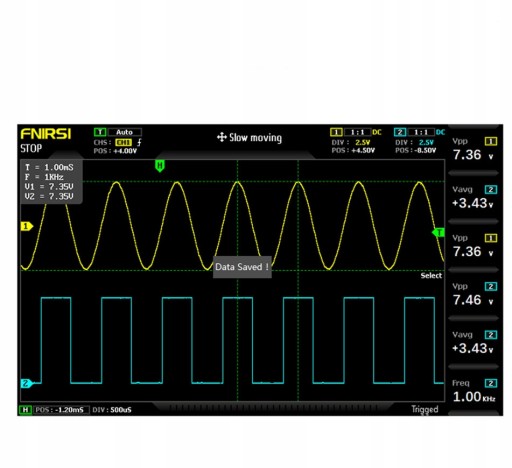

• The graphic display function can be used to determine the amplitude, frequency and phase contrast of two groups of signals.
• FFT display function, can analyze signal spectral characteristics, memory compression technology.

For both home and professional use. Comprehensive functions and high practicality of the device.

Technical data:

• Material: ABS
• Ana-log bandwidth: 100MHz * 2
• Number of channels: 2 channels
• Maximum real-time sampling rate: 1GSa/s
• Vertical sensitivity: 50 mV/div ~ 500 V/div
• Levels of time base range: 50S/div ~ 10nS/div
• Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
• Depth of storage: 240Kbit
• Input resistance: 1MΩ
• ADC accuracy: 8 bits
• Coupling mode: AC/DC
• Trigger mode: single, normal, automatic
• Trigger edge: rscattering edge/falling edge
• External trigger voltage 0~40V
• Expansion ports: USB image export
• Package weight: 1500g

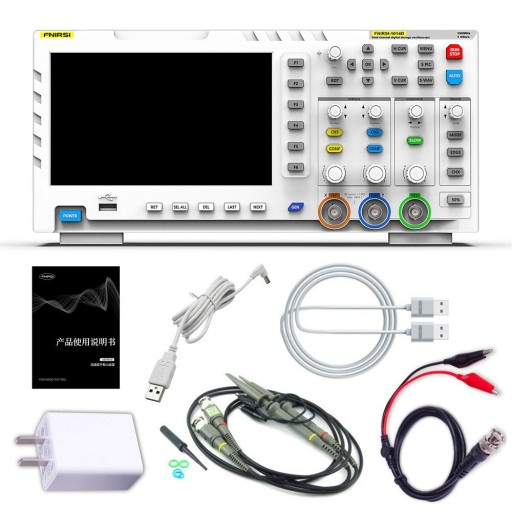

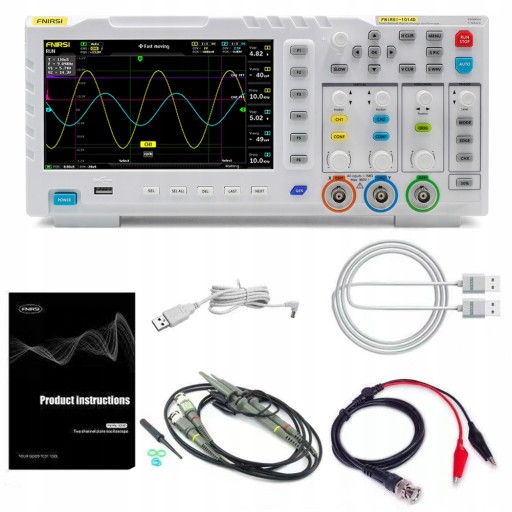

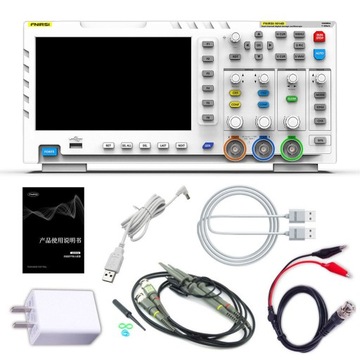

The set includes:

• 1 x Oscilloscope
• 2 x Probe
• 1 x User Manual
• 1 x USB cable
