TS-DBPW-134-2Q Головка уровнемера VU DB z

Feature:1. With 2 VU meters and 1 control board, simple connected wiring.

2. 1 control board can control 2 VU meters and 3 potentiometers with clear division of operation.

3. With its white backlight function, you can read clearly in low-light environments.

4. Adjust the backlight brightness and rotation range of the indicator, make it easier to record without distortion.

5. Easy to install, suitable for DIY, home audio equipment, audio conversion to car, etc.

. TS-DBPW-134-2Q VU DB level meter head with

Specification: Item Type: VU Meter Kit

Material: ABS PCB

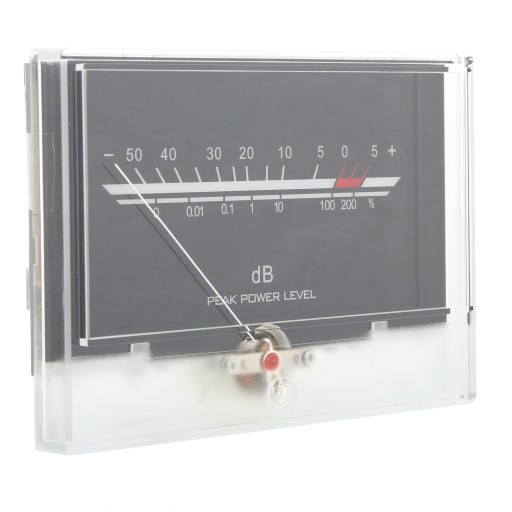

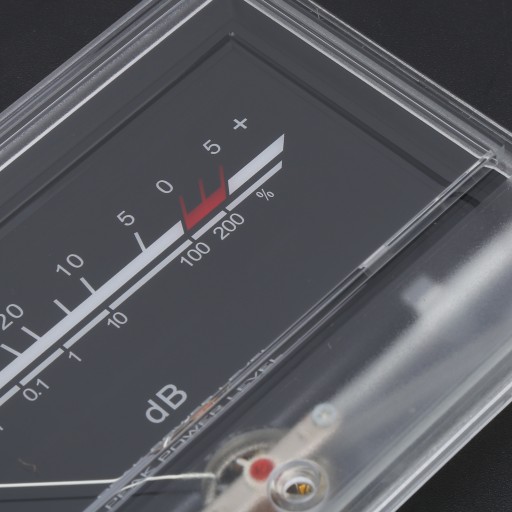

VU meter:

Maximum current sensitivity: 1mA ± 10%

Internal DC Impedance: 100Ω ± 10%

Insulation resistance: 50MΩ

Friction: ±1

Indicator length: 70mm / 2,8 inch ± 1 mm / 0,04 inch (from needle end to shaft center)

Indicator width: 0,45 mm / 0,02 inch ± 0,05 mm / 0,002 inch

Installation Position: Vertical

Backlight Board: 3-3,2V 80mA (White)

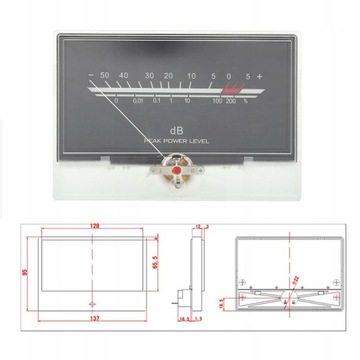

Size: approx. 137 x 95 mm / 5.4 x 3.7 inches

Driver's plate:

Power supply: AC/DC 12-16V ≥5W

Signal Input: ≤0,775 V

Backlight output power: 1,25 V-11 V 50mA

Size: approx. 60x50x25mm / 2,4x2,0x1,0 inch

. TS-DBPW-134-2Q VU DB level meter head with

Package List:2 x VU Meter Head

1 x Control Board

6 x Cable
