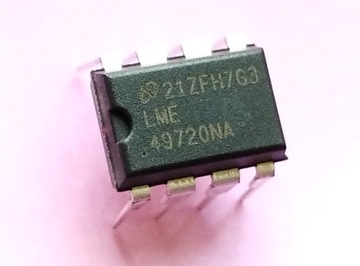

[2 шт.] LME49720NA Двойной высокопроизводительный аудиооперационный усилитель высокой точности DIP8

LME49720NA Dual High Performance  High Fidelity Audio Op Amp DIP8 Texas Instruments

2 sztuki w obudowie DIP8

Features

• Easily Drives 600Ω Loads

• Optimized for Superior Audio Signal Fidelity

• Output Short Circuit Protection

• PSRR and CMRR Exceed 120dB (typ)

• SOIC, PDIP, TO-99 Metal Can Packages

• Key Specifications

– Power Supply Voltage Range: ±2.5 to ±17V

– THD+N (AV = 1, VOUT = 3VRMS, fIN = 1kHz):

– RL = 2kΩ: 0.00003% (typ)

– RL = 600Ω: 0.00003% (typ)

– Input Noise Density: 2.7nV/√Hz (typ)

– Slew Rate: ±20V/μs (typ)

– Gain Bandwidth Product: 55MHz (typ)

– Open Loop Gain (RL = 600Ω): 140dB (typ)

– Input Bias Current: 10nA (typ)

– Input Offset Voltage: 0.1mV (typ)

– DC Gain Linearity Error: 0.000009%

Cena podana w ofercie dotyczy  2 wzmacniaczy

Zapraszamy do obejrzenia oferty firmy HFO Elektronik na portalu Allegro
