SSL PureDrive Окто

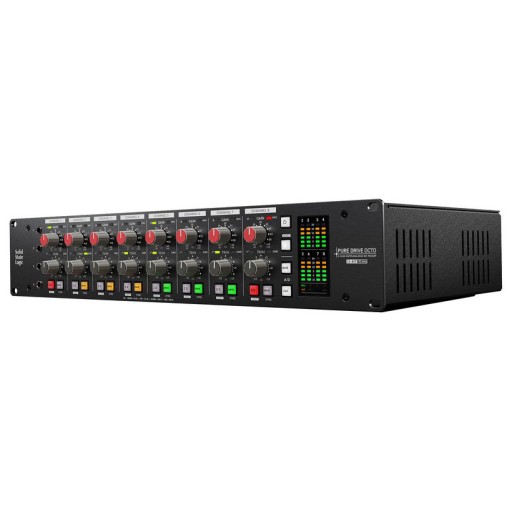

SSL PureDrive Octo

Brand "Solid State Logic (SSL)" | 53246

8-Channel Microphone Preamplifier

• 192 kHz / 32-bit AD/DA converter
• 12 x 12 USB audio interface
• SuperAnalogue PureDrive microphone preamp technology from the ORIGIN console
• Stepped gain control with up to +65 dB gain
• 31-Stage trim control with precise 1 dB steps
• 3 Modes for each preamp - Clean, Classic-Drive and Asymmetric-Drive
• Mic/Line input switching
• 4 Input impedance options for mic preamps
• +48V phantom power, polarity switching and tunable high-pass filter
• Cascadable via link connection (ADAT)
• Type: 19'' 2 U

Connections

• 8 Combo inputs : XLR / 6.3 mm jack
• Line Input: Sub-D25
• Insert Return: Sub-D25
• 4x Hi-Z / DI instrument input unbalanced
• 4 Line outputs / insert send: Sub-D25
• ADAT input and output
• 8 AES/EBU output: XLR
• Word Clock input and output BNC
• USB
