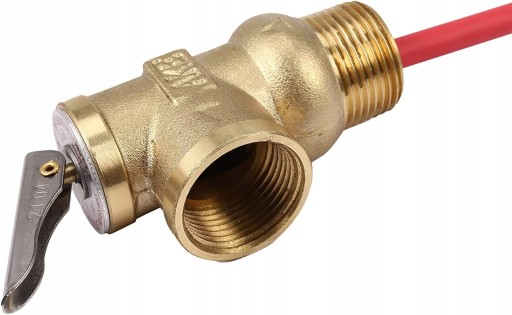

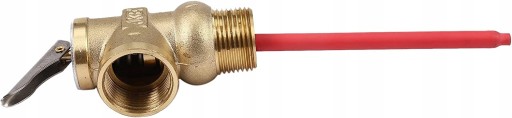

ПРЕДОХРАНИТЕЛЬНЫЙ КЛАПАН WYA-15 4 точки 0.7МПа 7ба

4 points: The outer diameter of the product wire is 20mm, and the inner diameter of the wire is 20mm.

Purpose: Suitable for pressure reducing solar water heaters, gas water heaters, electric water heaters, fuel water heaters, heat pump water heaters and other types of water heaters and air conditioning systems and decompression devices for heating systems. Prevent excessive pressure of the water heater and system.

Basic parameters:

• 1. Leakage setting pressure Mpa: 0.50, 0.60, 0.70, 0.80, 0.85, 0.9, 1.0
• 2. External leakage setting pressure deviation: ±8%
• 3. Internal leakage setting pressure Mpa: 0, 0.2;
• 4. Internal leakage setting pressure deviation: ± 50%
• 5. Check the MPa pressure setting: <0.025Mpa
• 6. The reseat pressure is not less than 80% of the set pressure.

Normal working conditions

1. Maximum working pressure: 1.1MPa;
2. Maximum working temperature: 110℃

style: quarter

Colour: gold

Quantity sent: 1 piece

Structure: spring type

valve standard; custom can be customized

shape ; corner

Applicable medium; water

driving mode ; Electromagnetic

Type (channel location); two-way

Disk opening height; slightly open safety valve

body structure; not closed

pressurized environment; atmospheric pressure;

flow direction; one-way

optional accessories; valve body
