2-контактный адаптер модуля питания для компьютера

24/20-Pin ATX PC Power Desktop Power Module Adapter

Description:

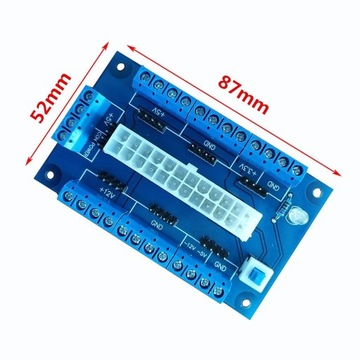

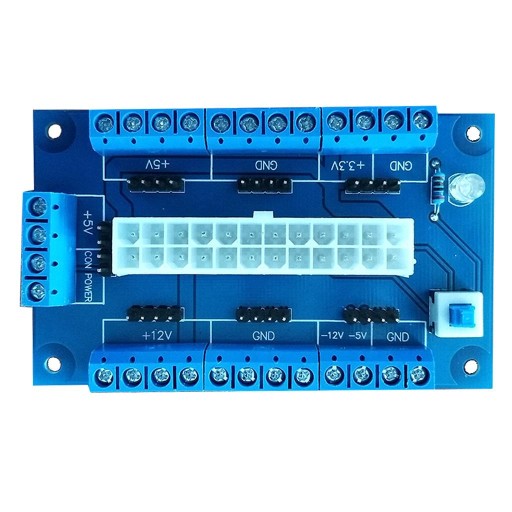

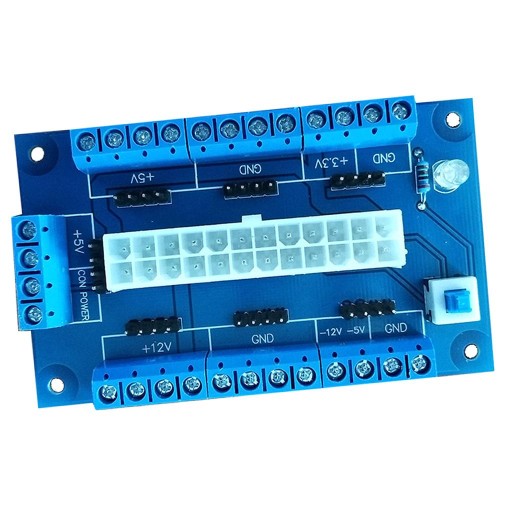

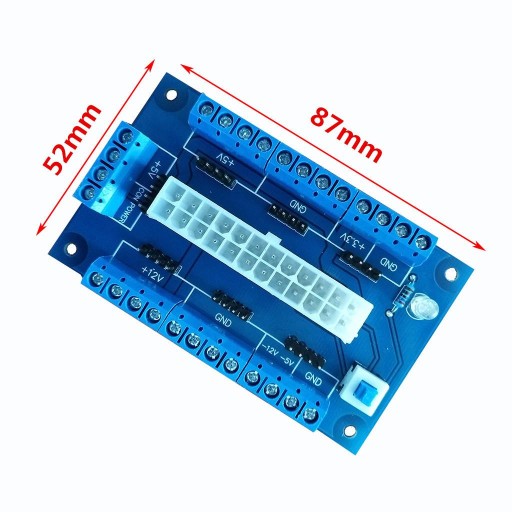

Electronics-Salon 24/20-pins ATX DC Power Supply Breakout Board.

24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.

Power indicator LEDs.

With latching button switch to control power ON/OFF.

High quality 24Amp(per position) screw terminal blocks.

Specification:

- On / off button

- 6 + 5V / 16A connectors

- 10 GND / 16A connectors

- 1 -12V / 16A connector

- 4 + 12V / 16A connectors

- 3 + 3.3V / 16A connectors

- One -5V / 16A connector (-5V does not exist on each PC's power supply and will often disappear, this output will not provide anything if you do not supply this output)

- 2 connector In the case of the "power connector", want to open / close the button remotely (then just connect the two external buttons). This allows you to access the power button even if the adapter is in the arcade panel.

- 1 x 24-pin ATX connector backward compatible with ATX 20-pin

A variety of output methods, out of the terminal line can also choose pin connection

Package Includes:

1 pices ATX Power Board Module Adapter
