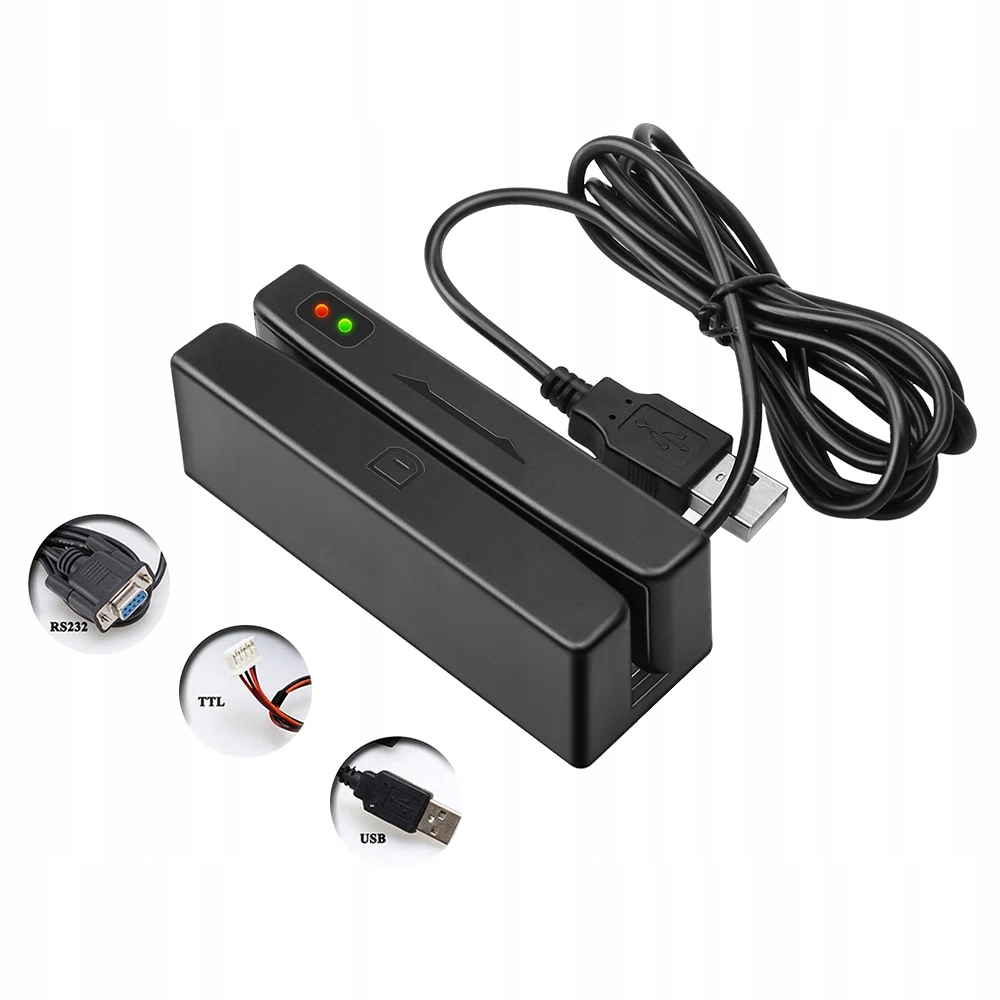

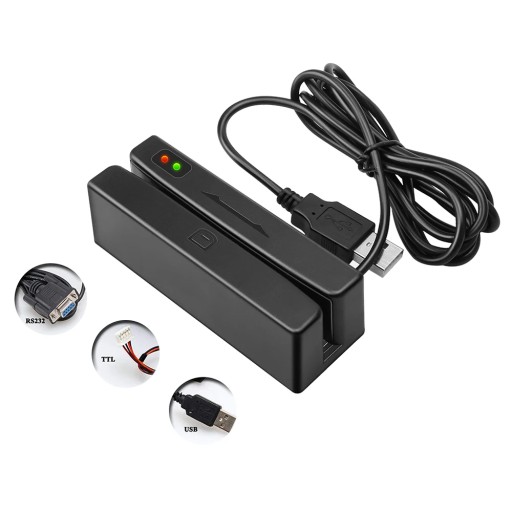

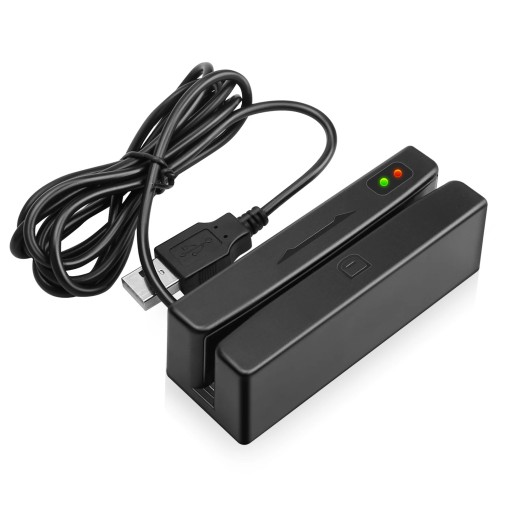

SZiTW Reader MSR98 USB Credit Card Reader 3 All Tracks Hi/Lo Data Collector

Feature

-All 3 tracks can set to 75/210 BPI;

-USB or Serial interface or customized.

MiNi All 3 Tracks Magnetic Stripe Card Reader Specification

Dimension

98mm(L) x 34mm(W) x 30mm(H)

Weight

90g (approx.)

Power Supply

+5V DV ±5%

Power consumption

30mA (max.)

Operation Locus

Indoor use

LED lights

2 pcs

Card Standard

ISO7811/7812

Track Position Recording Density

ISO 1 (IATA)210 BPI

ISO 2 (ABA)75 BPI

ISO 3 (MINTS)210 BPI

Recording Capacity

79 Characters (7bits)

40 Characters (5bits)

107 Characters (5bits)

Interface

Card Thickness

Plastic 0.76 ± 0.08mm

Operation Speed

10 ~ 150cm/sec

500,000 card passes (1 pass : one swipe)

Error Rate

Less than 0.5%  (JSE Test card)

Temperature

Humidity

Storage : 90% non-condensing

Interface

USB, RS232, TTL option

Decoding chip

Made in China
