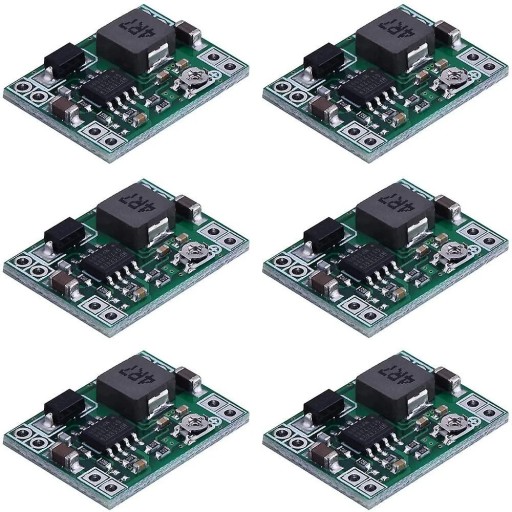

6 шт. Mp1584en DC-DC 4,5-28 В до 0,8-20 В Регулируемый понижающий преобразователь

Wide range of applications: DIY mobile power supply, surveillance power supply, camera power supply, vehicle power supply, communication equipment power supply, etc.

Smaller size and light weight: 22*17*4mm, just like the size of a coin, but it is only 2.7g, much lighter than coin. So it's really a perfect solution for projects that have strict requirements on product volume and weight, such as the aeronautical model.

Input voltage: 4.5V to 28V; Output Voltage: 0.8V to 20V AdjustablePlease note that this is a step-down converter. Used only to lower the voltage, not to increase the voltage, so the output voltage should be lower than the input voltage.

Output Current: 3A(maximum), less than 2.5A and use heat sink for long-term use; Conversion Efficiency: 96% (maximum)

Output Ripple: Less than 30mV;Switching Frequency: 1.5MHz(highest), usually 1MHz; Operating Temperature: -45°C to 85°C

6pcs Mp1584en Dc-dc 4.5-28v To 0.8-20v Adjustable Step-down Converter Supply Voltage Regulator Module 24v To 12v 9v 5v 3v
