Терминал системы ЧПУ, поворотный маховик

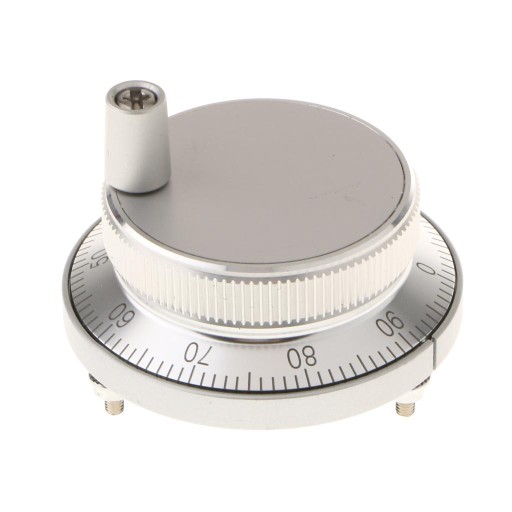

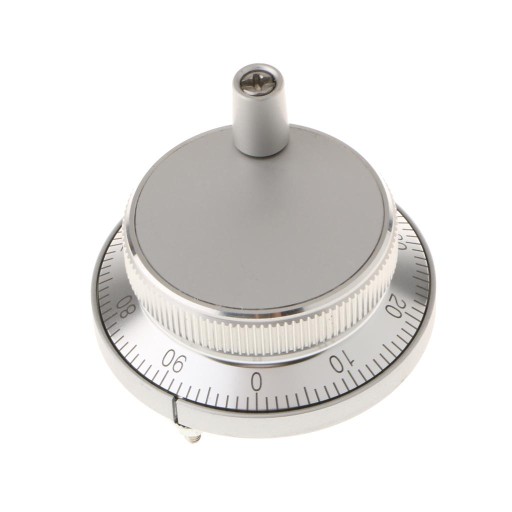

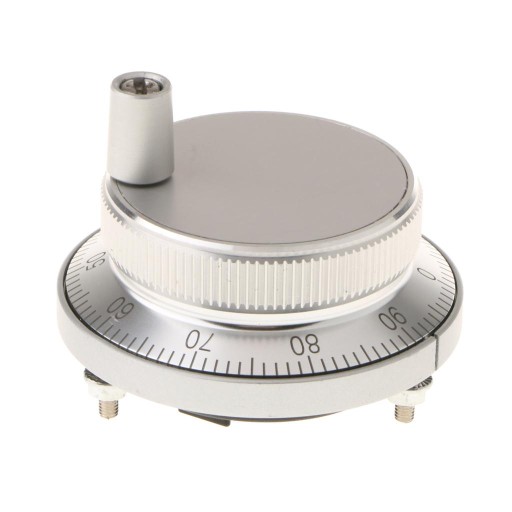

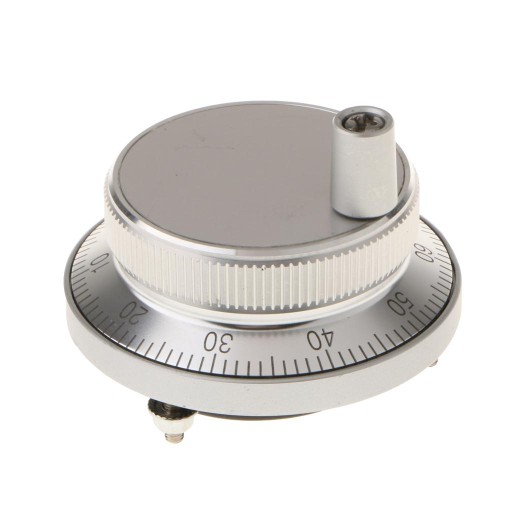

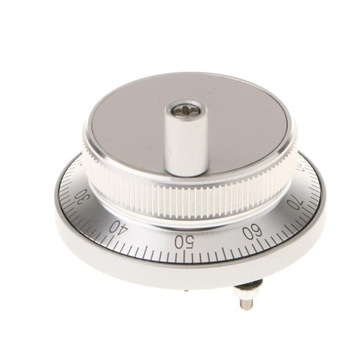

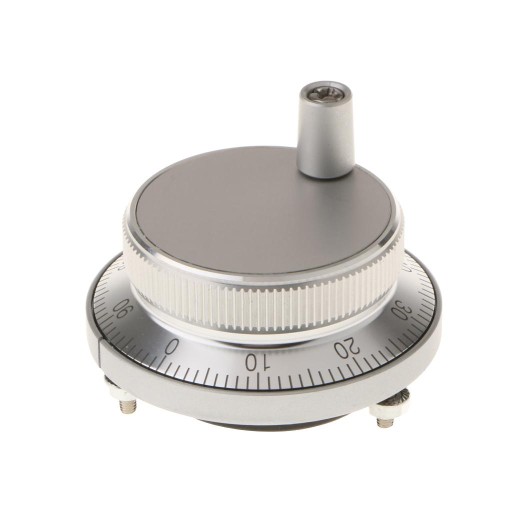

CNC System Terminal Rotary Hand Wheel Manual 5V DC 60mm/2.36"

Description:

Features:

Suitable for manual input type such or Milling machinery

High reliability, terminal connection type

Power supply: 5V DC

Application

Industrial tooling machinery

1. ELECTRICAL SPECIFICATIONS

A). Output wave: Square wave

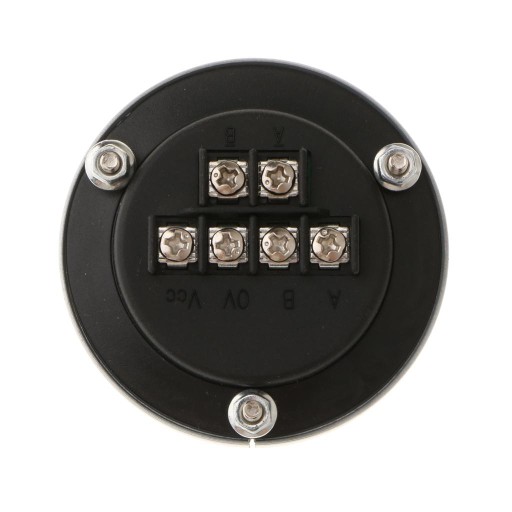

B). Output signals: A, B, (Line driver output A, A, B, B phase)

C). Current consumption: ≤100mA

D). Response Frequency: 0~20KHz

E). Supply voltage: 5V DC

F).Signal leve: LVH≥85%Vcc, VL≤0.3V

G). Number of pulses: 100 (Other number of available on request)

I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage

2. MECHANICAL SPECIFICATIONS

A). Signal position:

B). Speed without sealing: 500rmp

C). Starting without sealing: ≤1.0x 10-2Nm ( 25*C)

D). Shock resistance: 980m/s2, 6ms, 2 times XYZ

E). Vibration : 50m/s2, 10~200Hz, 2 hours XYZ

F). Working life: MTBF≥10000h ( 25*C, 2000rpm)

Size Chart:

Diameter: approx. 60mm/2.36''

Height: approx. 50mm/1.97''

Package Includes:

1 Piece Handle Wheel
