zr-CHIP TUNING MPPS v18 EDC ДИАГНОСТИЧЕСКИЙ ИНСТРУМЕНТ

The moisture meter can quickly measure the moisture content of the grain.

1. Convenient: ECU chip tuning scanner can read or write Micro, Flash and EEprom without using BDM programmer, convenient to use.

2. Practical: A powerful programming tool, provides regular read or write operations and verification support.

3. Strict standard: Built according to quality control standards, professional production, stable performance and high reliability.

4. Automatic detection: Automatically detects ECU and CPU type. There is no need to select from the list, everything is done automatically.

5. Recovery function: The car diagnostic tool can recover ECUs that other tools cannot even communicate with in some cases.

. CHIP TUNING MPPS v18 EDC DIAGNOSTIC TOOL

Specification:

Item Type: Car Diagnostic Tool

Material: ABS

MPPS V18 Features:

Read/write Micro, Flash and EEprom without using the BDM programmer!

Fits John Deere AM103290 tractor

Replacement for Fiat 6F3-full read/write Micro, Flash and EEprom via K-line and CAN.

Replacement Fiat 6JF-full read/write Micro and EEprom via K-line.

Replacement Fiat 8DF-full read/write Micro and EEprom via K-line.

Replacement for Fiat 8F2-full read/write Micro and EEprom via k-line and CAN.

Replacement for Fiat 8F3-full read/write Micro and EEprom via K-line and CAN.

Replacement for Fiat 8GM-full read/write Micro and EEprom by CAN.

Replacement for Fiat 8GS-full read/write Micro and EEprom by CAN.

Replacement for Fiat 5SF3-full read/write Flash and EEprom via CAN.

Replacement for Fiat 5SF3-full read/write EEprom via k-line.

Replacement for Fiat 5SF8-full read/write Flash and EEprom via K-line and CAN.

Replacement for Fiat 5SF9-full read/write Flash and EEprom via CAN.

Replacement for Fiat ME7.9.10-full read/write Micro by CAN.

Replacement for Fiat ME7.6.3-full read/write Micro by CAN.

Replacement for Opel 6O2-full read/write Micro, Flash and EEprom via k-line and CAN.

Replacement for Opel 6O3-full read/write Micro, Flash and EEprom via k-line and CAN.

Replacement for Opel 6JO-full read/write Micro and EEprom via K-line.

This module adds boot mode support for controllers with tricore processor.

. CHIP TUNING MPPS v18 EDC DIAGNOSTIC TOOL

Functions:

Automatically detects ECU and processor type. You do not have to choose from the list, everything is done automatically!

Read/write all Eeprom, Irom, Xrom memory (where possible) Patch function for OBD Flashing ECU TPROT (supports only at the moment) TPROT/DS check function, to test whether TPROT is active without opening the ECU.

Supports Bosch up to TP12

Support for Siemens (current only for ECU without password protection), Support for unlocking Simos PCR and Simos 8.

Checksum correction supported by Bosch MEDC17.

MPPS is a powerful programming tool. It offers general read/write operations and checksum support, but it also includes several additional features:

Excellent recovery features. In some cases, MPPS can recover ECUs that other tools can't even communicate with. On some controllers it works even when there is no program (empty memory).

The ability to select full/partial read and write when the ECU allows this feature.

Possibility to choose read/write speed.

Writing “change only” functions for faster programming (when supported by ECU).

Automatic K-Line/CAN detection and the option to bypass and force preferred means of communication.

Temporary bypass of the immobilizer to allow flashing on the table on ME7 systems.

Boot mode support for ECUs with C167 and ST10 processors.

EEprom read/write functions for some ECUs are included.

MEDC17 Check TPROT level without opening ECU.

. CHIP TUNING MPPS v18 EDC DIAGNOSTIC TOOL

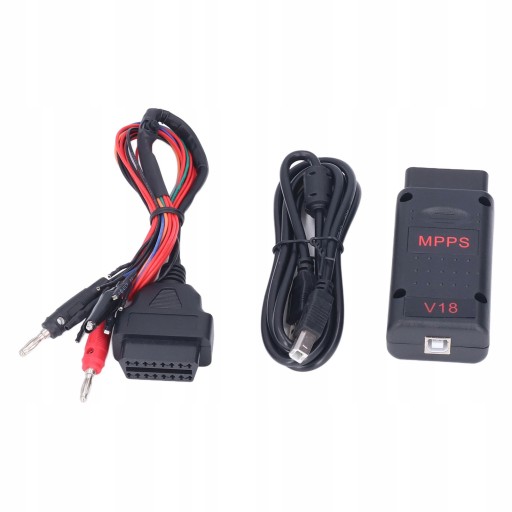

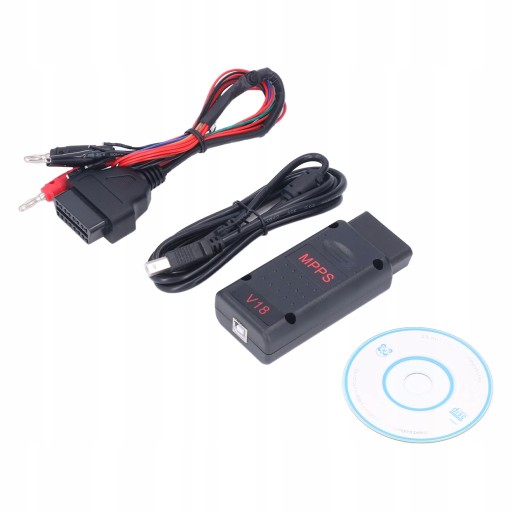

List of packages:

1 x Adapter2 x Wire Harness

1 CD

Insert OBD2 interface for automatic programming.

. CHIP TUNING MPPS v18 EDC DIAGNOSTIC TOOL
