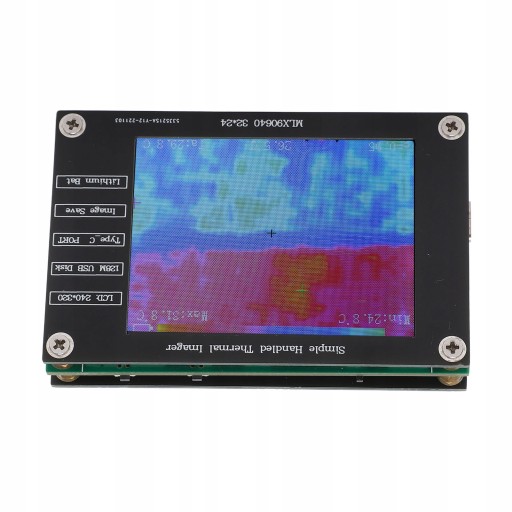

zr-ТЕПЛОВИЗИОННАЯ КАМЕРА РАЗРЕШЕНИЕ 320X240

Function:

1. COMPACT AND PORTABLE: Measuring range -40℃ to 300℃, 8Hz dynamic refresh rate. Small size, easy to carry, integrated design, no external equipment

2. TEMPERATURE DISPLAY: 2.8 inch screen with 320x240 resolution displays and tracks the highest, lowest and middle temperature

3. DURABLE HOUSING: The housing uses FR4 epoxy sheet to better protect the internal components and ensure a long service life

4. CHARGING MODE: Powered by Li-Ion battery, charging via USB C, up to 4 hours of battery life that can be used while charging

5. BUILT-IN STORAGE: Built-in SPI Flash chip, can store 100 photos. Connect a computer or mobile phone with a data cable to view and copy the image file

Specification:

Item Type: Infrared Thermal Imager

Material: epoxy resin board and circuit board

Infrared sensor: for MLX90640ESF-BAB

Hardware resolution: far infrared matrix 32x24 pixels

Screen resolution : 320x240 pixels

Temperature measurement range: -40 ℃ to 300 ℃

Measurement Accuracy: ±2℃

Working temperature: 0 to 50℃

Working Humidity: ≦70%

Refresh rate: 8Hz

Field of view: horizontal 55° x vertical 35

Emissivity: 0.95

Charging Specification: USB Type-C 5V 1A

Battery: Built-in 3.7V 600mAh Li-ion battery

Working time: ≥4 hours

App:

High accuracy non-contact temperature measurement

Security and intrusion detection

Body temperature detection

Intelligent measurement and control of the building's ambient temperature

Car air conditioning control

Microwave and oven temperature detection and control

Temperature monitoring of industrial parts

Visual temperature sensor

Side leakage and maintenance of underfloor heating equipment

Thermal inspection of printed circuit boards and components

Package List:

1 x thermal imager

1 x wiping cloth

1 USB cable

You can use direct boot.
