Ręczny rozruch silnika DC10K Panel sterowania modułu sterującego sterownika

Ręczny rozruch silnika DC10K Panel sterowania modułu sterującego sterownika generatora

Controller DC10K is designed as one of the engine manual start controller.

The Hz,Volt, Battery voltage and accumulation time can be displayed through the front face LED screen. This controller is also with various kinds of stop and alarm indications to monitor the genset status.Besides, it can also connect with PC so that parameters can be set through Computer to equip for more different gensets.

Features:

1. Using 32-bit imported high-performance single-chip control.

2. 4-digit digital display, which can be switched automatically or manually.

3. Durable with a vehicle starter key.

4. With parameter setting function, you can set parameters through computer connection.

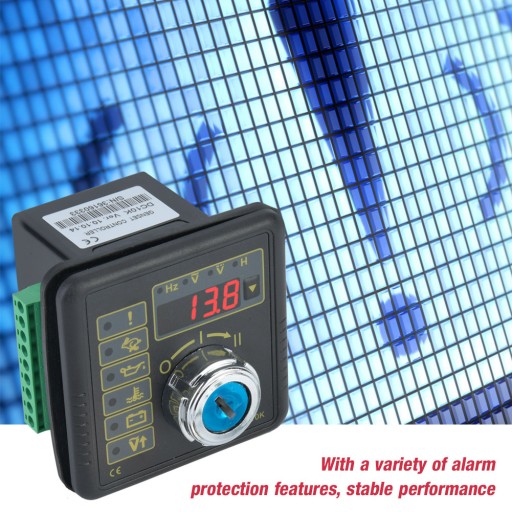

5. With a variety of alarm protection features, stable performance.

6. Standard waterproof ring, the rear panel has waterproof function.

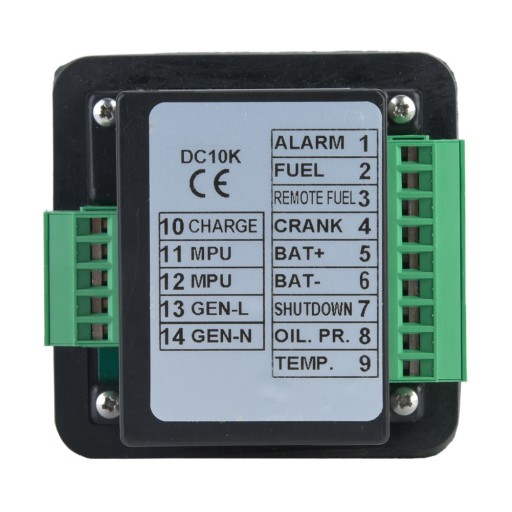

7. All wiring is completed through European-style terminal blocks. It is very easy and convenient to assemble, connect, repair and replace the equipment.

The parameter display:

Generator voltage

Generator frequency

Engine battery voltage

Cumulative running time of the unit

Alarm protection

Speeding

Overclocking

Low oil pressure

High water temperature

External instant parking alarm

Power generation overvoltage

Charging failure warning

Specification:

Condition: 100% Brand New

Item Type: Generator Controller

Power supply: 8-33VDC

Power consumption: MAX 2W

Alternator Voltage input: 15-300VAC, 50/60H

Speed input: Freq 300Hz-10kH

Fuel output: MAX 16

Motor output: MAX 10

Excitation Output: MAX 80m

Alarm output: MAX 16

Operating temperature: -30-75

Storage temperature: -40-85

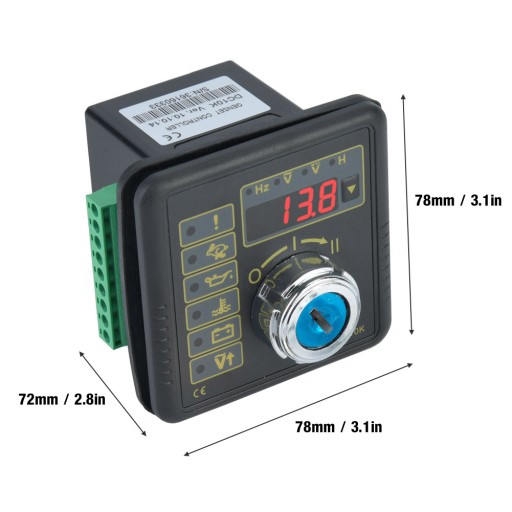

Dimensions: Approx. 78 * 78 * 72mm / 3.1 * 3.1 * 2.8in

Hole Size: Approx. 67 * 67mm / 2.6 * 2.6in

Package List:

1 * Controller

1 * Key

1 * Interface wiring

Note:

1. Please allow slight error due to manual measurement. Thanks for your understanding.

2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

Cechy:

1.Dzięki funkcji ustawiania parametrów można ustawiać parametry poprzez połączenie z komputerem. 2. Korzystanie z 32-bitowego importowanego, wysokowydajnego sterowania jednoukładowego. 3,4-cyfrowy wyświetlacz cyfrowy, który można przełączać automatycznie lub ręcznie. 4. Z różnymi funkcjami ochrony alarmowej, stabilną pracą. 5. Całe okablowanie jest zakończone za pomocą listew zaciskowych w stylu europejskim. Montaż, podłączenie, naprawa i wymiana sprzętu jest bardzo łatwa i wygodna.
