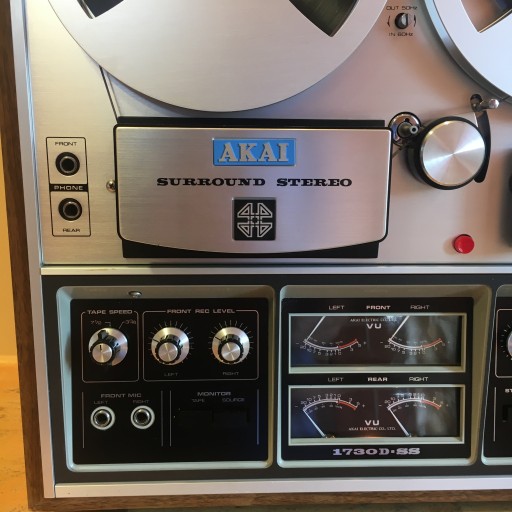

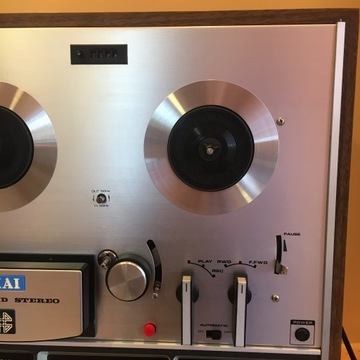

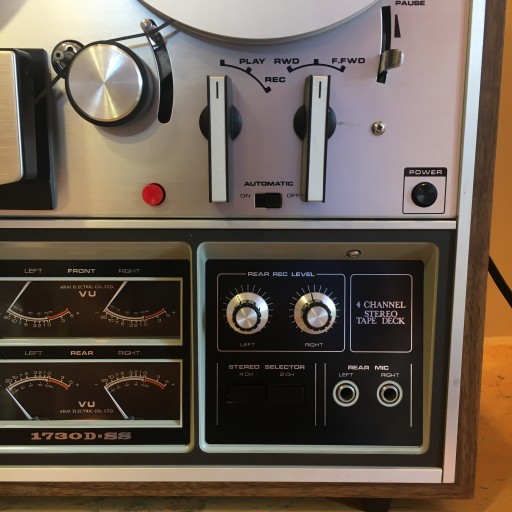

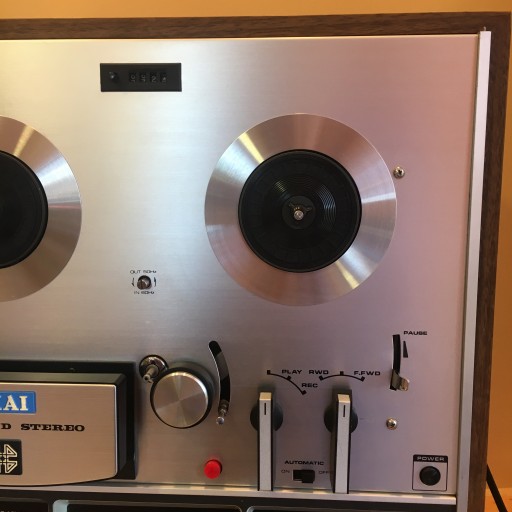

Кассетный магнитофон Akai 1730d сс

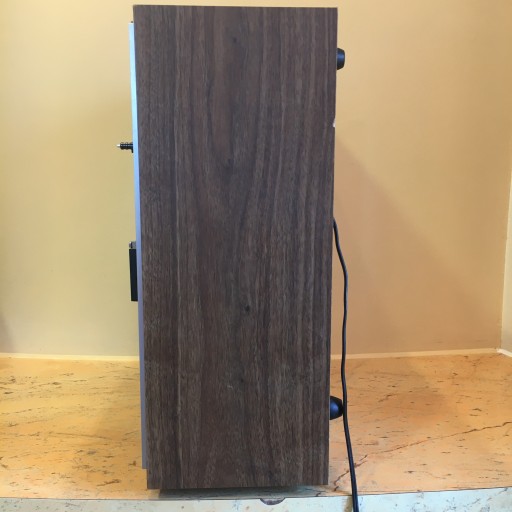

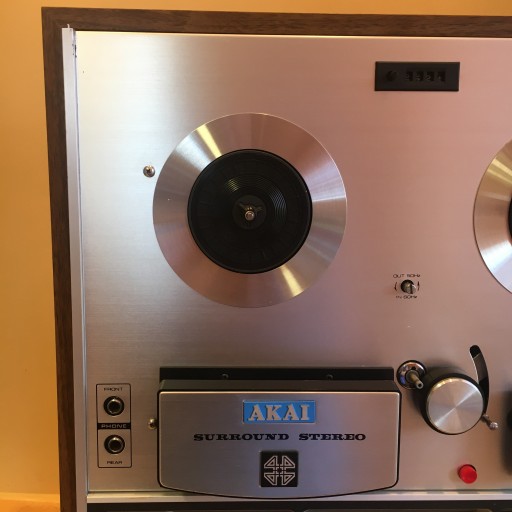

Wszystkie funkcje działają prawidłowo. Stan wizualny widoczny jak na zdjęciach. W dobrym stanie technicznym. Szpule są w zestawie+ pokrywa+ service manual.Wysyłka przez Allegro Kurier Pocztex.

General

• Manufacturer: Akai
• Model: 1730 D-SS
• Type: Quadraphonic reel-to-reel unit
• Years of manufacture: 1973 - 1975
• Made in: Japan

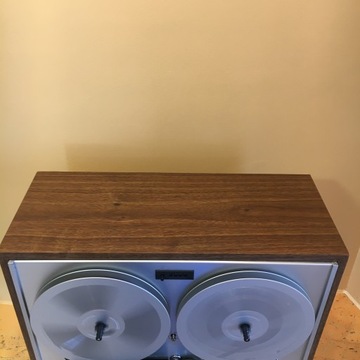

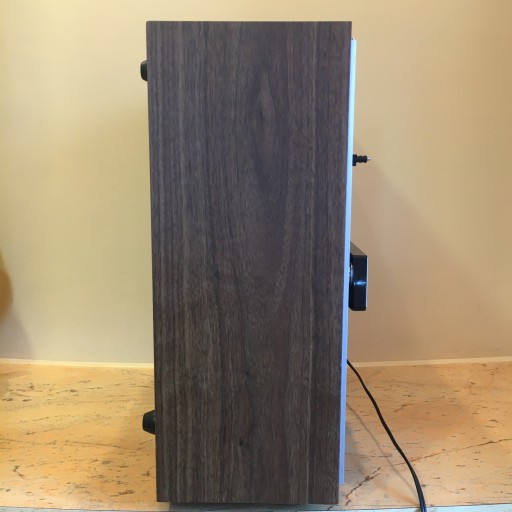

• Color: Front aluminum, housing walnut
• Remote control:
• Power consumption:
• Dimensions: 420 x 450 x 240 mm (WxHxD).
• Weight: 15 kg
• Original price approx.: 1'498 DM

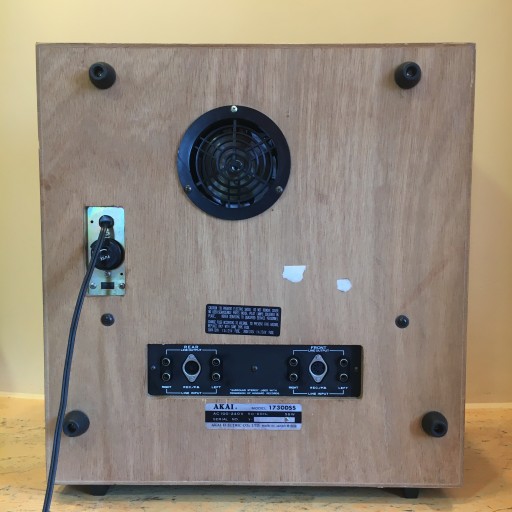

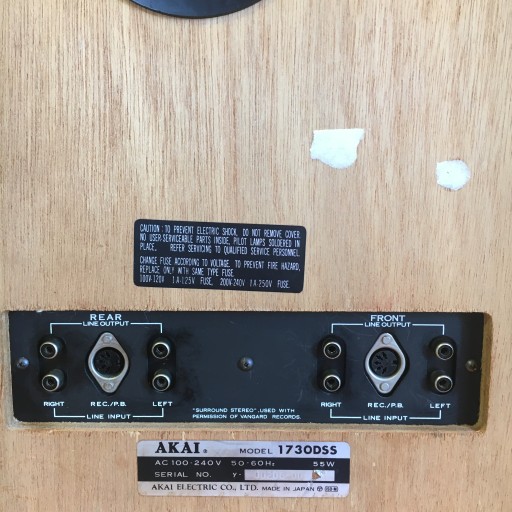

Connections

• Number of inputs:

  4x Microphone: (6.3mm jack) 0.4 mV / 30 kOhm

  4x Line In: 40 mV / 100 kOhm

  4x Line In DIN switchable:

  Low: 0.4 mV

  High: 5 mV

• Number of outputs:

  4x Line Out: 1.23 V / 100 Ohm

  Line Out DIN: 0.775 V / 100 Ohm

  2x headphones 30 mV / 8 Ohm

Technical Data

• Max. coil diameter: 18 cm
• Drive: 1 motor
• Heads: 2 separate 4-channel heads for record / playback, 2x ferrite for erasing
• Tracks: 4
• Tape speeds: 9.5 and 19 cm/s
• Slip:
• Synchronous oscillations:

  at 9.5 cm/s: < 0.15 %.

  at 19 cm/s: < 0.12 %

• Total frequency response:

  at 9.5 cm/s: 30 - 15'000 Hz, ± 3 dB

  at 19 cm/s : 30 - 22'000 Hz, ± 3 dB

• Signal-to-noise ratio: > 50 dB
• Distortion factor:

  at 19 cm/s: < 1.5 %

• Equalization: NAB
• Crosstalk attenuation:
• Premagnetization and erasure frequency: 100 kHz
• Rewind time: 100 seconds for 350 m

Special Features

• Quadro and stereo operation possible
• Rear tape control
• Multiplay
• Four mixable inp
