EATON EASY-BOX-E4-UC1 starter package with EASY-E4

Set EASY-BOX-E4-UC1

Producer: Eaton

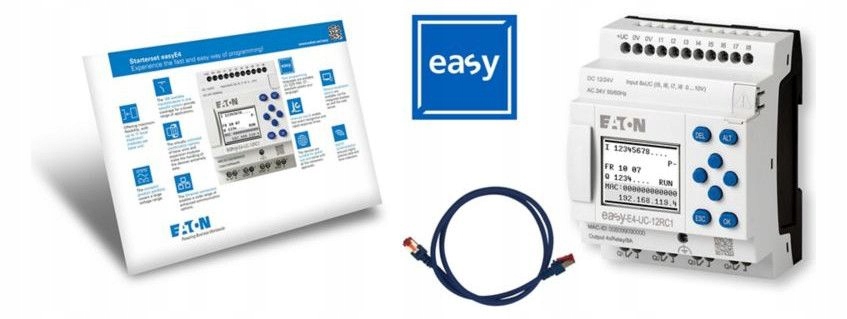

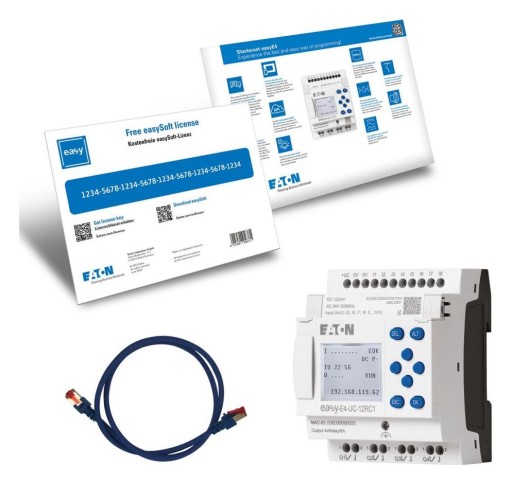

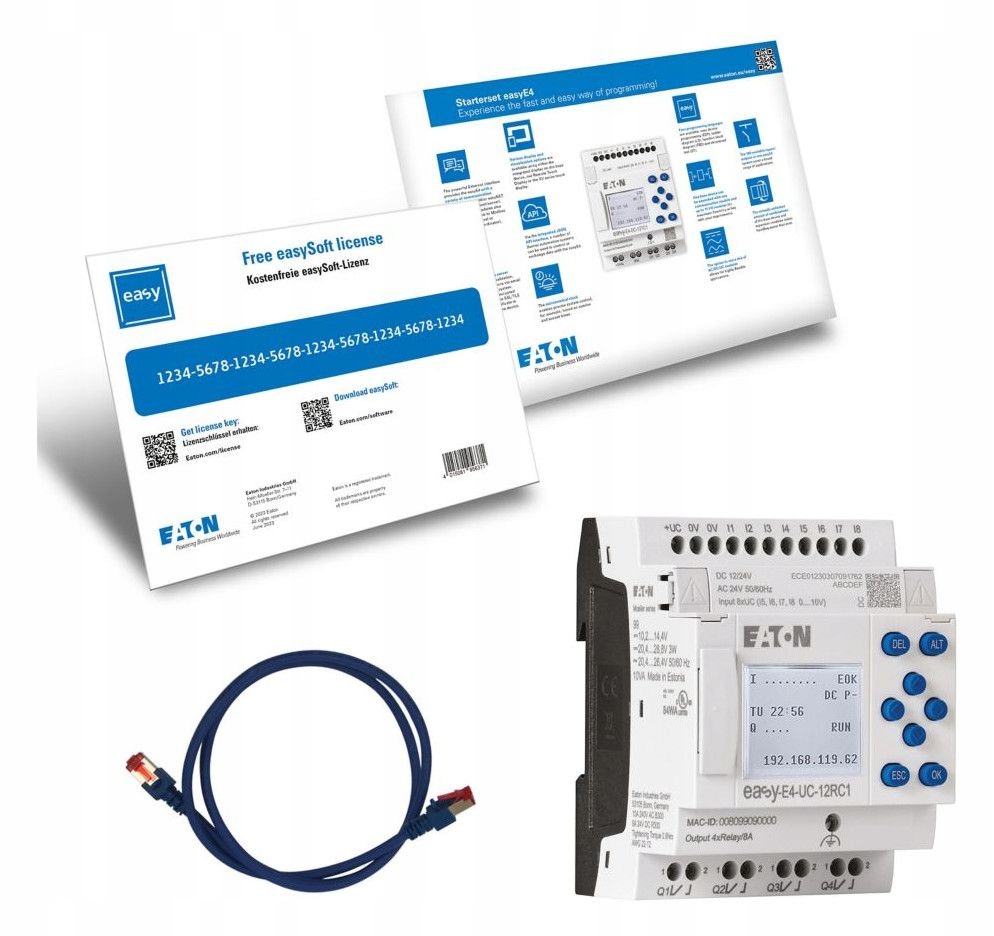

EasyE4 UC, EasySoft7, cable - STARTERKIT As the only one in this class of devices has ST language, and additionally: EDP, LD, FBD, Ethernet as standard, DCF77 support, compatible with easy500,700,800

• For security systems no
• Depth 58 mm
• IO link master no
• Safety category according to EN 954-1 None
• Explosion protection category for gases None
• Explosion protection category for dust None
• Number of wireless hardware interfaces 0
• Number of analog inputs 0
• Number of digital inputs 8
• Number of analog outputs 0
• Number of digital outputs 4
• Number of PROFINET connectors 0
• Number of Industrial Ethernet hardware connectors 1
• Number of other hardware connectors 1
• Number of parallel hardware connectors 0
• Number of hardware connectors RS-232 0
• Number of hardware connectors RS-422 0
• Number of hardware connectors RS-485 0
• Number of serial hardware connectors TTY 0
• Number of USB hardware connectors 0
• Additional module no
• Basic module yes
• Wall mount / direct mount yes
• Possibility of mounting on rail yes
• Possible panel mounting yes
• Power supply voltage for AC 50 Hz 20.4 ... 28.8 V
• Power supply voltage for AC 60 Hz 20.4 ... 28.8 V
• Power supply voltage for DC 12.2 ... 28.8 V
• Support for other protocols no
• Support for ASI protocol not
• Support for AS-Interface Safety at Work protocol no
• CAN protocol support no
• Data-Highway support no
• Support for DeviceNet protocol not
• Support for DeviceNet Safety protocol no
• EtherNet/IP support not
• Foundation Fieldbus protocol support no
• Interbus protocol support no
• Support for INTERBUS-Safety protocol no
• KNX protocol support no
• Support for LON protocol not
• Support MODBUS protocol yes
• Support for PROFIBUS protocol no
• Support for PROFINET CBA protocol not
• Support for PROFINET IO protocol no
• Support for PROFIsafe protocol not
• SafetyBUS p protocol support no
• Sercos protocol support no
• SUCONET support not
• TCP/IP support yes
• Safety level PL according to EN ISO 13849-1 None
• SIL safety level according to IEC 61508 None
• Switching current 8 A
• Redundancy no
• Power supply voltage type AC/DC
• Extensible yes
• Standard Bluetooth wireless communication no
• Standard of GPRS wireless communications no
• Standard GSM wireless communications no
• Standard of wireless communication UMTS no
• Standard wireless WLAN communication 802.11 no
• Degree of protection (IP) IP20
• Width 71.5 mm
• Operating equipment (Ex ia) no
• Operating equipment (Ex ib) no
• Height 90 mm
• With optical interface no
• With relay output yes
• With timer yes
• With display yes
