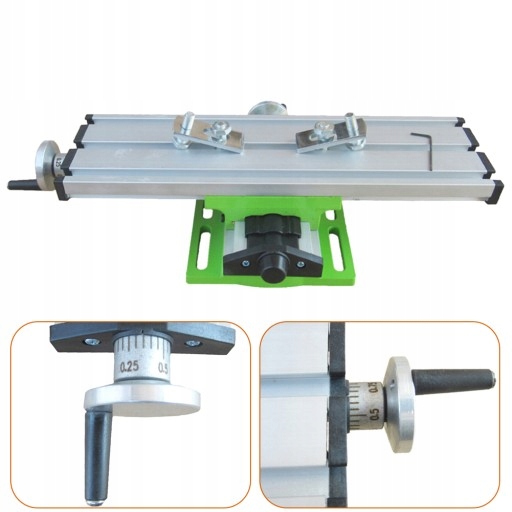

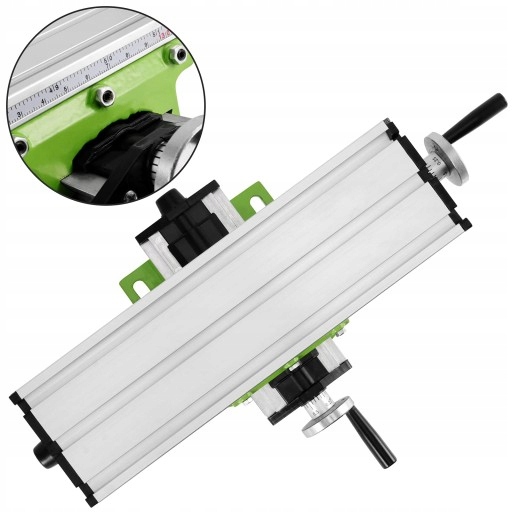

Крестовый стол 310*90 мм, сверлильный стол

The table is suitable for mini drills and drill holders.

It can also be used for other suitable machines.

The work table consists of several adjustable aluminum alloy compositions with a groove in the shape of a swallow tail, it can guarantee minimal space and ensure accuracy.

Work table with three T-grooves.

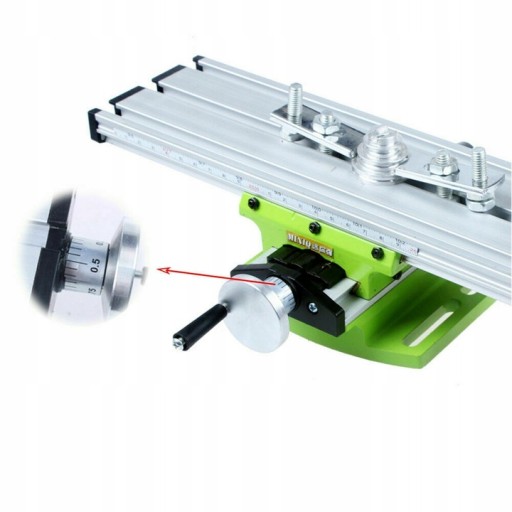

The scale is in front of the moving positioning.

The zero-adjustable hand knob rotates 1,25 mm.

The distance of the X axis is 200 mm, the Y axis is 50 mm.

The dimensions of the working table are 310 x 90mm with two working clamps.

Technical data:

Table Size: 300*85*78mm

X-axis travel: 200mm

Y-axis travel: 50mm

Distance between grooves: 34mm

1 ring = 1,25 mm

1 scale = 0,05 mm

Package Weight: 1657g/3.65lb

Package Size: 350 * 200 * 80 mm / 13,78 * 7,87 * 3,15 inch

Note: please allow 1-10mm size error due to manual measurements, thank you for your understanding!

List of packages:

1 * Mini Multifunction Table

1 * set of accessories
