Многофункциональный генератор сигналов SG-003A, аналоговый технологический калибратор 4–20 мА

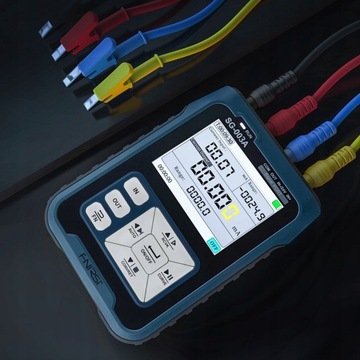

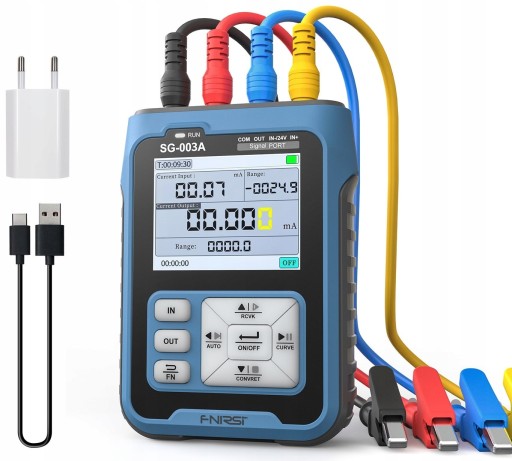

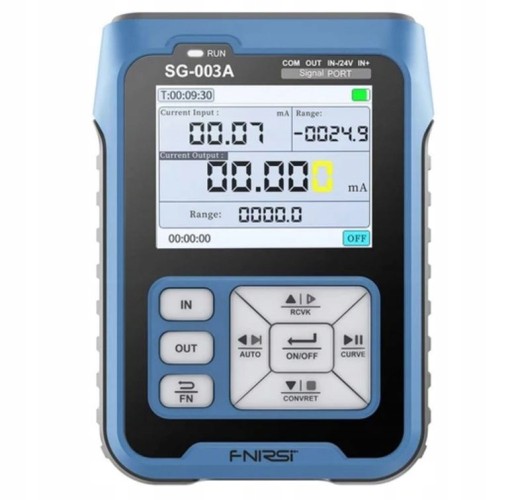

FNIRSI SG-003A multifunctional voltage calibrator

FNIRSI SG-003A multifunctional equipment is specially created for debugging industrial PLCs, testing valves, process instruments, etc.

It is easy to use and has a user-friendly interface.

The calibrator can set active and passive currents to up to 24mA. It also allows you to set up to 12V voltage and PWM signal.

In addition, SG-003A is equipped with a 2.4 inch diagonal color TFT LCD display with a resolution of 240 x 320 pixels, which displays clear and easy to read data.

It is lightweight and convenient, ensuring comfortable use. It is very suitable as a simple calibrator for automation and industrial purposes.

Product features:

1. Compact and portable size - very convenient and handy for daily use

2. The screen displays three parameters simultaneously

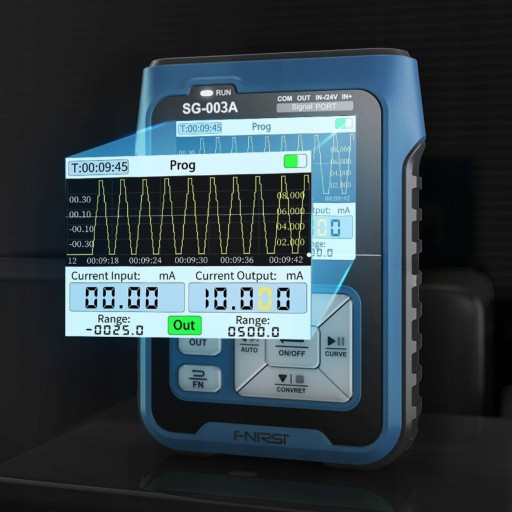

3. It is possible to observe the changes in parameters on the chart

4. It is possible to set the lower and upper limit values of parameters within the measurement range

5. PWM signal generator can be adjusted based on frequency and signal filling

6. It has programmable output, making it easier to measure and simulate

7. Voltage and current measurement frequency is 10 times per second

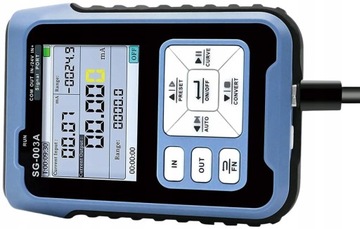

TFT LCD display screen with a resolution of 240x320 and a diagonal of 2.4“

Brightness adjustable illuminated button

8. The silicone sleeve can protect the calibrator from damage when it falls and prevent the device from slipping out of the hand

9. Built in 3000mAh lithium-ion battery - continuous operation for up to 10 hours

10. standby mode - up to 26 hours after fully charged

11. A simple interface allows you to observe the changes in voltage and current over time

12. Maximum power consumption 0.32W

Specifications:

Model: SG-003A

Active current output: 0-24MA, resolution: 0.01mA, maximum load: 750 Ω, accuracy: ± 0.1%+0.005

Passive current output: 0-24MA, resolution: 0.01mA, maximum external power supply 30V, accuracy: ± 0.1%+0.005

Voltage output: 0-12V, resolution: 0.01V, accuracy: ± 0.1%+0.005

Voltage output: 24V, maximum current: 24mA, resolution: 0.01mA, accuracy: ± 0.1%+0.005

Current measurement: 0~24mA, resolution: 0.01mA, accuracy: ± 0.1%+0.005

Voltage measurement: 0-30V, resolution: 0.01V, accuracy: ± 0.1%+0.005

PWM output (frequency): 0-9999Hz

Screen diagonal: 2.4“

Material: ABS+silicone

Battery: 3000mAh

Charging: USB-C

Size: 112 x 82 x 27 (millimeters)

Weight: 165 grams

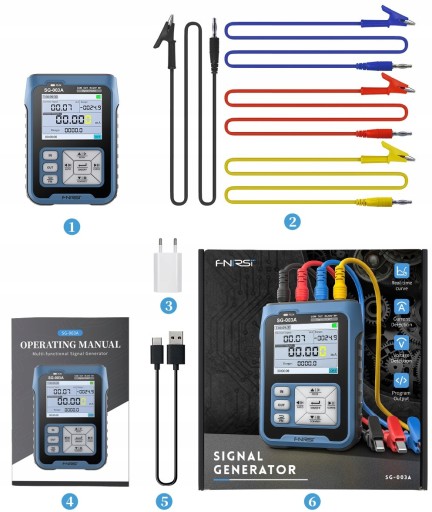

Packaging content:

1x Fnirsi SG-003A calibrator

1 USB charging cable

1 USB adapter

4x test lead, banana plug - crocodile skin
