ИЗМЕРИТЕЛЬ НЕПРЕРЫВНОСТИ ПРОВОДОВ, КАБЕЛЕЙ, ТЕСТЕР ПРОВОДОВ

DUOYI DY25

6V TO 42V CABLE CONTINUITY TESTER

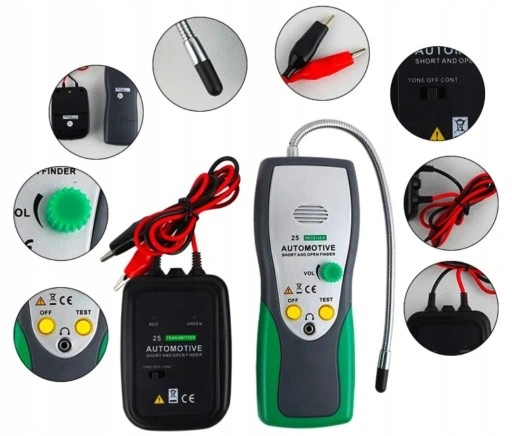

The set includes:

1. Electrical meter - Sender
2. Electrical meter - Recipient
3. Case
4. User manual in English
5. Original packaging

VERY EASY TO USE.

Required in addition to running:

• 2x Battery 9V（Not included）

How to use:

This device is designed to identify and track wires or cables without damaging the insulation

You can also use it to check the short circuit and open the circuit

Wire tracking is possible even inside bundles, behind panels, under carpets, upholstery, etc.

Easy to use: Simply connect the transducer in series to the circuit or cable being tested (i.e. in place of a burnt fuse, on a connector, in series with an open wire, bulb socket, etc. ) and scanning the circuit/wire with a transmitter.

Additional advantages:

• Flexible probe to find easier to reach the fault site
• Internally protected against surges and overloads

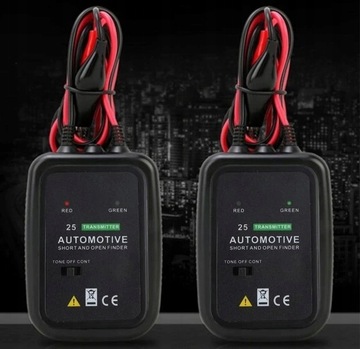

• The transmitter and receiver LEDs show a break or short circuit.
• Adjustable sensitivity for all tracking situations
• No wire piercing required, touchless technology!

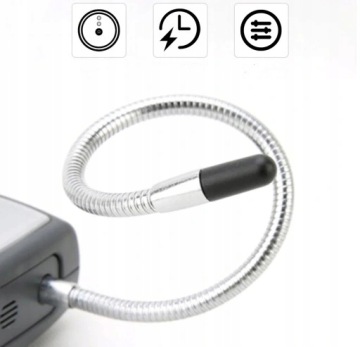

The receiver probe is constructed of spiral steel and can be bent as needed to reach wires in

Depending on the circuit characteristics and sensitivity setting, the probe will receive the signal from the wire to the best extent possible.

The receiver probe tip (black cap) should be positioned perpendicular (at 90') to the tracked wire and or below.

The electric meter is used to identify and track wires in bundles, cables, under panels, upholstery and many other places.

It detects and locates any short circuits and damaged wires. The device allows you to easily take measurements without disturbing the insulation layer.

The meter consists of a transmitter and receiver. The product enables measurement of DC voltage up to 42 V also in electric vehicles. Headphone jack with a diameter of 3,5 mm. Probe with a length of 24,8 cm, allowing free maneuvering of the device.

To measure, it is enough to connect the transducer in series with the tested circuit or wire. The electric meter is equipped with a rotary control knob for volume or measurement sensitivity.
