ECU Power Box FLASH с полными адаптерами для J

ECU Power Box FLASH z pełnymi adapterami do JTAG Works ECU Openport US Plug 100-240V

Dane techniczne:

Item Type: ECU Device Box

Material: ABS Metal

Plug: US Plug

Voltage: 100-240V

It Is Compatible In The Automatic Mode With The Loading Programs which use:

BOOT-OEM12, 12 pin OBD-II;

L-LINE, 15 pin OBD-II.

The Tool Has Built-in Current Limiting Resistors On The Following Signal lines:

RESET

510

;

BOOT

510

;

CNF1

220

.

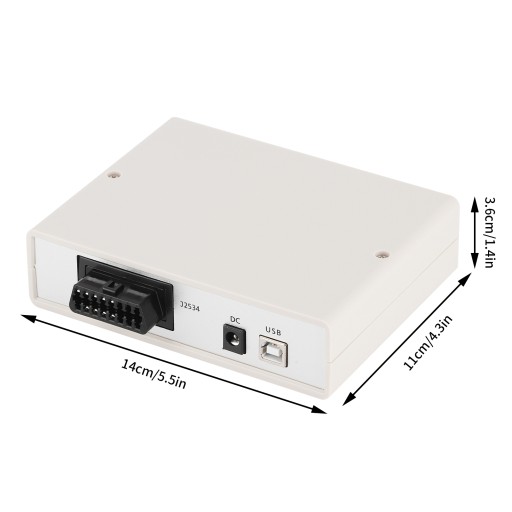

The Tool Is Fitted With Multipurpose Connectors Which Allow To Establish the connections flexibly:

USB:

Designed for connecting to the computer. It is to be connected when the built-in USB

UART converter is enabled;

DC:

Designed for powering the built-in circuit as well as the connected ECU. It is recommended to use only quality units with 12V output voltage. While reading the password, when it is impossible in the vehicle, one must note that high-voltage converters in ECUs consume rather high current at the start which can trigger protection mechanism or even result in the power unit damage;

J2534 (OBD-II-F):

Designed for connecting the same name interface to OBD-II;

DB-15:

Designed for connecting to the main ECU connector. It is recommended to use 14P600KT02, 14P600KT03 cables or analogous ones;

IDC-26:

Designed for connecting directly to the ECU board or via the adapter to the special head. It is recommended to use 14P600KT06 cable or an analogous one for Tricore GPT.

It is recommended to use Flash Development Toolkit software for flashing for Renesas CPUs.

Controls:

The tool has 3 switches for operating in different modes.

POWER:

Power Control. The Tool Has Three Modes Of Power Supply To the ECU: OFF allows to remove all power and control signals from IDC-26 and DB-15 connectors; MANUAL supplies power to VECU and VKEY terminals and to the control outputs depending on the chosen tactics; AUTO, automatic control, in this mode power is controlled by the loading program with L-Line signal (15 pin OBD-II).

BOOT:

Simultaneous Control Of BOOT, RESET And CNF1 Signals (3.3V): OFF, allows to remove all control signals from DB-15 connector; MANUAL pulls RESET and BOOT to the signal minus, and CNF1 to 3.3V; AUTO, automatic control, in this mode BOOT, RESET and CNF1 signals are simultaneously controlled by the loading program (12 pin OBD-II, OEM12).

GPT:

Dor for Renesas and for Tricore with GPT CPUs. It is necessary to use 5V while working with SH705x CPUs, in other cases 3.3V is to be used.

Lights:

LED near the 5V/3.3V switch indicates 5V or 3.3V voltage supply.

VECU, VKEY LED indicates VECU and VKEY voltage supply.

12V LED indicates power voltage.

BOOT LED indicates voltage on CNF1 output (the LED works both for input and output).

Lista pakietów:

1 x skrzynka zasilająca ECU

1 x przewód zasilający

2 x zestaw przewodów

1 x kolorowe naklejki na obwody

Cechy:

1. Profesjonalne narzędzia, bezpośrednio pasujące do pamięci flash JTAG Works ECU Openport J2534. 2. W parametrach znajduje się szczegółowy opis użycia okablowania, co znacznie zmniejsza trudność użytkowania i ułatwia kontrolę. 3. Narzędzie posiada 3 przełączniki umożliwiające pracę w różnych trybach, co ułatwia sterowanie. 4.Przeznaczony do podłączenia do komputera. Należy go podłączyć, gdy włączony jest wbudowany konwerter USB

UART. 5. Zbudowany zgodnie ze ścisłymi standardami kontroli jakości, projekt ulepszony w celu zapewnienia wysokiej jakości i dobrej wydajności.
