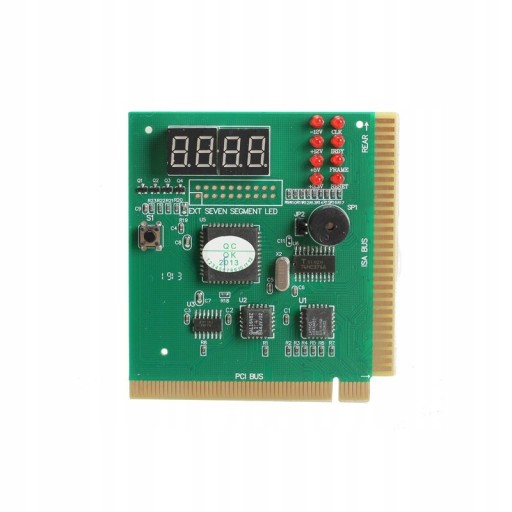

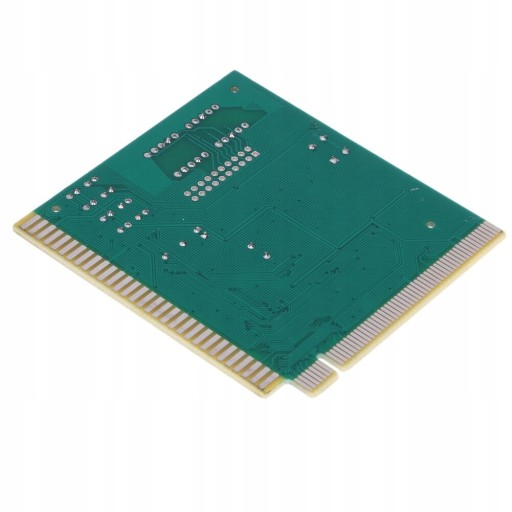

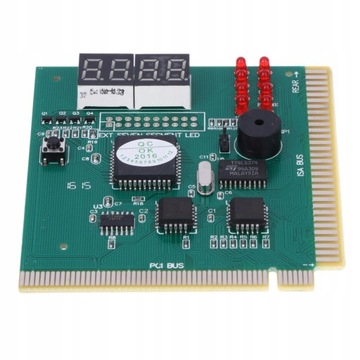

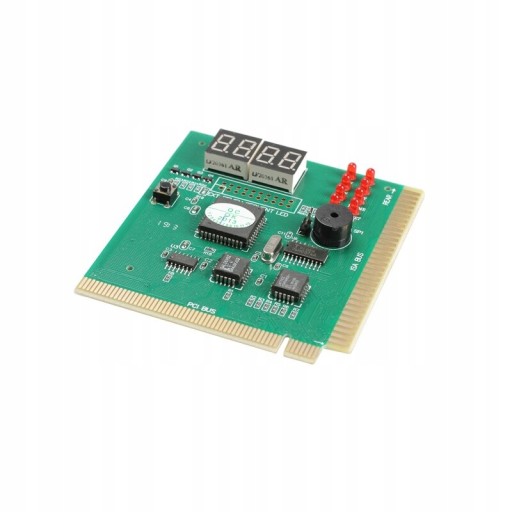

Диагностический пост анализатора ПК с 4-значным ЖК-дисплеем

Brand Name: ipega

➤ Origin: Mainland China

➤ Certification: NONE

➤ Model Number: Main diagnostic card

➤ Package: Yes

100% Brand new and high quality

Both ISA bus and PCI bus are suitable

Determine defects by difference sounds coding with build-in speaker

It can diagnosis the motherboard signal which show the problem of CPU, Memory, video card, etc The POST code display is made up of a dual, dot matrix hexadecimal read-out that display's Power On Self Test (POST) status codes

Support the power source working indicator -- 5V, 12V, 3.3V and 12V (When indicator LED is on to indicate its respective power is fine, otherwise to indicate its respective power is failure.)

Fully compatible with any kind motherboards which has the PCI and ISA bus slot

Self checking remote display function

Dual POST code display - User can readout the POST at PCB component and solder side. It is easy to view the POST code when user plugs the POST card in computer system

Recall previous post codes at the touch of a button

Color: As the picture

Size: Approx. 8.9 x 8.3 x 0.2cm (L*W*H)

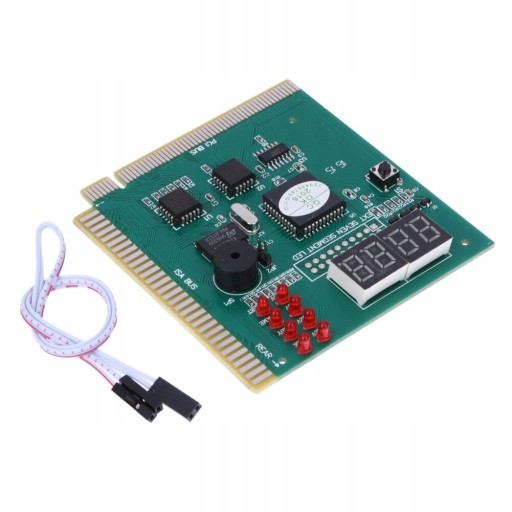

1 x Main diagnostic card

1 x Ribbon cable

1 x English Manual
