Dell R640, 2 x Silver 4110, 64 ГБ, 10-кратная рамка, H740p

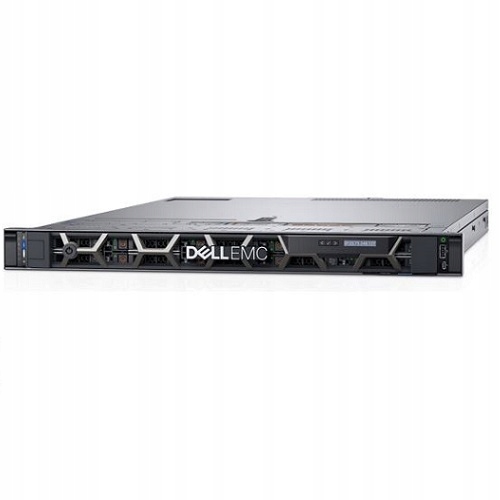

Server Dell R640 10SFF, 2 x Silver 4110, 64GB RAM, PERC H740p, 10 x 2,5" frame, 2 PSU, iDRAC9 Enterprise, rails

from an authorized partner of Dell Technologies

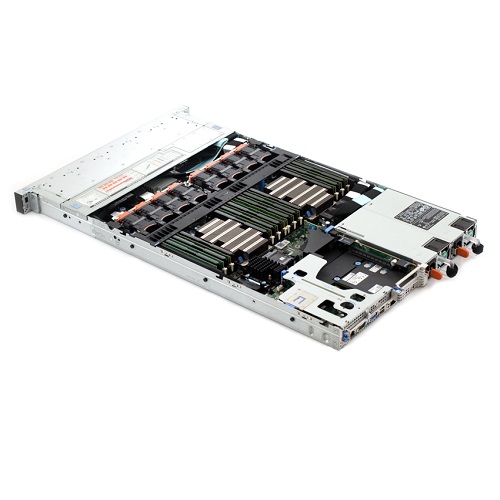

Dell Poweredge R640 is a server in a 1U Rack enclosure, available in various disk variants – it can hold up to 4 3,5″ drives and up to 12 2.5″ drives. Two sockets accommodate Intel Xeon Scalable Gen 1 and 2 processors, and 24 slots on DDR4 ECC RAM allow you to expand up to 3 TB of RAM. SAS, SATA and SSD drives can be used, and in some variants of the enclosure also NVMe U.2. 12Gbps SAS RAID controllers are available. Remote management is carried out via the iDRAC 9 controller, and the continuity of power supply is ensured by two redundant power supplies with power from 495 to 1600 Watt.

CASE:

• R640 10SFF, 3 x PCIe
• Rack 1U for 10 drives 2,5″ HotSwap + 2 SSDs inside the enclosure + 2 M.2 SATA drives
• Holds up to 10 SAS or SATA drives in HotSwap bays (replaceable with NVMe – description below)
• Possibility to install 4 or 8 NVMe U.2 drives using NVMe enablement kit – requires 2 CPUs
• Possibility to install 10 NVMe U.2 drives using NVMe enablement kit and an additional PCIe card
• NVMe drives support S140 integrated controller
• The S140 controller allows you to assume RAID 0, 1, 5, 10 (DELL drives required) on NVME drives or to work in HBA mode (other disk models)
• a) Windows Server 2022 RAID: 0, 1, 5, 10, Non-RAID (Volume), HBA
• b) Windows Server 2025 RAID: HBA only
• c) Linux RAID: 1, HBA
• Possibility to install additional 2 internal SATA SSDs supported by an integrated SATA controller – requires additional set and resignation from PCIe 1 and 2 slots
• Possibility to install BOSS BOOTABLE RAID card with 2 M.2 SATA SSDs
• Front panel
• up to 3TB DDR4
• 24 slots for RAM
• 2 x Socket LGA3647
• Supports up to 2 Intel Xeon Scalable I and II generation processors

PROCESSORS:

• 2 x Intel Xeon Silver 4110
• 8 cores (16 threads)
• 2.1 GHz (3.0 GHz Turbo)
• 11MB cache
• 9.6 GT/s
• TDP 85 Watt

FRAME MEMORY:

• 64GB
• 4 x 16GB DDR4, 2400 MHz

HARD DRIVES:

No hard drives

• Frame Dell 2.5″ 14-15 gene x 10

HARD DRIVE CONTROLLER:

• PERC H740p 8GB mini mono
• SAS 12G, SATA 6G
• 8GB cache with battery backup
• RAID: 0, 1, 5, 6, 10, 50, 60
• Controller installed in dedicated mini mono slot on motherboard, does not occupy PCIe slot

NETWORK CARDS:

Integrated:

• Lack

Daughter card/mezzanine:

• Dell 0R1XFC, Intel I350 Network Daughter Card
• 4 x RJ45 LAN 1Gbps
• Card installed in dedicated Daughter Card slot, does not occupy PCIe slot
• Intel Chipset

REMOTE MANAGEMENT:

• iDRAC 9 Enterprise
• Dedicated LAN port
• License for remote KVM console

PORTS / SLOTS:

• iDRAC, 2 x USB, VGA front, iDRAC, COM, 2 x USB, VGA rear
• 3 x PCIe LP (2 for CPU1, 1 for CPU2)

DIMENSIONS:

• Dimensions and weight:
• Width 48 cm
• Depth 80,85 cm
• Height 4,5 cm
• Weight 22 kg

POWER:

• Two redundant HotPlug power supplies
• 750 Watt

ACCESSORIES

• Dell R420, R620, R430, R630, R640 rails

GUARANTEE:

Post-lease product, thoroughly tested and fully functional. Seller Guarantee – the terms and conditions set out below.

By ordering a server from us, you can be sure that it is a newly built machine. All components have been tested and supported by NBD. By ordering from us, you can be sure that you are buying top-class equipment, assembled by professionals. We can build any configuration and advise on the selection. We offer compatible with this server:

• Processors
• RAM memory
• HDD, SSD and NVMe drives
• Controllers
• Daughter Card and PCIe network cards
• Other expansion cards and accessories
• Legal software

If you have any questions - use the Allegro contact form.
