Carplay Android Автонавигация Мультимедийный плеер Автомобильный плеер

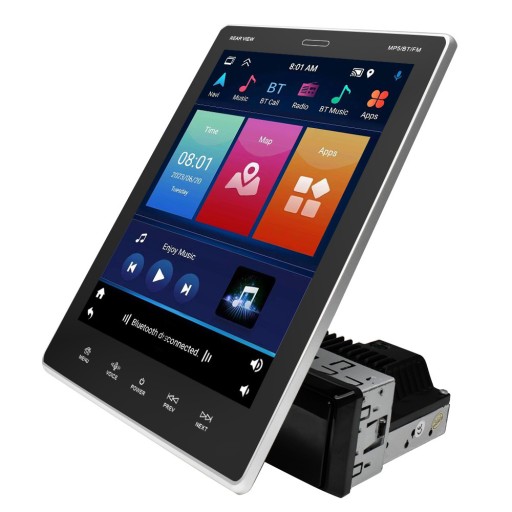

9510A 9.5 inch Carplay Android Auto Navigation Multimedia Player Car Player Reverse Camera Recorder (CE Certificated)

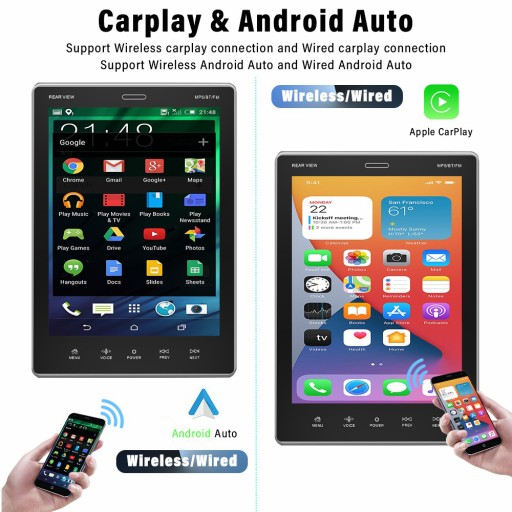

• Enjoy the flexibility of wireless CarPlay, allowing seamless connection to your Apple device for accessing contacts, emails, notifications, maps, music, videos, and more, all controllable via voice commands
• Experience the convenience of wireless Android Auto integration, effortlessly combining your Android phone with the car's infotainment system for navigation, calls, messaging, music playback, and more, all via a simple data cable connection
• The 7-inch large touchscreen features automatic extension and folding, utilizing capacitive touch technology for quick responsiveness without lag

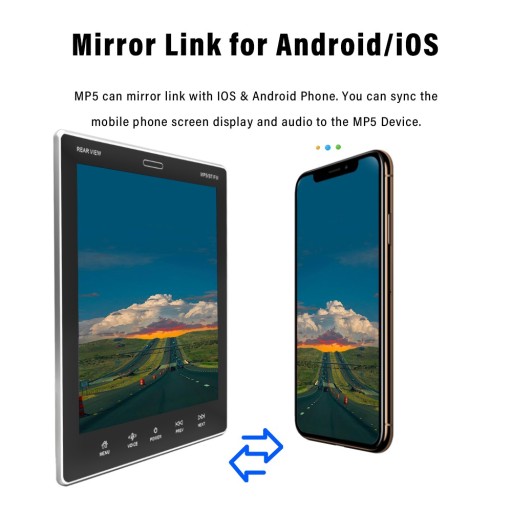

• Mirror Link functionality supports both Android and iPhone devices, allowing screen mirroring via USB connection for seamless integration with the car's display, compatible with iPhone versions 13.4 and Android versions 10.1 or above, with additional support available through manufacturer updates

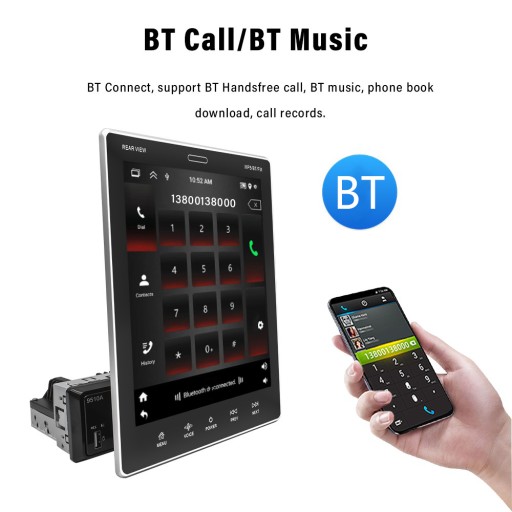

• Integrated Bluetooth enables hands-free calling and music streaming, enhancing safety while driving

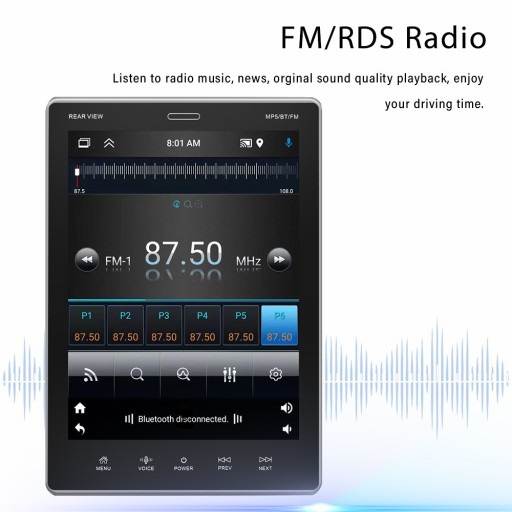

• Tune in to a variety of programming with the FM radio, offering 18 preset channels including real-time traffic updates, news broadcasts, and weather forecasts
• Utilize steering wheel controls for quick and convenient access to essential functions, enhancing driving convenience
• Optional rearview camera input allows for easy integration with compatible cameras, automatically switching the display to rearview details when in reverse (camera selection required)
• The multifunctional USB port supports both music playback and high-current output for charging smartphones, adding versatility to your in-car entertainment and charging options

Specifications:

• Model: 9510A
• Motherboard/version: 8227L/Android 11
• CPU processor: AC8227L Cortex-A7 quad-core processor, clocked at 1.1GHz
• Memory/Storage: 1GB/16GB
• MCU control: IC MS51FB9AE
• PMU power processing: IC MT6323LGA
• GPS/WIFI/Bluetooth: IC MT6625LN 4.0
• FM/RDS radio:  IC MT6625LN
• Power amplifier:  IC 7388
• Display resolution: 768*1024
• Touch screen: G G/2.5D
• Audio input: supports AUX left and right channels
• Serial port: supports 2 channels (1 channel protocol communication, 1 channel external device communication)
• WIFI: support mobile hotspot and wireless WIFI connection
• GPS: SMA interface
• Video input: supports 2 channels (1 channel reversing rear view input, 1 channel AUX video input)
• Audio output: line output 2.1CH
• Video output: support 1 channel
• Front USB: media playback and fast charging
• Square control: support original car square control
• Rear view when reversing: shift into reverse gear and switch to reverse within 2 seconds when the power is on/switch to reverse within 5 seconds when the power is turned off
• Radio frequency: FM: 76.0MHz-108.0MHz/RDS
• Audio formats: MP3, WMA, AAC, RM, FALC etc MP3, WMA, AAC, RM, FALC

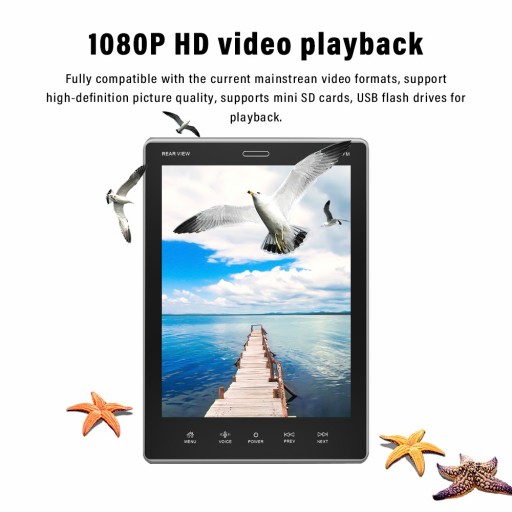

• Video formats: MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, Sorenson SparK, Spark, VP8, AVS Stream
• Photo format: JPG/BMP/JEPG/GIF/PNG
• Mobile Internet: MirrorLink/E-Link
• Other functions: multiple languages/multiple UIs/various startup screens/various EQ sound effects/clock function/power-off memory.
• Voltage: 10-16V
• Output power: 4*45W
• USB voltage: Vcc_3.3V
• Protocol: IEEE802.11B/g/n compatible WLAN
• USB type: USB2.0
• Frequency: 2.4GHz
• Working temperature: -30-80℃
• Adaptable temperature: -35-85℃
• GPS navigation: support
• FM: 76.0MHz-108.0MHz/RDS
• Bluetooth: support
• Voice intelligence: support
• Rear view image input: support
• Supports English/Chinese/Portuguese/Western/Russian/German/Italian/Polish/French/Japanese/Turkish/Czech, etc. The default is English
• Support steering wheel: remote control operation/support APP download
• Support video: RMVB/RM/FLV/3GP/MPEG/DIVX/XVID/DAT/VOB/AVI/MP4 Mobile phone interconnection: MirrorLink/E-Link
• Support audio: MP3/WMA/OGG/APE/AAC/FLAC/WAV

Package included:

• 1 x Car Multimedia Player
• 1 x Power Cable
• 1 x RCA Input/Output Cord Set
• 1 x USB Cable
• 1 x GPS Antenna
• 1 x English Manual
• 1 x Installation Kit
• Other items not included
