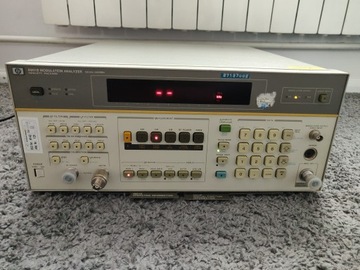

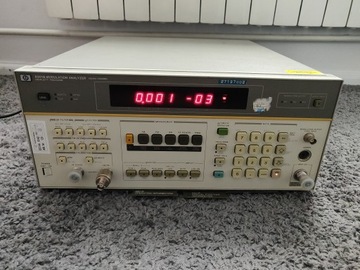

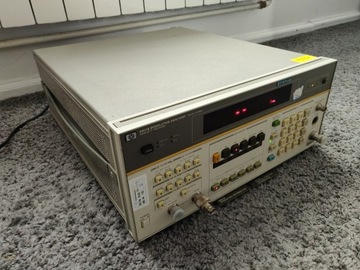

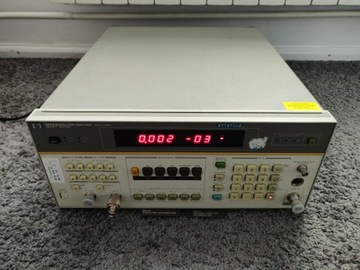

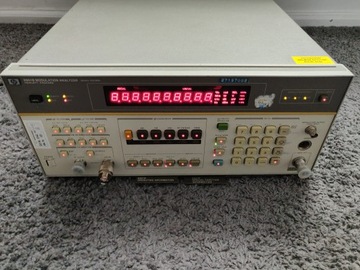

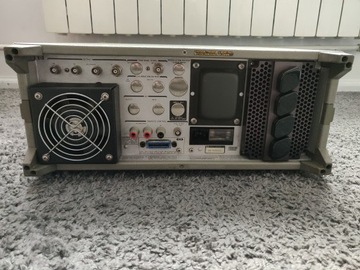

HP/Agilent 8901B Modulation Analyzer

HP / Agilent 8901B Modulation Analyzer

Jest to w pełni profesjonalny sprzęt pochodzący od pierwszego właściciela firmy Cobham SATCOM.

Urządzenia są w pełni sprawne.

Stan wizualny jak na zdjęciach.

P 8901B modulation analyzer combines the capabilities of several RF instruments to give complete, accurate characterization of modulated signals in the 150 kHz to 1300 MHz frequency range.  The instrument will very accurately measure modulation and recover the modulated signal.  It can determine RF frequency and measure RF power.  The major additional capabilities of the 8901B are its improved power meter accuracy, its ability to use external power sensors, to make adjacent channel power measurements, and its ability to count audio frequencies and measure distortion on 400 Hz and 1 kHz signals.  Fully automatic for all major measurements with the push of a key or under HPIB control.

Frequency Modulation

• Accuracy:
• 250 kHz - 10 MHz: ± 2% of reading ± 1 digit, 20 Hz to 10 kHz rates, 250 kHz to 10 MHz
• 10 MHz - 1300 MHz: ± 1% of reading ± 1 digit, 50 Hz to 100 kHz rates, 10 to 1300 MHz
• Demodulated Output Distortion: < 0.1% THD
• AM Rejection (for 50% AM at 400 Hz and 1 kHz rates): < 20 Hz peak deviation measured in a 50 Hz to 3 kHz BW
• Residual FM (50 Hz to 3 kHz): < 8 Hz rms
• Maximum Deviation Resolution: 1 Hz
• Stereo Separation (50 Hz to 15 kHz): > 47 dB typical

Phase Modulation

• Carrier Frequency: 10 to 1300 MHz
• Rates: 200 Hz to 20 kHz; typically usable from 20 Hz to 100 kHz with degraded performance
• Deviation: To 400 radians
• Maximum Deviation Resolution: 0.001 radian
• Accuracy: ± 3% of rading ± 1 digit
• Demodulated Output Distortion: < 0.1% THD
• AM Rejection (for 50% AM at 1 kHz rate): < 0.03 radian peak deviation (50 Hz to 3 kHz BW)

Amplitude Modulation

• Rates: 20 Hz to 100 kHz
• Depth: To 99%
• Accuracy: ± 2% of rading ± 1 digit, 50 Hz to 10 kHz rates, 150 kHz to 10 MHz
• ± 1% of reading ± 1 digit, 50 Hz to 50 kHz rates, 10 to 1300 MHz
• Flatness: ± 0.3 of reading ± 1 digit
• Demodulated Output Distortion: < 0.3% THD
• FM Rejection: < 0.2% AM
• Residual AM: < 0.01% rms
• Maximum Depth Resolution: 0.01%

Frequency Counter

• Range: 150 kHz to 1300 MHz
• Accuracy: ± 3 counts of least significant digit ± reference accuracy
• Frequency: 10 MHz
• Maximum Resolution: 10 Hz

RF Level (True RMS)

• Frequency range with HP 11722A: 100 kHz to 2.6 GHz
• Power range: -20 dBm to +30 dBm
• RF range linearity: ± 0.02 dB, RF ranges 2 - 5
• ± 0.03 dB, RF range 1
• Using front-panel display, add ± 1 count of least-significant digit
• RF range-to-range change error: ± 0.02 dB / RF range change from reference range
• Input SWR: < 1.15, using HP 11722A sensor module
• Zero set: ± 0.07% of full sclae on lowest range Decrese by factor of 10 for each high range
• RF power resolution: 0.1% of full scale in watts or volts mode
• 0.01 in dBm or dB relative mode
• Options: 001: RF connectors on rear panel only
