Контроллер шагового двигателя, ЖК-дисплей, аксессуары для электродвигателей, угол привода

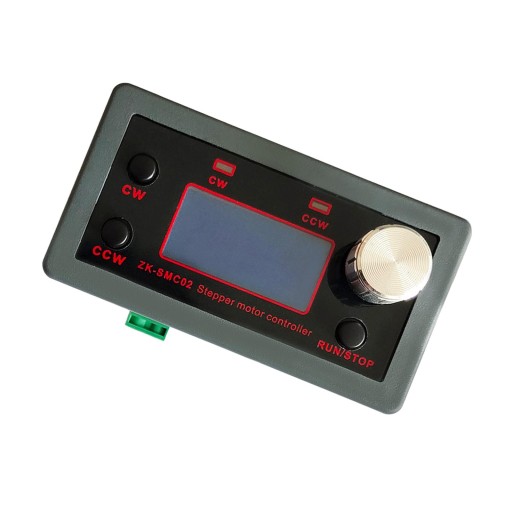

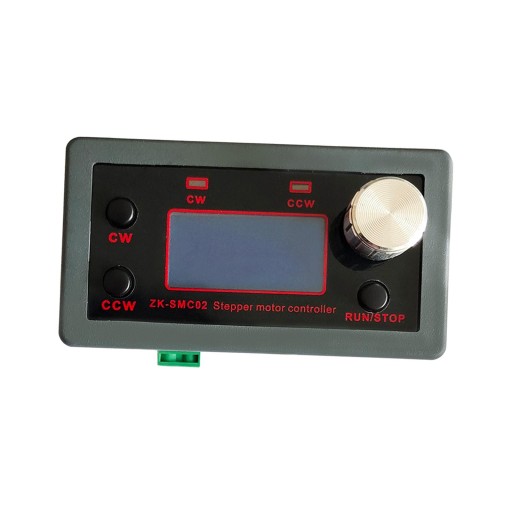

Stepper Motor Drive and Controller Forward Control Drive Integration

Description:

[Controller and ]: Integrated stepper motor controller and . This is a dedicated control module for single axis stepper motors, enabling multiple scenarios and applications.

[Forward and ]: to 30V universal, 4A, TTL serial communication, delay, speed, angle, distance can be adjusted.

[Multiple working modes]: The module has a variety of built in fixed operating modes, so users can quickly select the appropriate motion trajectory. Save and set distance/speed/delay/number of loops. It can be run independently as a module or used in conjunction with other systems.

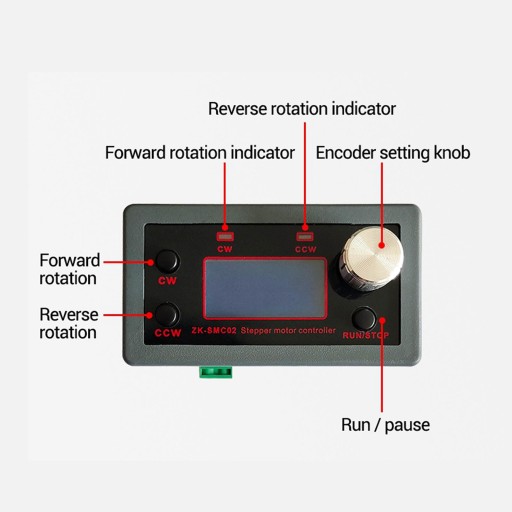

[ LCD Display]: Stepper Motor Drive and Controller has a LCD display for easy browsing of various parameters and high precision control.

[Wide Application]: Stepper Motor Controller can be used in general industrial control situations.

Specification:

Motor : common cathode

Instruction features: streamlined optimization of many commonly used instructions

Speed Up and deceleration control: Yes

Input connection protection: yes

Remote communication control: TTL serial port

Main functions of the system: automatic, manual, settings, serial port control

Number of cycle operations: 1-9999 times

Forward rotation delay time: 0.0-999.9 seconds

delay time: 0.0-999.9 seconds

Segment selection range: 1-128 segments

Product usage environment: - C-60°C (no condensation)

Size Chart:

7.9cmx4.3cmx4.1cm/3.11inchx1.69inchx1.61inch

Package Includes:

1 Stepper Motor Drive and Controller
