7 BAND EQ RCA 12dB DC5V-12V

⭐Function:⭐⏺Control range: 7-band compensatory circuit adjustment range ± 12dB, compensating band: 60HZ, 150HZ, 400HZ, 1KHZ, 3KHZ, 6.5KHZ, 15KHZ, by original TL074 TI or ST composition.

⏺ Basic parameters: amplification of 7-band sound equalizer preamplifier, classic operational amplifier 4580 provides 5x gain (14dB); 20K input impedance, output impedance 600 ohms.

⏺ Compatible with headphones: ear amplifier with sound equalizer, NE5532 part consisting of type 47 headphone driver circuit, easy to drive all types of headphones, adjustable high and low.

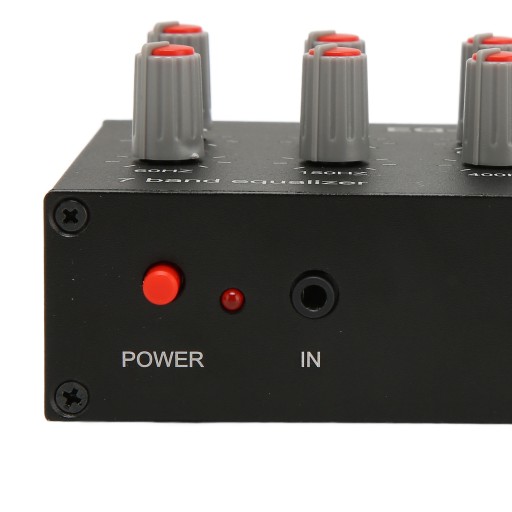

⏺ 3,5mm interface: 3,5mm input interface supports 4-pole plug, the output connects to the headset with microphone, which can be used in mobile phones for normal voice calls, another terminal with lotus group interface is available.

⏺ Aluminum Alloy: The car's 7-band sound equalizer is made of aluminum alloy, high strength, corrosion resistance, stable performance, DC5V-12V power supply, two-channel sound.

. 7-BAND EQ RCA 12dB DC5V-12V SOUND EQUALIZER

Specifications:⏺Article type: 7-band equalizer

⏺Material: aluminum alloy

⏺ Power Supply: DC5V-12V

⏺ Interface Specification: 5,5x2,1

⏺Input Impedance: 20 K

⏺Output Impedance: 600 ohms

⏺Equalizing circuit adjustment range: ±12dB

⏺Alignment frequency band: 60 HZ, 150 HZ, 400 HZ, 1 KHZ, 3 KHZ, 6.5 KHZ, 15 KHZ

. 7-BAND EQ RCA 12dB DC5V-12V SOUND EQUALIZER

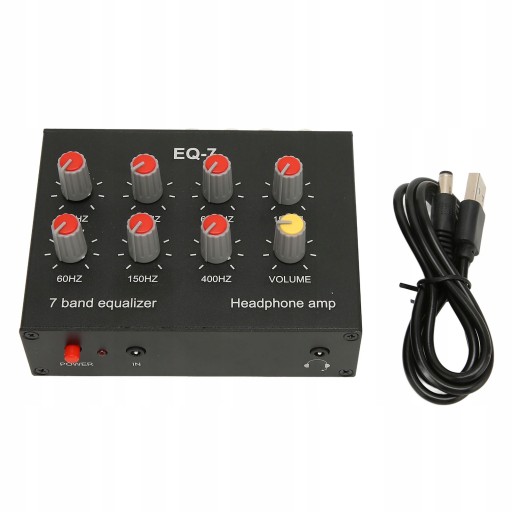

Package List:✅1 x 7-Band Sound Equalizer

✅1 x power cable

Remove the product and use it

. 7-BAND EQ RCA 12dB DC5V-12V SOUND EQUALIZER
