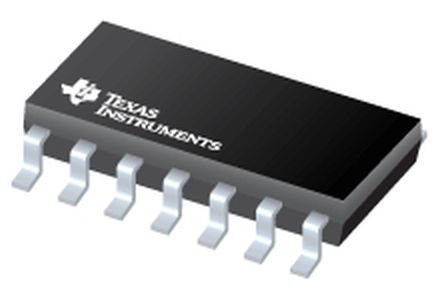

SN75C188D Quadruple Low-Power Line Driver interface RS232 SOIC-14 Texas

SN75C188D

The SN75C188 is a monolithic, low-power, quadruple line driver that interfaces data terminal equipment with data communications equipment. This device is designed to conform to ANSI Standard EIA/TIA-232-E.

An external diode in series with each supply-voltage terminal is needed to protect the SN75C188 under certain fault conditions to comply with EIA/TIA-232-E.

The SN75C188 is characterized for operation from 0°C to 70°C.

• Manufacturer: Texas Instruments
• Package / Case: SOIC-14
• Type: Transceiver
• Protocol: RS232
• Drivers per package: 4
• Receivers per package: 0
• Logic voltage (min) (V): 12
• Data rate (max) (Mbps): 0,3
• Main supply voltage (nom) (V): 12
• ESD HBM (kV): 2
• Operating temperature range (°C): 0 to 70
• Vout (typ) (V): 10

Features

• Bi-MOS Technology With TTL and CMOS Compatibility
• Meets or Exceeds the Requirements of ANSI EIA/TIA-232-E and ITU Recommendation V.28
• Very Low Quiescent Current...95 uA Typ VCC± = ±12 V
• Current-Limited Outputs...10 mA Typ
• CMOS-and TTL-Compatible Inputs
• On-Chip Slew Rate Limited to 30 V/us max
• Flexible Supply Voltage Range
• Characterized at VCC± of ±4.5 V and ±15 V
• Functionally Interchangeable With Texas Instruments SN75188, Motorola MC1488, and National Semiconductor DS14C88
