4 в 1, 2,4G, мультипротокольный DSM2 D8 D16, совместимый с модулем OpenTX SFHSS

Shop name:Chong Qing Shuo Yue Ke Ji You Xian Gong Si

Overview:

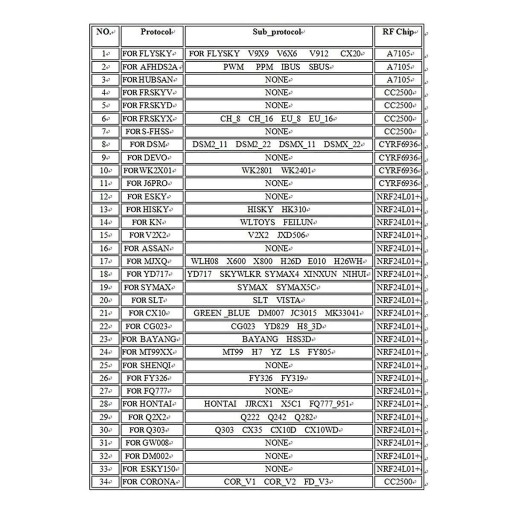

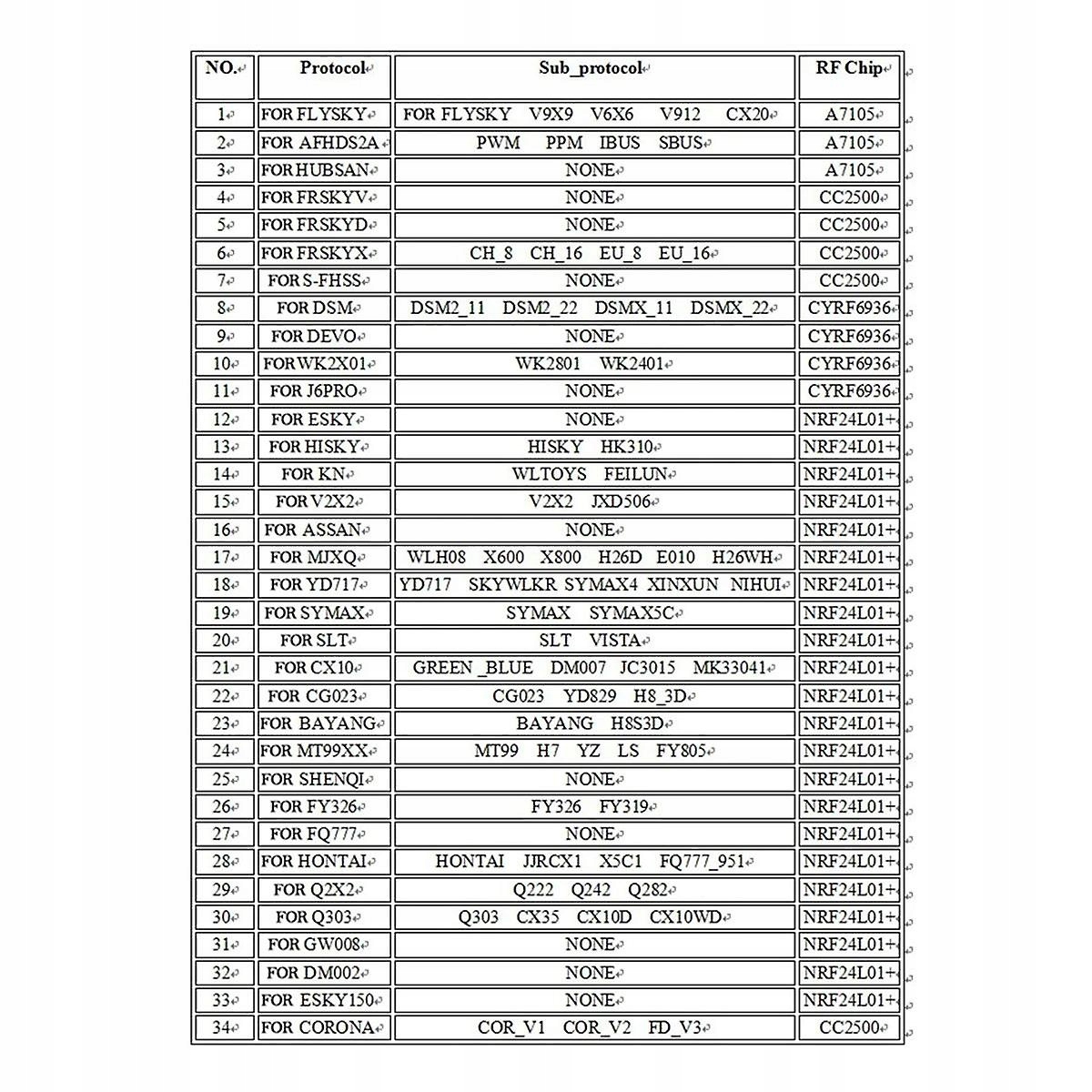

This four-in-one tuner module integrates four RF chips, CC2500, NRF24L01, A7105, and CYRF6936, into one circuit board. It can identify the PPM signal output by a remote control, and then convert it into the corresponding remote control protocol to control the receiver or the aircraft. Currently, it supports protocols for , HorizonHobby DSM2, , , , Weili, , HISKY, and Futaba SFHSS Assan.

The module can more flexibly and conveniently control four different of quad-copters, helicopters and fixed-wing aircraft. Since you continue to use the familiar remote control, the operation feel and flight experience are also better.

color: Black

material: plastic

Note:

The STM32 MCU have change to ARM, firmware is ARM -M

Attention:

We only TX module hardware. Its software is based on open source firmware, which is burned by us, and users should bear the risk of using it.

Working Parameters:

Working voltage: 5-9V

Working current: 150mA

Working frequency: 2.4G ISM band

RF power: +22dBm

Main control chip: ARM -M(128K ROM, 20K RAM)

Package Contents:

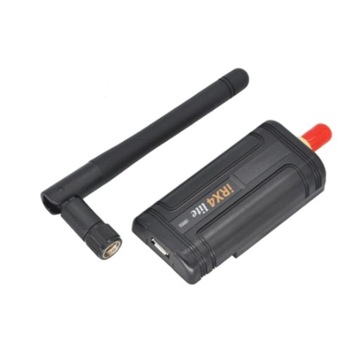

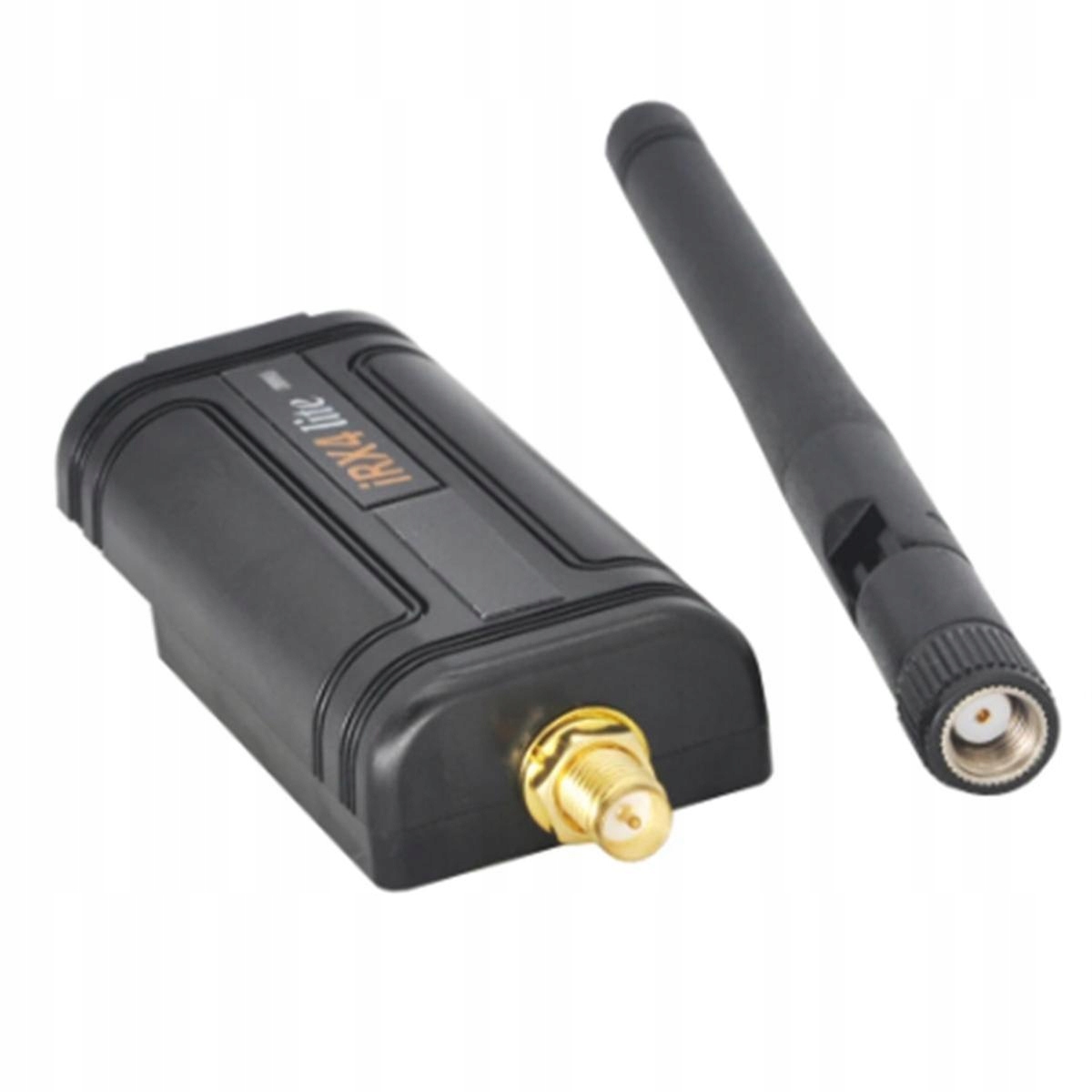

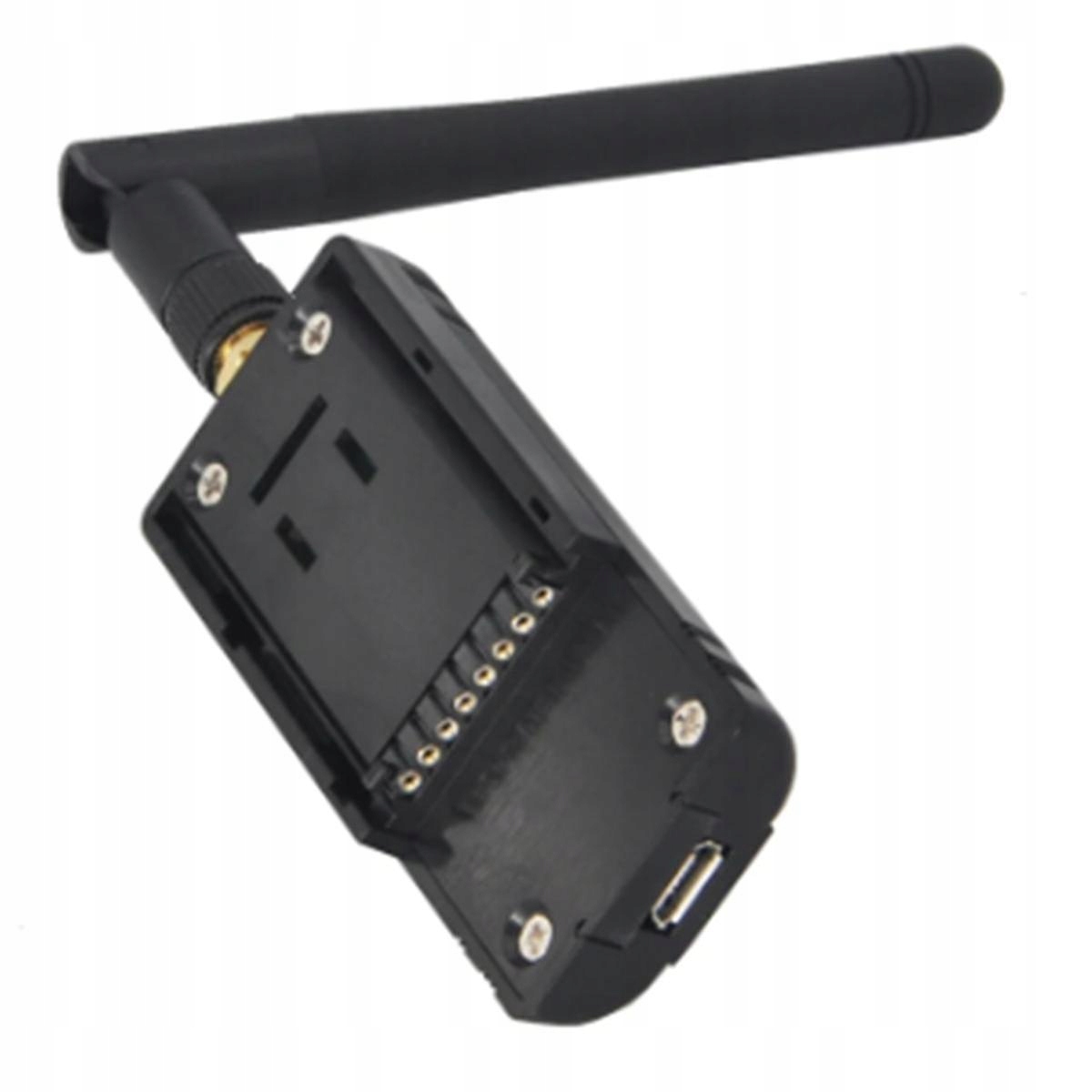

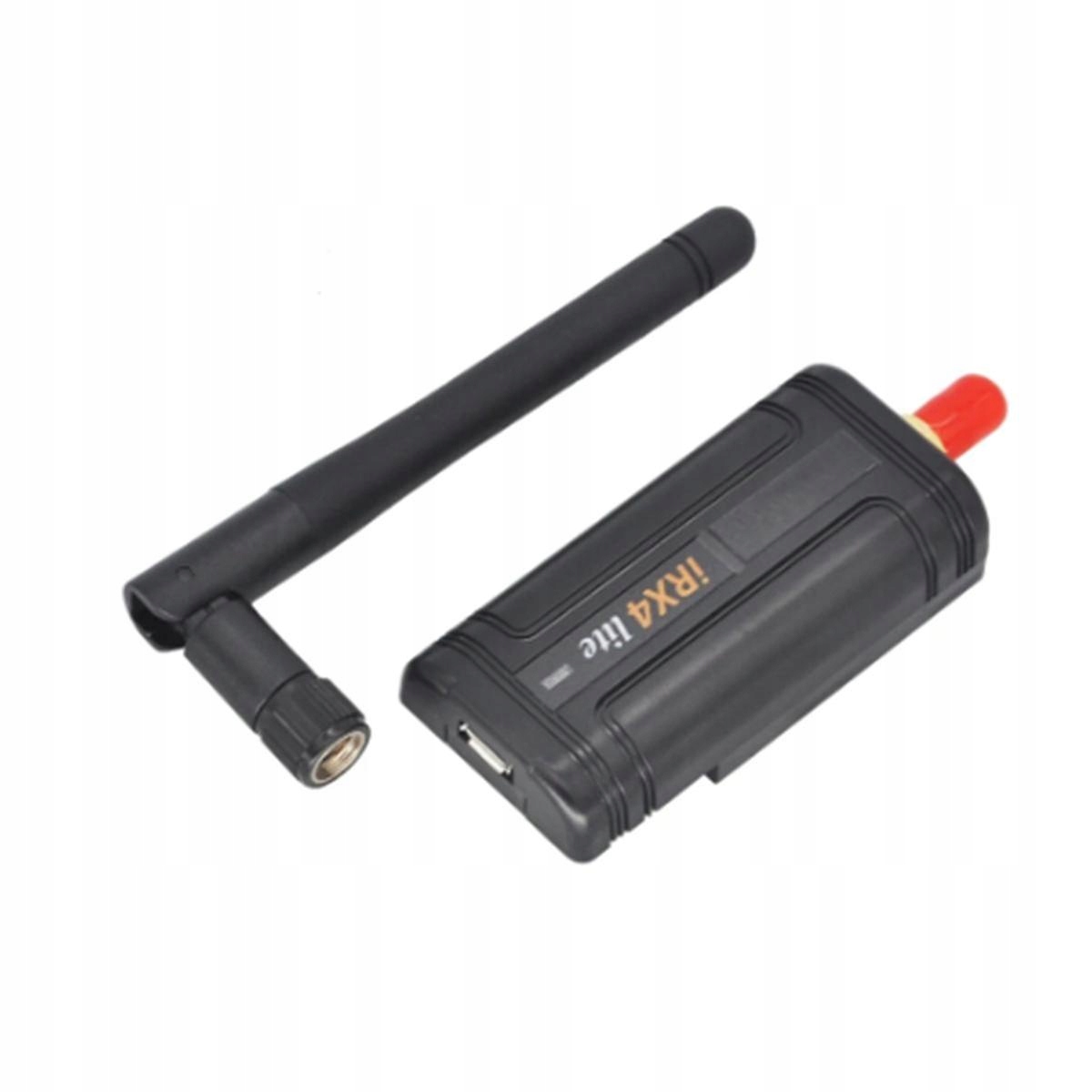

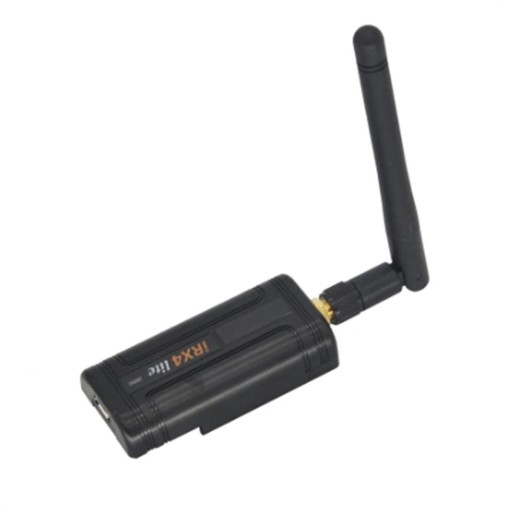

1 x IRX4 Lite 4-In-1 Module

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
