SATA 1 5V 3 pin ARGB Cable ASUS AURA SYNC RGB 10 Hub Splitter SAT Connecter

2 in 1 Cooling Fan Hub 5V 3PIN ARGB SATA Power Splitter Adapter HUB 12V 4PIN PWM Computer Accessories 10 Way for PC Chassis Case

Feature:

1. Practical Design:

Small and lightweight, effectively saving your space, making cable management easier, and the chassis interior clean. The double-layer blackened circuit board is selected, and the advanced double-sided SMT mounting process is reliable in quality. It is pasted on the back of the chassis, free of tool installation, and not easy to drop.

2. ARGB PWM 2-in-1:

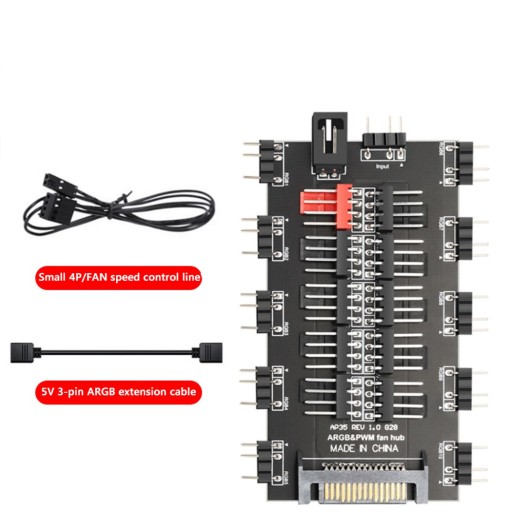

Up to 10 sets of programmable 5V/3Pin ARGB+small 4P/FAN fan interfaces are equipped with 5V/3-pin ARGB extension cables and small 4P/FAN speed regulation connection cables. Fan speed and lighting effects can be synchronized in real-time to the main board for free control, and 10 fans can be controlled simultaneously to meet your needs for connecting more devices.

3. 5V 3-pin ARGB:

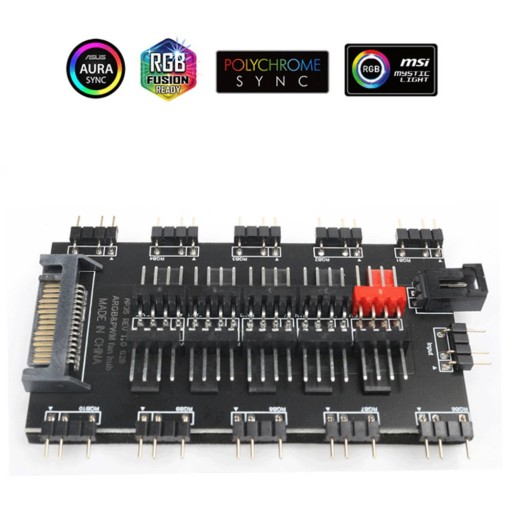

Synchronizable motherboard light control, supporting for ASUS, for Microstar, for Gigabyte, and for Huaqing motherboards. Through the control of the main board, it is possible to synchronize the lighting with other ARGB products, and achieve effects such as running lights, splicing, and displaying text patterns through programming. Compatible only with 3pin 5V addressable RGB connectors or controllers. Do not connect to 12V RGB components, as they may burn out.

4. SATA 15PIN Power Supply:

It can simultaneously power fans and 5V 3-pin ARGB products. The motherboard has no power supply burden and can maintain stable output even when fully loaded.

5. Satisfaction Guarantee:

We strive to provide each customer with the highest standard of customer service to ensure you have a pleasant shopping experience. If you have any issues, inquiries or need assistance, please feel free to tell us directly.

Specification:

Certification: CE

Origin: Mainland China

Color: Black

Voltage regulation range: 0v-12v

Connected fans: 10 fans

Installation location: Anywhere on the chassis

Power supply interface: SATA 15PIN

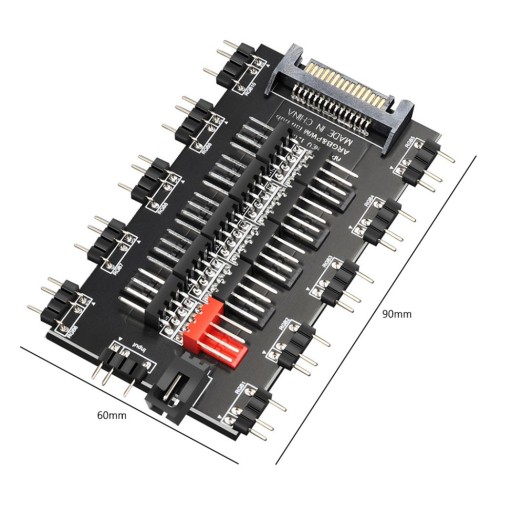

Size: About 60x90x12mm/2.36x3.54x0.47inch

Line length: About 50cm/19.68inch

Weight: 80g

Before Purchasing:

A hub is not a controller, but rather a solution to the problem of using it when the motherboard interface is insufficient. A hub cannot control the fan speed and make the fan light up. All of these require support from the motherboard to be used, or an external controller.

The fan interface supported by the 12V and 5V versions is different. It cannot be 5V connected to 12V or 12V connected to 5V. It is not a converter. Please do not misunderstand it.

The red interface on the hub needs to be connected to one temperature control fan, and other interfaces can be connected at will. However, when other interfaces are connected to a three pin fan, the rotational speed will not be synchronized and it will run at full speed. This is related to whether three pin speed regulation is supported. The hub will not allow a three pin fan that does not support temperature control to achieve temperature control functions.

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 x Splitter Hub

5V 3 pin ARGB Cable ASUS AURA SYNC RGB 10 Hub Splitter SATA Power Extension Cable Adapter LED Strip Light PC ARGB Fan Cooler
