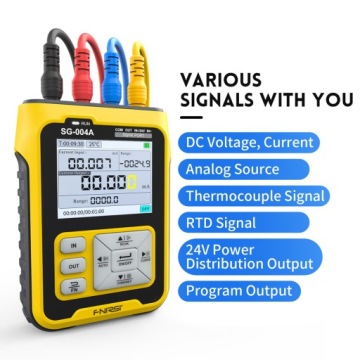

МНОГОФУНКЦИОНАЛЬНЫЙ ГЕНЕРАТОР СИГНАЛОВ FNIRSI SG-004

Portable Multifunction Signal Generator 0-24V 4-20mA Analogs Voltage Current Thermocouple Resistance Process Calibrator Color Screen With Backlight 2,4 Inch For PLC DCS System Debugging Valves Positioner

Characteristic:

1. Portable size: The small size of this tool is very convenient for daily use, it can be easily stowed away for storage and carrying.

2. The 2,4 inch backlit display can clearly display data for the convenience of reading data.

3. With the real-time curve display function, the curve can display the trend of changes in the input or output signal.

Specification:

This signal generator has advanced features that you can use. The portable size of this signal generator makes it convenient for daily use and portability. This tool can be widely used for debugging PLC and DCS systems, adjusting valve positioners, detecting inverters, etc.

Characteristics:

Portable size: The small size of this tool is very convenient for daily use, it can be easily stowed away for storage and carrying.

The 2,4 inch backlit display can clearly display data for the convenience of reading data.

With the real-time curve display function, the curve can display the trend of changes in the input or output signal.

Wide Applications: This tool can be widely used for PLC and DCS debugging, valve positioner adjustment, inverter detection, etc.

With the history browsing feature, you can view previous data at any time.

Powered by a built-in lithium battery, the remaining power is displayed on the screen, so it can be charged at the right time when there is no power, without affecting use.

The cover is made of ABS and silicone material, which can effectively prevent damage to the instrument as a result of falling and significantly extend the time of its use.

Technical data:

Material: ABS

Battery: 1 * Lithium battery, 3000 mAh (included)

Current measurement:

Ranges: 0-24mA

Precision: ±(0,02%+0,003)

Resolution: 0,001 mA

Internal Impedance: 100Ω

Voltage measurement:

Ranges: 0-24 V

Precision: ±(0,02%+0,003)

Resolution: 0,001 mA

Internal Impedance: 500K

Passive measurement:

Ranges: 0-24mA

Precision: ±(0,02%+0,003)

Resolution: 0,001 V

Internal Impedance: 100Ω

24V Loop:

Ranges: 0-24mA

Precision: ±(0,1%+0,005)

Resolution: 0,01 mA

Internal Impedance: 100Ω

Frequency:

Ranges: 0-9999 Hz

Precision: ±2%

Resolution: 5 digits

Internal Impedance: 1MK

Millivolt:

Ranges: -10~100mV

Precision: ±(0,03%+0,03)

Resolution: 0,01 mV

Internal Impedance: 2K

Thermocouple (TC-S):

Ranges: 0~1760°C

Precision: ±(0,2%+1)

Resolution: 1 ℃

Internal Impedance: 2K

Thermocouple (TC-B):

Ranges: 0 ~ 18100°C

Precision: ±(0,5%+1)

Resolution: 1 ℃

Internal Impedance: 2K

Thermocouple (TC-E):

Ranges: 0 ~ 990°C

Precision: ±(0,2%+1)

Resolution: 1 ℃

Internal Impedance: 2K

Thermocouple (TC-K):

Ranges: 0~1320°C

Precision: ±(0,2%+1)

Resolution: 1 ℃

Internal Impedance: 2K

Thermocouple (TC-R):

Ranges: 0~1760°C

Precision: ±(0,3%+1)

Resolution: 1 ℃

Internal Impedance: 2K

Thermocouple (TC-J):

Ranges: 0~1190°C

Precision: ±(0,3%+1)

Resolution: 1 ℃

Internal Impedance: 2K

Thermocouple (TC-T):

Ranges: 0~390°C

Precision: ±(0,2%+1)

Resolution: 1 ℃

Internal Impedance: 2K

Thermocouple (TC-N):

Ranges: 0~1290°C

Precision: ±(0,2%+1)

Resolution: 1 ℃

Internal Impedance: 2K

Thermocouple (WRe3/25):

Ranges: 0~2320°C

Precision: ±(0,2%+1)

Resolution: 1 ℃

Internal Impedance: 2K

Resistance:

Ranges: 0~390Ω

Precision: ±(0,2%+1)

Resolution: 0,1 ℃

Package Size: 150 * 145 * 85 mm / 5,9 * 5,7 * 3,3 inch

Package Weight: 468,6 g / 1,0 lb

Packing list:

1 * Signal Generator

4 * test clips

1 * Type-C cable

1 * User Manual

List of packages:

1 * Signal Generator

4 * test clips

1 * Type-C cable

1 * User Manual
