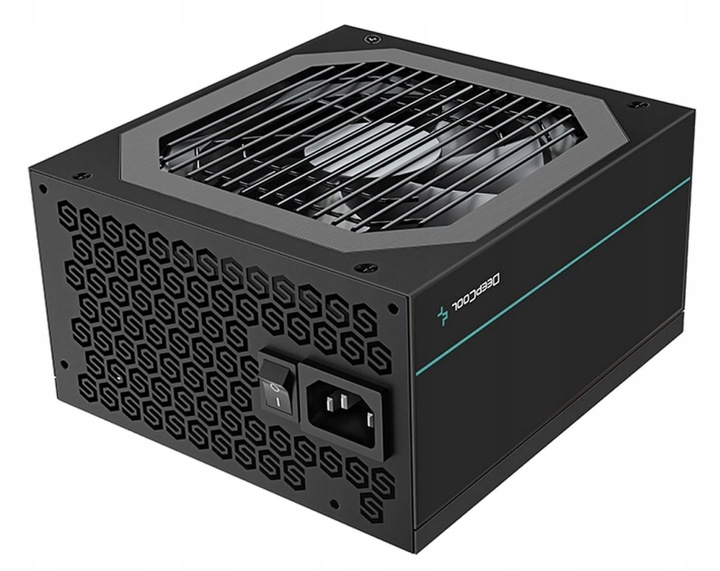

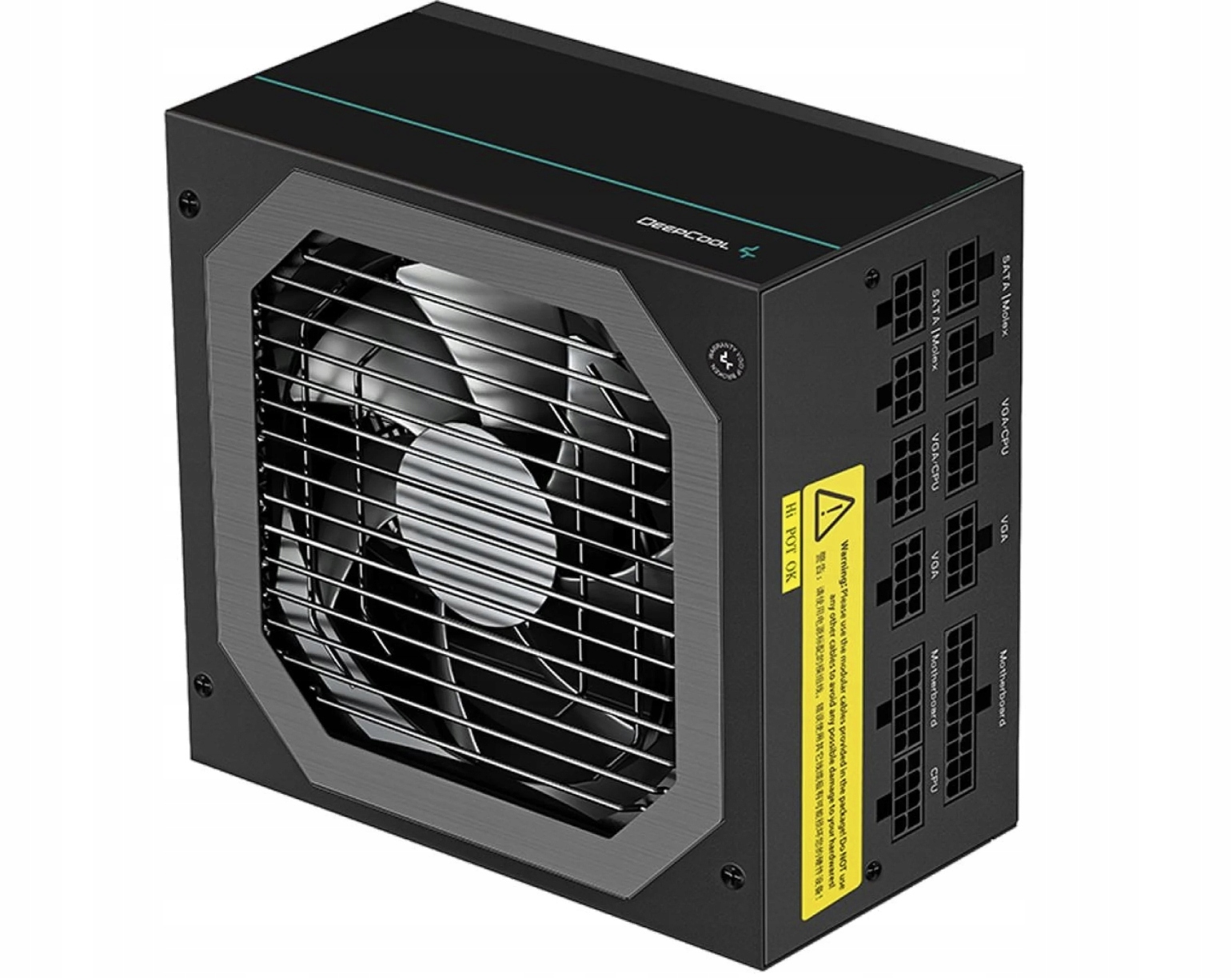

Deepcool DQ850-M-V2L 850W Plus Gold (DPGDDQ850MV2L)

Power adapter Deepcool DQ850 850W 80 Plus Gold

• Brand new product
• Packaging originally sealed by the manufacturer

.

Deepcool DQ850 850 W 80 Plus Gold

DeepCool DQ850 is a fully modular power supply from 850 W with 80 PLUS Gold certificate. It uses working at temp. up to 105℃ 100% Japanese capacitors and high quality MOSFET switching transistors. Built with the highest quality materials, the DQ850 features a high conversion rate and stable output performance.

80 PLUS Gold Certificate

The DQ850 power supply is 80 PLUS Gold certified. This means that it can reach a maximum efficiency factor of 91,4% and provides all the necessary power. With active power factor correction (PFC) + full LLC resonance converter and +DC-DC straightening synchronization, the device offers more stable voltage with less ripple and better overall performance. In addition, the single +12V rail of the DQ850 power supply provides stable power output, which makes it able to power most devices and bring out their best performance.

Cool and practical design

The modular design of the Deepcool DQ850 makes it easier to manage cables and better maintain cleanliness and order in the housing. The quiet 120mm fan with temperature function provides an amazing performance indicator to the noise. Plus, its striking exterior design gives your computer a luxurious look both outdoors and indoors.

• Maximum power 850 W
• ATX standard
• Power Supply Connectors: EPS12V / ATX 18+10 (28) pin - 1 pc. , CPU / PCI-E (8) pin - 5 pcs. , SATA / MOLEX (6) pin - 4 pcs.
• Output connectors : CPU 4+4 (8) pin - 2 pcs. , EPS12V 20+4 (24) pin - 1 pc. , PCI-E 2.0 6+2 (8) pin - 4 pcs. , MOLEX 4-pin - 6 pcs. , SATA - 10 pcs.
• Efficiency >90% at 230V and 20-100% load
• 80 PLUS Gold Certificate
• Protections : Against too high current (OCP), Overload (OPP), Thermal (OTP), Overvoltage (OVP), Short-circuit (SCP), Against too low voltage (UVP),
• PFC system (power factor correction) Active
• Wiring Type Modular
• Fan diameter 120 mm
• Colour White
• Included Accessories
• Mounting elements : Cable 20+4-pin - 1 pc. , CPU cable 4+4 pin - 2 pcs. , PCI-E cable 6+2 pin - 2 pcs. , SATA cable - 1 pc.
• Molex+SATA cable - 3 pcs. ,
• Height 86 mm Width 150 mm Depth 160 mm
