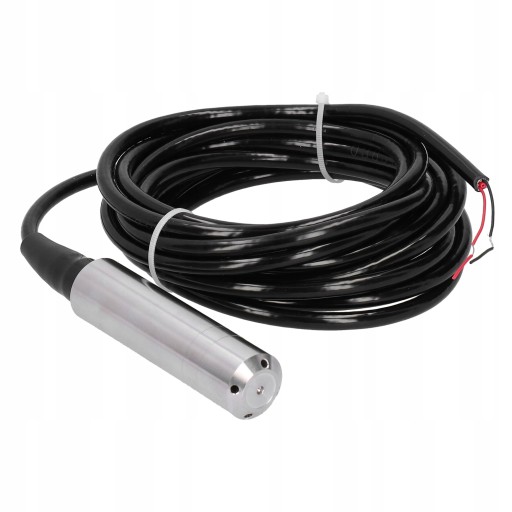

Датчик уровня жидкости из нержавеющей стали, питание 12–32 В постоянного тока, выходной сигнал 4–20 мА

Function:

1. Input level transducer and high-precision silicon diffusion for more accurate water level monitoring.

2. Fully digital conditioning circuit, 4-20mA output signal ensures more stable operation.

3. IP68 multi-layer waterproof protection ensures safe use and long service life.

4. Slanted 45 degree anti-impact angle, detachable anti-lock probe.

5. The measured medium is water, do not test the corrosion-causing fluids of stainless steel.

Specification:

Condition: 100% new

Item Type: Liquid Level Transducer

Material: 304 stainless steel

Model: YB-2J-F

Measured medium: water (it is absolutely impossible to measure liquids causing corrosion of stainless steel, except water, it is not recommended to measure other liquids)

Length of air guide cable: approx. 5 m / 16,4 feet

Measurement accuracy: 0,5% FS

Output signal: 4-20mA

Supply Voltage: 12-32VDC (the product surface is marked 24V, but can support 12-32V)

Average temperature: -40-80 ℃

Ambient temperature: -40-80 ℃

Temperature compensation: -10-70 ℃

Overload capacity: Degree of protection: IP68

Temperature source offset: ±0,01% FS/℃

Long-term stability: ± 0,2% FS/year

Machine impact: 20g (20-5000HZ)

List of packages:

1 x Liquid Level Transducer
