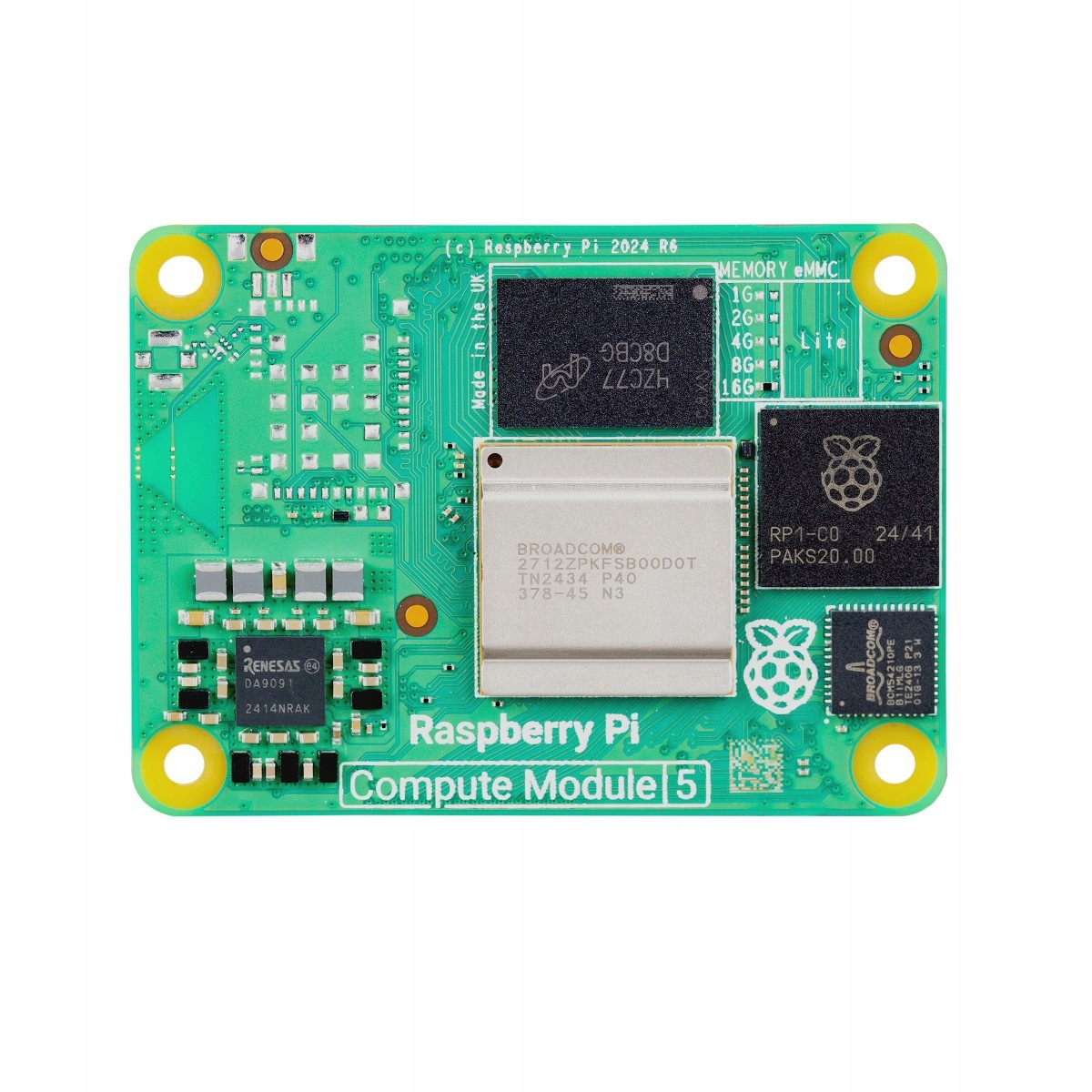

CM5016064 - Вычислительный модуль Raspberry Pi 5 - 2,4 ГГц 16 ГБ ОЗУ 64 ГБ eMMC

CM5016064 - Raspberry Pi Compute module 5 - 2,4GHz 16GB RAM 64GB eMMC

Description

Raspberry Pi Compute Module 5 (CM5) is a proven system-on-module solution that integrates the capabilities of the Raspberry Pi 5 in a compact form, ideal for embedded applications. Designed for engineers, designers and manufacturers alike, the Raspberry Pi Compute Module 5 offers a wide range of options to suit your specific design needs, no matter the scale.

Technical Specifications

The Raspberry Pi Compute Module 5 is equipped with a quad-core Broadcom BCM2712 processor, based on the 64-bit ARM Cortex-A76 architecture with a frequency of 2,4 GHz. With this chip, the module delivers high performance with low power consumption, making it an ideal solution for advanced applications in IoT, industrial automation, multimedia systems, and robotics. Thanks to its computing power, the Raspberry Pi CM5 can support complex projects requiring the integration of multiple sensors and components.

The module is available in various RAM variants, from 2 GB to 16 GB LPDDR4-4267 SDRAM with ECC error correction support, which allows for flexible adaptation to the requirements of a specific project. Additionally, the Raspberry Pi Compute Module 5 offers eMMC memory options — including non-built-in memory (Lite) versions and models with 16 GB, 32 GB, and 64 GB memory. These different capacity options give you the ability to choose the most suitable configuration to suit your specific design requirements.

Kamami is the official distributor of Raspberry Pi minicomputers and dedicated accessories.

Connection and Installation

To get started with the Raspberry Pi Compute Module 5, the module must be connected to a compatible base board, such as the Raspberry Pi IO Board, which provides access to a full range of ports and interfaces. The IO Board offers standard ports such as USB, HDMI, power connectors, and communication interfaces. The Raspberry Pi Compute Module 5 can be supplied using PoE (Power over Ethernet) technology, which is particularly useful in industrial installations where access to conventional power sources is sometimes limited.

The module offers the possibility of connecting to the network both wired (via Gigabit Ethernet) and in some versions wirelessly thanks to the built-in WiFi 802.11ac and Bluetooth 5.0 module. This configuration allows for convenient integration with modern systems that require flexibility in wireless connectivity. Wireless communication capabilities are critical for projects that need to be remotely managed and easily configurable.

How to Use Raspberry Pi Compute Module 5

After connecting the Raspberry Pi Compute Module 5 to the IO Board, it is possible to install the software on an SD card or eMMC memory. The Raspberry Pi CM5 can perform various functions such as an industrial automation controller, a sensor data center, as well as a multimedia computer that supports two HDMI outputs in 4K resolution at 60 frames per second. The module offers a range of connectivity options, including GPIO, PCIe Gen 2, and USB 3.0, allowing you to connect a variety of peripherals, such as SSDs, and opens up a wide range of system expansion options.

To facilitate prototyping, the manufacturer has prepared the Raspberry Pi Development Kit, which includes an IO Board, all necessary cables and Raspberry Pi Compute Module 5. This kit allows you to quickly start working on prototypes, reducing the time to deploy new products.

Model Wireless connectivity RAM Memory eMMC memory

CM5 1 = Yes 02 = 2 GB 000 = Lite (version without memory)

04 = 4 GB 016 = 16 GB

0 = No 08 = 8 GB 032 = 32 GB

16 = 16 GB 064 = 64 GB

Examples of Applications

Raspberry Pi Compute Module 5 can be used in a wide range of applications:

Properties

• Processor: 4-core Arm Cortex-A76, 64-bit, 2.4GHz
• GPU: VideoCore VII, support OpenGL ES 3.1 and Vulkan 1.3
• Video: Dual HDMI 4Kp60 Output
• Video decoding: HEVC 4Kp60
• Connectivity: Optional Wi-Fi 802.11ac, Bluetooth 5.0
• USB: 2 × USB 3.0 (5Gbps)
• Ethernet: Gigabit with IEEE 1588 support
• Interfaces: PCIe 2.0 x1, 2 × 4-lane MIPI DSI/CSI-2, UART, SPI, I2C, I2S, SDIO, PWM
• GPIO: 30 pins, compatible with 1.8V and 3.3V
• Memory: 2GB/4GB/8GB/16GB LPDDR4X-4267 SDRAM, 16GB/32GB/64GB eMMC
