Tedea-Huntleigh 357-4092 датчик силы IP68

APPLICATION

• load measurement in platforms, pallet trucks, tanks and silos
• reliable operation in difficult conditions—low housing, IP68 tightness
• compatibility with OIML and NTEP weighing systems (legal‑for‑trade)

PARAMETERS

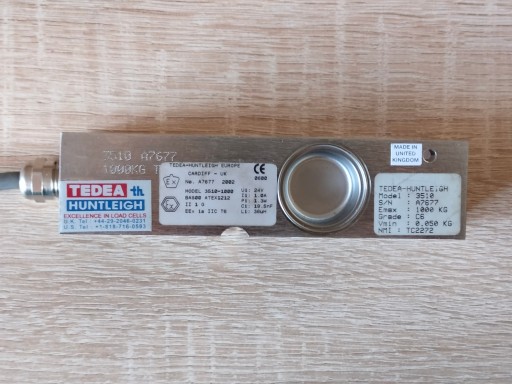

Model: 3510

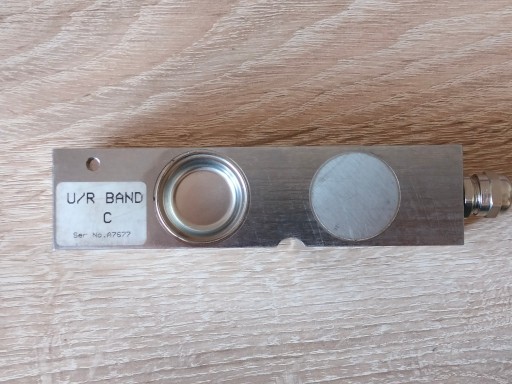

Serial number / designation: A7677

Type: shear beam, stainless steel housing

Range: 300 – 5000 kg (optional 1000 – 5000 lb)

Accuracy: OIML R60 (C3/C6) and NTEP grades

Signaling: 2 mV/V (kg) / 3 mV/V (lb)

Input resistance: 380 Ω; output: 350 Ω

Power supply: 10 Vdc (recommended), max 15 V

Overload: safe 150 % RC, maximum 300 % RC

Operating temperature: compensation −10 °C...+40 °C, safe −20 °C...+70 °C

Cable: 6‑wire PU cable, shielded

Degree of protection: hermetic housing, IP68 (sometimes IP69K)
