@ ПРОГРАММАТОР ПАМЯТИ EEPROM (СЧЕТЧИКИ ИММО) USB

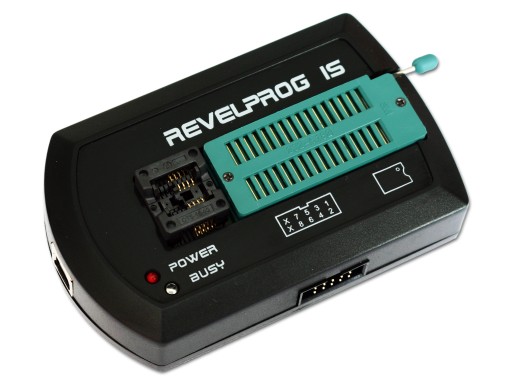

REVELPROG-IS to nowoczesny programator pamięci szeregowych wyposażonych w protokół komunikacyjny I2C, SPI, 1-Wire oraz uWire. Obsługuje pamięci typu EEPROM, FLASH oraz FRAM zasilane napięciem już od 1,0V do 5,0V. Posiada zintegrowane podstawki typu: ZIF (do układów przewlekanych) oraz SOIC (do układów SMD). Wyposażony jest w wygodne złącze do programowania w układzie ICSP. Komunikacja odbywa się w standardzie USB 2.0 co pozwoliło uzyskać krótkie czasy programowania pamięci. Do programatora udostępniane są regularne aktualizacje, które poszerzają jego możliwości (kolejne typy obsługiwanych pamięci, nowe funkcje w programie itd.).

Programator obsługuje niskonapięciowe pamięci zasilane napięciem 1.2V oraz 1.8V, które występują w sterownikach i licznikach najnowszych pojazdów.

Przykładowe obszary zastosowań::

• elektronice samochodowej (liczniki, radia samochodowe, nawigacje, moduły i sterowniki),
• w sprzęcie komputerowym (płyty główne, biosy, xserokopiarki, drukarki, odzyskiwanie danych, dyski sata HDD/SSD itd.),
• w sprzęcie sieciowym (moduły optyczne i ethernetowe SFP i SFP+, QSFP i QSFP+, XFP),
• RTV i AGD (telewizory, kamery, urządzenia wielofunkcyjne, tunery tv, programatory pralek itd.),
• pozostałe urządzenia elektroniczne z pamięcią i2c/spi/1-wire/microwire.

Wpisz na youtube "REVELPROG-IS" aby zobaczyć przykłady programowania pamięci.

Najważniejsze funkcje programatora:

• operacje odczyt / zapis / czyszczenie pamięci / weryfikacja z buforem,
• obsługa plików binarnych (*.bin, *.rom *.epp itd.) oraz Intel Hex (*.hex) z możliwością edycji (zmiana komórek pamięci, wyliczanie sum kontrolnych, swap-bytes, porównywanie z zawartością pamięci itd.),
• programowanie w zintegrowanej podstawce lub w układzie (bez wylutowania pamięci),
• możliwość wyboru napięcia zasilania pamięci oraz poziomu sygnałów [zasilanie z zewnętrznego układu (1,0-5,5V) lub zasilanie z programatora 1,0V / 1,5V / 1,8V / 2,5V / 3,3V / 5,0V],
• zabezpieczenie przez nieprawidłowym podłączeniem (przeciwzwarciowe, przeciążeniowe) bez ryzyka uszkodzenia programatora/pamięci/układu,

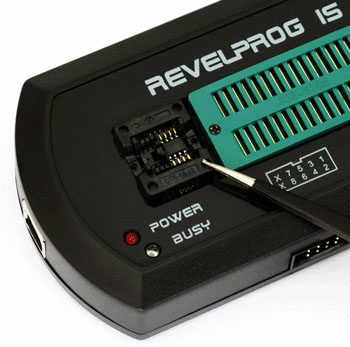

• zintegrowane podstawki (ZIF + SOIC) z funkcją automatycznego przełączania wyprowadzeń (jedna podstawka dla wielu układów),
• praktyczne dodatkowe funkcje, m.in. zapisywanie zmian do szablonów, programowanie skryptowe i2c / spi (bus pirate), wyliczanie sum kontrolnych z zaznaczonego obszaru, automatyczne tworzenie kopii wsadów, porównywarka plików itd.
• krótkie czasy programowania pamięci np. WINBOND W25Q80BV (8Mb): odczyt 0.9s (8,4Mb/s), zapis 3.3s (2,4Mb/s), MICRON N25Q128A (128Mb): odczyt 12.8s (10Mb/s), zapis 37.6s (3,4Mb/s) - zobacz film przykłady programowania.
• darmowe aktualizacje przez Internet.

Możliwość programowania w zewnętrznym układzie (bez wylutowania pamięci) z opcjonalnie dostępnym klipsem (zobacz klips POMONA 5250).

Parametry techniczne:

• obsługiwane protokoły: I2C, SPI, MICROWIRE, 1-WIRE,
• obsługiwane układy zasilane napięciem od 1,0V do 5V,
• zasilanie oraz komunikacja w standardzie USB 2.0 (sprzętowe USB, transmisja w trybie BULK - nie ma to nic wspólnego z popularnymi konwerterami RS232/USB FT232),
• możliwość programowania w układzie z zewnętrznym źródłem zasilania (1.0 - 5.5V),
• możliwość programowania w układzie z zasilaniem programatora (od 1.0 do 5.0V, Imax = 100mA),
• szybkość operacji (odczyt/zapis): do 10Mbit/s,

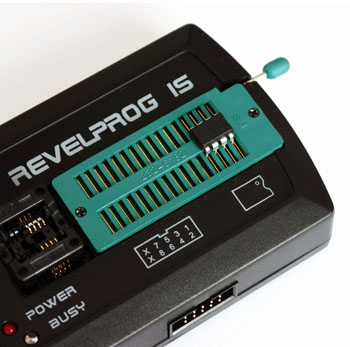

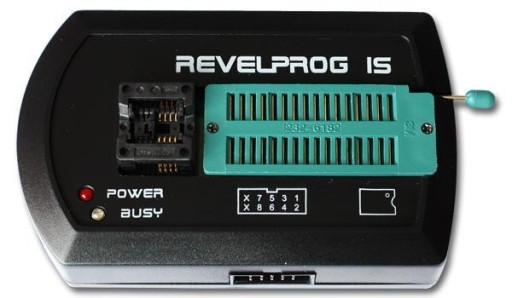

• zintegrowane podstawki ZIF-32 + SOIC-8 (150mil),
• złącze do programowania w układzie (buforowane wejścia/wyjścia),
• automatyczne ustawianie pinów (konfiguracja oraz podłączenie linii we/wy tylko na czas operacji na pamięci),
• zabezpieczenie przed nieprawidłowym podłączeniem w układzie (przeciwzwarciowe, przeciążeniowe),
• oprogramowanie sterujące kompatybilne z Windows XP, Vista, 7, 8 oraz 10 (32 oraz 64 bit),
• urządzenie zaprojektowane oraz wyprodukowane w Polsce (oprogramowanie w języku polskim).

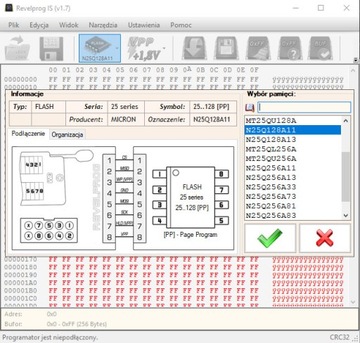

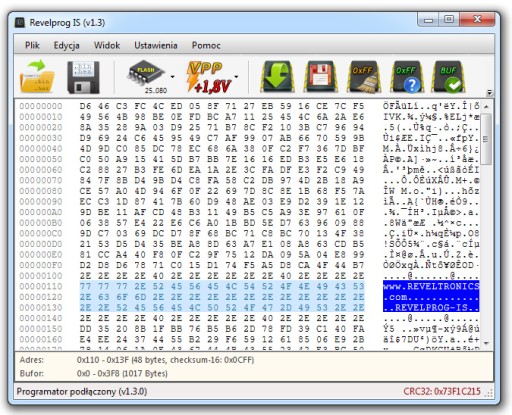

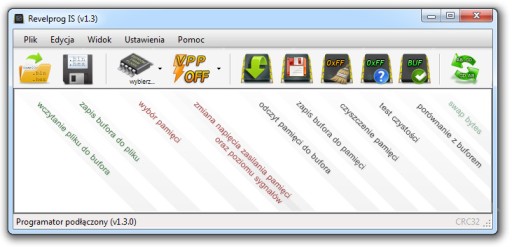

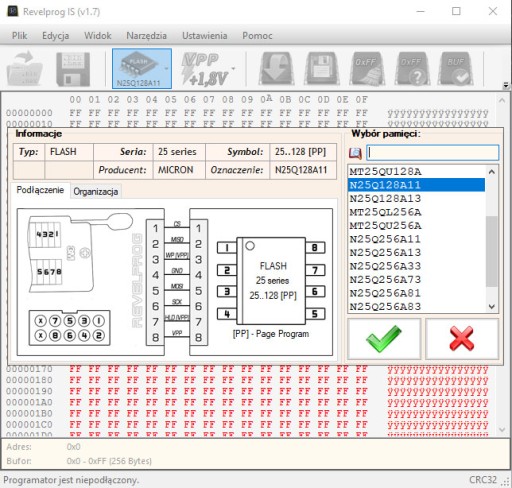

Oprogramowanie REVELPROG-IS:

Oprogramowanie można bezpłatnie pobrać ze strony producenta - wpisz w google "oprogramowanie REVELPROG-IS". Produkt polski, więc i oprogramowanie w języku polskim. Pracuje pod systemem Windows XP, Vista, 7, 8 oraz 10 (32-bit oraz 64-bit).

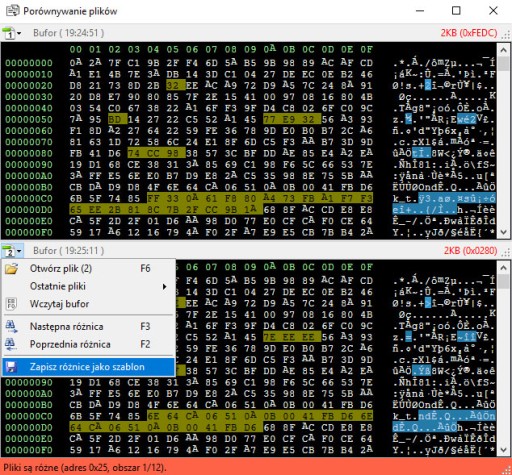

Dostępne dodatkowe praktyczne narzędzia w oprogramowaniu REVELPROG-IS takie jak porównywarka plików czy zapisywanie zmian do szablonów.

Zawartość zestawu:

• programator pamięci szeregowych REVELPROG IS,
• taśma do programowania w układzie (~30cm zakończona pinami żeńskimi pasującymi na klips i złącza gold-pin),
• kabelek USB 2.0.

Do pobrania ze strony producenta REVELTRONICS*

• Instrukcja obsługi w PDF - zakładka "instrukcje" na stronie opisu produktu,
• Najnowsze oprogramowanie REVELPROG-IS - zakładka "oprogramowanie" na stronie opisu produktu.

*proszę wpisać w google "REVELTRONICS", ponieważ allegro nie zezwala na umieszczanie zewnętrznych linków

Lista obsługiwanych układów

Wiele układów posiada identyczne procedury programowania (tzw. rodziny układów), a np. inny obsługiwany zakres napięć. Ponadto różni producenci stosują różne nazwy. Np. pod nazwą „24…16” kryje się kilkadziesiąt różnych układów, m.in. 24C16, 24LC16, 24AA16, AT24C16, AT24C16A i wiele więcej. Na poniższej liście wyszczególniono rodziny obsługiwanych układów wraz z przykładowymi typami obsługiwanych pamięci.

WSKAZÓWKA: Naciśnij CTRL+F aby szybko wyszukać interesujący układ (wyszukiwanie przez przeglądarkę).

EEPROM I2C 24…

• 24..01 (1kb): 24AA01 | 24AA014 | 24AA014H | 24AA01H | 24C01 | 24C01A | 24C01B | 24C01C | 24LC01 | 24LC014 | 24LC014H | 24LC01B | 24LC01BH | AF24BC01 | AT24C01 | AT24C01A | AT24C01B | BR24A01AF | BR24A01AFJ | BR24C01 | BR24C01A | BR24C01AF | BR24C01AFJ | BR24C01AFV | BR24C21F | BR24C21FJ | BR24C21FV | BR24G01 | BR24G01F | BR24G01FJ | BR24G01FV | BR24G01FVT | BR24L01 | BR24L01A | BR24L01AF | BR24L01AFJ | BR24L01AFV | BR24L01AFVM | BR24L01AFVT | BR24T01A | CAT24AA01 | CAT24C01 | CAT24C01B | CAT24C21 | CAT24FC01 | CAT24LC01 | CAT24WC01 | CR24C01 | CY24C01 | FM24C01 | FT24C01 | FT24C01A | GE24C01 | GP24BC01 | HM24LC01 | HT24C01 | HT24LC01 | IS24C01 | IS24C01B | LT24C01 | LX24C01 | M24C01 | MM24C01 | S-24C01A | S-24C01B | S-24C01C | S-24CS01A | SLA24C01 | SLE24C01 | ST24C01 | ST24W01 | TMC24A01 | TU24C01B | UG24C01 | X24012 | X24C01 | X24C01A | XL24C01A
• 24..02 (2kb): 24AA02 | 24AA024 | 24AA024H | 24AA025 | 24AA02H | 24C02 | 24C02A | 24C02B | 24C02C | 24LC02 | 24LC024 | 24LC024H | 24LC025 | 24LC02B | 24LC02BH | 24LC02W | 24LLC02 | A24C02 | ACE24C02 | ACE24LC02 | AF24BC02 | AM24LC02 | AT24C02 | AT24C02A | AT24C02B | AT24C02C | AT24HC02B | AT24HC04B | AX24C02A | BJX25LC02 | BL24C02 | BR24A02F | BR24A02FJ | BR24A02FVM | BR24C02 | BR24C02F | BR24C02FV | BR24G02F | BR24G02FJ | BR24G02FVT | BR24L02 | BR24L02F | BR24L02FJ | BR24L02FV | BR24L02FVM | BR24L02FVT | BR24T02 | CAT24AA02 | CAT24C02 | CAT24C03 | CAT24LC02 | CAT24LC02A | CAT24LC02AZ | CAT24LC02Z | CAT24WC02 | CAT24WC03 | CKD24A02 | CR24C02 | CW24C02 | CW24C02B | CY24C02 | EC24C02 | EC24C02A | EM24LC02 | FM24C02 | FM24C02U | FM24C02UF | FM24C03U | FM24C03UF | FT24C02 | FT24C02A | GE24C02 | GM24LC02B | GP24BC02 | HM24LC02 | HN58X2402 | HT24C02 | HT24LC02 | IN24AA02A | IN24AA02B | IN24LC02B | IS24C02 | IS24C02A | IS24C02B | IS24C02E | K24C02 | KK24LC02B | L24C02 | L24W02 | LE24C0221 | LE24C023 | LE24L0221 | LT24C02 | LX24C02 | LY24C02 | M24C02 | MAX24A02 | MC24C02 | MC24LC02 | MM24C02 | NM24C02 | NM24C02F | NM24C02U | NM24C03 | NM24C03F | NM24W02 | NSC24C02 | PCF8582C-2 | PTK24A02T | RT24A02 | S-24C02A | S-24C02B | S-24C02C | S-24CS02A | SLA24C02 | SLE24C02 | SM24C02 | ST24C02 | ST24W02 | T24C02 | T24C02A | TMC24A02 | TU24C02B | UG24C02 | WS24C02 | X24022 | X24C02 | XL24C02 | Y24LC02
• 24..04 (4kb): 24AA04 | 24AA04H | 24C04 | 24C04A | 24LC04 | 24LC04B | 24LC04BH | A24C04 | ACE24C04 | ACE24LC02 | AF24BC04 | AM24LC04 | AT24C04 | AT24C04A | AT24C04B | AX24C04A | BJX24LC04 | BL24C04 | BR24A04F | BR24A04FJ | BR24C04 | BR24C04F | BR24C04FJ | BR24C04FV | BR24G04F | BR24G04FJ | BR24G04FV | BR24G04FVT | BR24L04 | BR24L04F | BR24L04FJ | BR24L04FV | BR24L04FVM | BR24L04FVT | BR24T04 | CAT24C04 | CAT24C05 | CAT24LC04 | CAT24WC04 | CAT24WC05 | CR24C04 | CW24C04 | CW24C04A | CY24C04 | EC24C04 | EC24C04A | FM24C04 | FM24C04U | FM24C04UF | FM24C05U | FM24C05UF | FM24CL04 | FT24C04 | FT24C04A | GE24C04 | GM24LC04B | HM24LC04 | HN58X2404 | HT24C04 | HT24LC04 | IN24LC04B | IS24C04 | IS24C04A | IS24C04B | K24C04 | KK24LC04 | KK24LC04B | L24C04 | L24W04 | LE24C042 | LE24C043 | LT24C04 | LX24C04 | LY24C04 | M24C04 | M24LC04 | MM24C04 | NM24C04 | NM24C04F | NM24C04U | NM24C05 | NM24C05F | NM24W04 | S-24C04A | S-24C04B | S-24CS04A | SLA24C04 | SLE24C04 | ST24C04 | ST24W04 | T24C04 | T24C04A | TMC24A04 | TU24C04B | UG24C04 | WS24W04 | X24042 | X24C04 | XL24C04 | Y24LC04
• 24..08 (8kb): 24AA08 | 24AA08H | 24C08 | 24C08B | 24LC08 | 24LC08B | 24LC08BH | 24LLC08 | A24C08 | ACE24C08 | ACE24C08A | ACE24LC08 | ACE24LC08A | AF24BC08 | AM24LC08 | AT24C08 | AT24C08A | AT24C08B | AT24RF08C | AX24C08A | BL24C08 | BR24A08F | BR24A08FJ | BR24C08 | BR24C08F | BR24C08FJ | BR24C08FV | BR24G08F | BR24G08FJ | BR24G08FV | BR24G08FVT | BR24L08 | BR24L08F | BR24L08FJ | BR24L08FV | BR24L08FVM | BR24L08FVT | BR24T08 | CAT24C08 | CAT24LC08 | CAT24WC08 | CR24C08 | CW24C08 | CW24C08B | CY24C08 | EC24C08 | EC24C08A | FM24C08 | FM24C08U | FM24C08UF | FM24C09UF | FM24CL08 | FT24C08 | FT24C08A | GM24LC08B | GP24BC08 | HN58X2408 | HT24C08 | HT24LC08 | IN24AA08B | IN24LC08B | IS24C08 | IS24C08A | K24C08 | KK24LC08 | KK24LC08B | L24M08 | L24W08 | LE24C081 | LE24C082 | LE24L082 | LT24C08 | LX24C08 | LY24C08 | M24C08 | MAX24A08 | MC24C08 | MC24LC08 | MM24C08 | MTV24C08 | MTV24LC08 | NM24C08 | NM24C08F | NM24C08U | NM24C09 | NM24C09F | NM24C09U | NM24W08 | NSC24C08 | P24S08 | PCA24S08 | PS08 | PTK24A08T | S-24C08A | S-24C08C | S-24CS08A | SLA24C08 | SLE24C08 | ST24C08 | ST24W08 | T24C08 | T24C08A | TMC24A08 | TU24C08B | UG24C08 | WS24W08 | X24C08 | XL24C08 | Y24LC08
• 24..16 (16kb): 24AA16 | 24AA16H | 24C16 | 24C16B | 24LC16 | 24LC164 | 24LC16B | 24LC16BH | 24LLC16 | 24U17 | A24C16 | ACE24C16 | ACE24LC16 | AF24BC16 | AM24LC16 | AT24C16 | AT24C164 | AT24C16A | AT24C16B | AT24C16C | AX24C16A | BJX24LC16 | BL24C16 | BR24A16F | BR24A16FJ | BR24C16 | BR24C16F | BR24C16FJ | BR24C16FV | BR24E16 | BR24E16F | BR24E16FJ | BR24E16FV | BR24G16F | BR24G16FJ | BR24G16FV | BR24G16FVT | BR24L16 | BR24L16F | BR24L16FJ | BR24L16FV | BR24L16FVT | BR24S16F | BR24S16FJ | BR24S16FV | BR24S16FVM | BR24S16FVT | BR24T16 | CAT24C16 | CAT24C16L | CAT24C16Z | CAT24FC16 | CAT24FC17 | CAT24WC16 | CAT24WC17 | CR24C16 | CW24C16 | CW24C16A | CY24C16 | EC24C16 | EC24C16A | FM24C16 | FM24C16U | FM24C16UF | FM24C17 | FM24C17U | FM24C17UF | FM24CL16 | FT24C16 | FT24C16A | GM24LC16B | GP24BC16 | HM24LC16 | HN58X2416 | HT24C16 | HT24LC16 | IN24LC16B | IS24C16 | IS24C16A | KK24LC16 | KK24LC16B | L24W16 | LE24C162 | LE24L162 | LT24C16 | LX24C16 | LY24C16 | M24C16 | MAX24A16 | MC24C16 | MC24LC16 | MM24C16 | MTV24C16 | MTV24LC16 | NM24C16 | NM24C16F | NM24C16U | NM24C17 | NM24C17F | NM24C17U | NM24W16 | NSC24C16 | PTK24A16T | S-24C16A | S-24CS16A | SLA24C16 | SLE24C16 | SLE24C164 | ST24C16 | ST24W16 | T24C16 | T24C16A | TMC24A16 | TU24C16B | UG24C16 | WS24W16 | X24164 | X24165 | X24C16 | XL24C16 | XL24C164 | Y24LC16
• 24..32 (32kb): 24AA32 | 24AA32A | 24C32 | 24LC32 | 24LC32A | 24LC32B | A24C32 | ACE24C32 | ACE24C32A | AF24BC32 | AT24C32 | AT24C32A | AT24C32B | AT24C32C | AT24C32D | AX24C32A | BR24A32F | BR24A32FJ | BR24C32 | BR24C32F | BR24G32F | BR24G32FJ | BR24G32FV | BR24G32FVT | BR24L32 | BR24L32F | BR24L32FJ | BR24L32FV | BR24L32FVT | BR24S32F | BR24S32FJ | BR24S32FV | BR24S32FVM | BR24S32FVT | BR24T32 | CAT24C32 | CAT24FC32 | CAT24FC32A | CAT24WC32 | CAT24WC33 | CR24C32 | CW24C32 | EC24C32 | EC24C32A | FM24C32 | FM24C32U | FM24C32UF | FT24C32 | FT24C32A | HM24LC32 | HN58X2432 | HT24C32 | HT24LC32 | IN24AA32A | IS24C32 | IS24C32A | IS24C32B | IS24C32C | K24C32 | L24W32 | LE24C322 | LE24L322 | M24C32 | MC24C32 | MM24C32 | NM24C32 | NM24C32U | NM24C32UF | NSC24C32 | PTK24A32T | S-24C32C | SLA24C32 | SLE24C32 | ST24C32 | T24C32 | T24C32A | TU24C32 | WS24W32 | X24320
• 24..64 (64kb): 24AA64 | 24AA64F | 24AA65 | 24C64 | 24C65 | 24FC64 | 24LC64 | 24LC64B | 24LC64F | 24LC65 | A24C64 | ACE24C64 | ACE24C64A | AF24BC64 | AT24C64 | AT24C64A | AT24C64B | AT24C64C | AT24C64D | AX24C64A | BR24A64F | BR24A64FJ | BR24C64 | BR24C64F | BR24G64F | BR24G64FJ | BR24G64FV | BR24G64FVT | BR24L64 | BR24L64F | BR24L64FJ | BR24S64F | BR24S64FJ | BR24S64FV | BR24S64FVM | BR24S64FVT | BR24T64 | CAT24C64 | CAT24FC64 | CAT24FC65 | CAT24FC66 | CAT24WC64 | CAT24WC65 | CR24C64 | CW24C64 | EC24C64 | EC24C64A | FM24C64 | FM24C64F | FM24CL64 | FT24C64 | FT24C64A | HM24LC64 | HN58X2464 | HT24C64 | HT24LC64 | IS24C64 | IS24C64A | IS24C64B | K24C64 | L24W64 | LE24CB642 | M24C64 | MM24C64 | NM24C65 | NM24C65F | NSC24C64 | PTK24A64T | S-24C64C | SLA24C64 | SLE24C64 | ST24C64 | T24C64 | T24C64A | TU24C64B | WS24W64 | X24640 | X24641 | X24645
• 24..128 (128kb): 24AA128 | 24C128 | 24FC128 | 24LC128 | 24LC21 | 24LC21A | 24LCS21A | ACE24C128 | AF24BC128 | AT24C128 | AT24C128B | AT24C128C | AT24CS128 | AX24C128A | BL24C128 | BR24G128F | BR24G128FJ | BR24G128FV | BR24G128FVT | BR24S128F | BR24S128FJ | BR24S128FV | BR24S128FVT | BR24T128 | CAT24C128 | CAT24WC128 | CAT24WC129 | CR24C128 | CW24C128 | EC24C128 | EC24C128A | FM24C128 | FM24C128F | FM24CL128 | FT24C128 | FT24C128A | HN58X24128 | HT24C128 | HT24LC128 | IS24C128 | IS24C128A | IS24C128B | IS24L128 | LE24CB1283 | M24128 | S-24C128C | T24C128 | T24C128A | TU24C128
• 24..256 (256kb): 24AA256 | 24C256 | 24FC256 | 24LC256 | A24C256 | ACE24C256 | AT24C256 | AT24C256B | AT24C256C | AT24CS256 | AX24C256A | BL24C256 | BR24S256F | BR24S256FJ | BR24T256 | CAT24C256 | CAT24FC256 | CAT24WC256 | CAT24WC257 | CW24C256 | EC24C256A | FM24C256 | FM24C256F | FM24CL256 | FT24C256 | FT24C256A | HN58X24256 | HT24C256 | HT24LC256 | IS24C256 | IS24C256A | IS24L256 | M24256 | MC24C256 | T24C256 | T24C256A | TU24C256
• 24..512 (512kb): 24AA512 | 24C512 | 24FC512 | 24LC512 | 24LC515 | AT24C512 | AT24C512B | AT24C512C | CAT24C512 | CAT24WC512 | FM24C512 | FM24CL512 | FT24C512A | HN58X24512 | HT24C512 | HT24LC512 | IS24C512 | M24512 | SA24C512
• 24..1024 (1Mb): 24AA1024 | 24AA1025 | 24AA1026 | 24C1024 | 24C1025 | 24C1026 | 24FC1024 | 24LC1024 | 24LC1025 | 24LC1026 | AT24C1024 | AT24C1024B | CAT24C1024 | CAT24WC1024 | FM24C1024 | FM24CL1024 | HT24C1024 | HT24LC1024 | IS24C1024 | M24M01
• 24..2048 (2Mb): M24M02

EEPROM SPI 25…

• 25..010 (1kb): 25010 | 25AA010 | 25AA010A | 25C010 | 25LC010 | 25LC010A | A25010A | AT25010 | BR25H010-W | BR25L010-W | CAT25C01 | CAT25C11 | CY25C01 | IS25C01 | S-25A010A | ST25C01 | ST25W01 | XC25010
• 25..020 (2kb): 25020 | 25AA020 | 25AA020A | 25C020 | 25LC020 | 25LC020A | AT25020 | AT25020A | BR25H020-W | BR25L020-W | CAT25C02 | CAT25C03 | CY25C02 | FM25C020U | FM25C020UL | IS25C02 | NM25C020 | S-25A020A | ST25C02 | ST25W02 | X25020 | XC25020
• 25..040 (4kb): 25040 | 25AA040 | 25AA040A | 25C040 | 25C040A | 25LC040 | 25LC040A | AT25040 | AT25040ACAT25C04 | BR25H040-W | BR25L040-W | CAT25C05 | CY25C04 | FM25C040U | FM25C040UL | FM25C041U | FM25L04 | IN25AA040 | IS25C04 | NM24C040 | NM24C041 | S-25A040A | ST25C04 | ST25W04 | X25040 | X25041 | XC25040
• 25..080 (8kb): 25080 | 25AA080 | 25AA080A | 25AA080B | 25C080 | 25LC080 | 25LC080A | 25LC080B | AT25080 | AT25080A | AT25080B | BR25H080-W | BR25L080-W | CAT25C08 | CAT25C09 | CY25C08 | FM25L08 | IN25AA080 | IS25C08 | S-25A080A | ST25C08 | ST25W08 | X25080 | X25F008 | XC25080
• 25..160 (16kb): 25160 | 25AA160 | 25AA160A | 25AA160B | 25C160 | 25LC160 | 25LC160A | 25LC160B | AT25160 | AT25160A | AT25160B | BR25H160-W | BR25L160-W | CAT25C16 | CAT25C17 | CY25C16 | FM25C160 | FM25C160U | FM25C160UL | FM25L016 | IN25AA160 | IS25C16 | NM24C160 | S-25A160A | ST25C16 | ST25W16 | X25160 | X25170 | X25F016 | XC25160
• 25..320 (32kb): 25320 | 25AA320 | 25AA320A | 25C320 | 25LC320 | 25LC320A | AT25320 | AT25320A | AT25320B | BR25H320-W | BR25L320-W | CAT25C32 | CAT25C33 | FM25C320U | FM25C320UL | IS25C32 | IS25C32A | IS25C32B | S-25A320A | TI2532 | X25320 | X25F032 | XC25320
• 25..640 (64kb): 25640 | 25AA640 | 25C640 | 25LC640 | AT25640 | AT25640A | AT25640B | BR25L640-W | CAT25C64 | CAT25C65 | FM25C640U | FM25CL64 | FM25L64 | IS25C64 | IS25C64A | IS25C64B | NM24C640 | S-25A640A | TI2564 | X25640 | X25642 | X25650 | X25F064 | XC25640
• 25..128 (128kb): 25128 | 25AA128 | 25C128 | 25LC128 | AT25128 | AT25128A | CAT25C128 | IS25C128 | IS25C128A | S-25C128A | X25128 | X25138 | X25F128 | XC25128
• 25..256 (256kb): 25256 | 25AA256 | 25C256 | 25LC256 | AT25256 | AT25256A | CAT25C256 | FM25L256 | IS25C256 | IS25C256A | X25256 | XC25256
• 25..512 (512kb): 25512 | 25AA512 | 25C512 | 25LC512 | AT25512 | XC25512
• 25..1024 (1Mb): 251024 | 25AA1024 | 25C1024 | 25LC1024 | AT251024 | XC251024

EEPROM SPI 35…

D80D0WQ | D80DOWQ | M35080 | M35080-3 | M35080-6 | M35080V6 | M35080-VP | D160D0WQ | D160D0WT | D160DOWQ | D160DOWT | M35160

(zapis rejestru inkrementalnego wyższą wartością, czyszczenie oraz zapis reszty bufora)

EEPROM SPI 95…

M95010 | M95020 | M95040 | 5P08 | 5P08C3 | M95080 | M95160 | M95320 | M95640 | M95128 | M95256 | M95512 | M95M01 | M95M02

EEPROM MICROWIRE 93…

Obsługa pamięci 8- oraz 16-bitowych

• 93..06 (256b): 9306 | 93C06 | KM93C06 | KM93C06GD | M93C06 | NMC9306 | NMC93C06L | NMC93C06LZ
• 93..46 (1kb): 93AA46 | 93AA46A | 93AA46B | 93AA46C | 93C46 | 93C46A | 93C46B | 93C46C | 93CX46 | 93LC46 | 93LC46A | 93LC46B | 93LC46C | 93S46 | 93X46 | A93C46 | AF93BC46 | AK93C46 | AM93LC46 | AT93C46 | AT93C46A | AT93C46B | AT93C46C | AT93C46D | AT93C46E | BL93C46 | BR93A46 | BR93C46 | BR93H76 | BR93L46 | BR93LC46 | CAT93C46 | CAT93C46A | CAT93C46AH | CAT93C46B | CAT93C46H | CAT93C46R | CAT93HC46 | CR93C46 | EC93C46A | EM93LC46 | FM93C46 | FM93C46A | FT93C46 | FT93C46A | GSC93BC46A | GT93C46 | GT93C46A | HT93LC46-A | IN93AA46A | IN93AA46B | IN93AA46C | IN93LC46A | IN93LC46B | IN93LC46C | IS93C46-3 | IS93C46A | IS93C46AGR | IS93C46B | IS93C46BGR | IS93C46D | IS93C46DGR | K93C46 | KM93C46 | KM93C46GD | KM93C46V | KM93C46VGD | LC46 | M93C46 | M93S46 | MAX93LC46 | MC93C46 | MM93C46-3 | MM93C46-3GR | NM93C46 | NM93C46A | NM93C46L | NM93C46LZ | NM93CS46 | NMC9346 | PTK93LC46 | RH76 | RT93LC46 | S93462 | S93463 | S93A46 | S-93A46A | S-93A46B | S-93L46AD | S93VP462 | S93VP463 | S93WD462 | S93WD463 | T93C46 | T93C46A | TMC93LC46 | TU93C46 | UG93C46-A | W93C46 | W93C46B | XL93C46 | XL93LC46 | XL93LC46A | XL93LC46ARY | XL93LC46B | XL93LC46BRY | XL93LC46RY | Y93LC46
• 93..56 (2kb): 93AA56 | 93AA56A | 93AA56B | 93AA56C | 93C56 | 93C56A | 93C56B | 93C56C | 93CX56 | 93LC56 | 93LC56A | 93LC56B | 93LC56C | 93S56 | 93X56 | A93C56 | AF93BC56 | AK93C56 | AM93LC56 | AT93C56 | AT93C56A | AT93C56B | AT93C56C | AT93C56D | AT93C56E | AT93C57 | BL93C56 | BR93A56 | BR93C56 | BR93L56 | BR93LC56 | CAT93C56 | CAT93C56A | CAT93C56AH | CAT93C56B | CAT93C56H | CAT93C56R | CAT93C57 | CAT93HC56 | CR93C56 | EC93C56A | EM93LC56 | EM93LC57 | FM93C56 | FM93C56A | FT93C56 | FT93C56A | GSC93BC56A | GT93C56 | GT93C56A | HT93LC56-A | IN93AA56A | IN93AA56B | IN93AA56C | IN93LC56A | IN93LC56B | IN93LC56C | IS93C56-3 | IS93C56A | IS93C56AGR | IS93C56B | IS93C56BGR | IS93C56D | IS93C56DGR | K93C56 | KM93C56 | KM93C56GD | KM93C56V | KM93C56VGD | KM93C57 | KM93C57GD | KM93C57V | M93C56 | M93S56 | MC93C56 | MM93C56-3 | MM93C56-3GR | NM93C56 | NM93C56A | NM93C56L | NM93C56LZ | NM93CS56 | PTK93LC56 | S93A56 | S-93A56A | S-93A56B | S-93L56AD | ST93CS56 | ST93CS57 | T93C56 | T93C56A | TMC93LC56 | TMC93LC57 | TU93C56 | UG93C56-A | UG93C56-C | W93C56 | W93C56B | XL93C56 | XL93LC56 | XL93LC56A | XL93LC56ARY | XL93LC56B | XL93LC56BRY | XL93LC56RY | Y93LC56-A
• 93..66 (4kb): 93AA66 | 93AA66A | 93AA66B | 93AA66C | 93C66 | 93C66A | 93C66B | 93C66C | 93CX66 | 93LC66 | 93LC66A | 93LC66B | 93LC66C | 93S66 | 93X66 | A93C66 | AF93BC66 | AK93C66 | AM93LC66 | AT93C66 | AT93C66A | AT93C66B | AT93C66C | AT93C66D | AT93C66E | BL93C66 | BR93A66 | BR93C66 | BR93L66 | BR93LC66 | CAT93C66 | CAT93C66A | CAT93C66AH | CAT93C66B | CAT93C66H | CAT93C66R | CAT93HC66 | CR93C66 | EC93C66A | EM93LC66 | FM93C66 | FM93C66A | FT93C66 | FT93C66A | GSC93BC66A | GT93C66 | GT93C66A | HT93LC66-A | IN93AA66A | IN93AA66B | IN93AA66C | IN93LC66A | IN93LC66B | IN93LC66C | IS93C66-3 | IS93C66A | IS93C66AGR | IS93C66B | IS93C66BGR | IS93C66D | IS93C66DGR | K93C66 | KM93C66 | KM93C66GD | KM93C66V | KM93C66VGD | KM93C67 | KM93C67GD | KM93C67V | M93C66 | M93S66 | MC93C66 | MM93C66-3 | MM93C66-3GR | NM93C66 | NM93C66A | NM93C66L | NM93C66LZ | NM93CS66 | PTK93LC66 | S93662 | S93663 | S93A66 | S93A66A | S-93A66A | S-93A66B | S-93L66AD | S93VP662 | S93VP663 | S93WD662 | S93WD663 | T93C66 | T93C66A | TMC93LC66 | TU93C66 | UG93C66-A | W93C66 | W93C66B | XL93C66 | XL93LC66 | XL93LC66A | XL93LC66ARY | XL93LC66B | XL93LC66BRY | XL93LC66RY | Y93LC66-A
• 93..76 (8kb): 93AA76 | 93AA76A | 93AA76B | 93AA76C | 93C76 | 93C76A | 93C76B | 93C76C | 93CX76 | 93LC76 | 93LC76A | 93LC76B | 93LC76C | 93X76 | A93C76 | AF93BC76 | AK93C76 | AM93LC76 | AT93C76 | AT93C76A | AT93C76B | AT93C76C | AT93C76D | AT93C76E | BL93C76 | BR93A76 | BR93C76 | BR93L76 | BR93LC76 | CAT93C76 | CAT93C76A | CAT93C76AH | CAT93C76B | CAT93C76H | CAT93C76R | CAT93HC76 | CR93C76 | EC93C76A | EM93LC76 | FM93C76 | FM93C76A | FT93C76 | FT93C76A | GSC93BC76A | GT93C76 | GT93C76A | HT93LC76-A | IN93AA76A | IN93AA76B | IN93AA76C | IN93LC76A | IN93LC76B | IN93LC76C | IS93C76-3 | IS93C76A | IS93C76AGR | IS93C76B | IS93C76BGR | IS93C76D | IS93C76DGR | K93C76 | KM93C76 | KM93C76GD | KM93C76V | KM93C76VGD | M93C76 | MC93C76 | MM93C76-3 | MM93C76-3GR | NM93C76 | NM93C76A | NM93C76L | NM93C76LZ | PTK93LC76 | S-93A76A | S-93A76B | S-93L76AD | T93C76 | T93C76A | TMC93LC76 | W93C76 | W93C76B | XL93C76 | XL93LC76 | XL93LC76A | XL93LC76ARY | XL93LC76B | XL93LC76BRY | XL93LC76RY
• 93..86 (16kb): 93AA86 | 93AA86A | 93AA86B | 93AA86C | 93C86 | 93C86A | 93C86B | 93C86C | 93CX86 | 93LC86 | 93LC86A | 93LC86B | 93LC86C | 93X86 | A93C86 | AF93BC86 | AK93C86 | AM93LC86 | AT93C86 | AT93C86A | AT93C86B | AT93C86C | AT93C86D | AT93C86E | BL93C86 | BR93A86 | BR93C86 | BR93L86 | BR93LC86 | CAT93C86 | CAT93C86A | CAT93C86AH | CAT93C86B | CAT93C86H | CAT93C86R | CAT93HC86 | CR93C86 | EC93C86A | EM93LC86 | FM93C86 | FM93C86A | FT93C86 | FT93C86A | GSC93BC86A | GT93C86 | GT93C86A | HT93LC86-A | IN93AA86A | IN93AA86B | IN93AA86C | IN93LC86A | IN93LC86B | IN93LC86C | IS93C86-3 | IS93C86A | IS93C86AGR | IS93C86B | IS93C86BGR | IS93C86D | IS93C86DGR | K93C86 | KM93C86 | KM93C86GD | KM93C86V | KM93C86VGD | M93C86 | MC93C86 | MM93C86-3 | MM93C86-3GR | NM93C86 | NM93C86A | NM93C86L | NM93C86LZ | PTK93LC86 | S93A86 | S93A86A | S-93A86A | S-93A86B | S-93L86AD | T93C86 | T93C86A | TMC93LC86 | W93C86 | W93C86B | XL93C86 | XL93LC86 | XL93LC86A | XL93LC86ARY | XL93LC86B | XL93LC86BRY | XL93LC86RY

EEPROM SPI 90…

• BR9010 | BR9020 | BR9040

EEPROM 1-wire

• DS2430A | DS2431 | DS2433 | DS24B33 | DS2436

FLASH SPI 25...

Obsługa pamięci FLASH niskonapięciowych (1.5V, 1.8V, 2.5V) oraz standardowych (3.3V)

• 25..05 (512kb): A25L05P | A25L512 | A25L512A | A25LS512A | AC25LV512 | AT25DL5121 | AT25DN512C | AT25F512 | AT26DF5121 | EN25B05 | EN25F05 | EN25P05 | F25D512Q | F25L0512 | F25L05P | F25L05PA | F25L512P | F25L512Q | GD25D05C | GD25Q05 | GD25WD05C | KH25L512 | M25P05 | M25P05-A | MS25X512 | MX25L512 | MX25L5121 | MX25L5121E | MX25L512C | MX25L512E | MX25R512F | MX25U5121E | MX25V512 | MX25V5121E | MX25V512C | MX25V512E | MX25V512F | PM25LD512 | PM25LV512 | PM25LV512A | SA25F005 | SST25VF512 | SST25VF512A | SST25WF512 | SST25WF512B | W25Q05CL | W25Q05CV | W25X05CL
• 25..010 (1Mb): A25L010 | A25L010A | A25L10P | AC25LV010 | AT24F1024 | AT25DN011 | AT25FS010 | EN24LF10 | EN25B10 | EN25F10 | EN25LF10 | EN25P10 | EN25S10 | ES25P10 | F25L01P | F25L01PA | GD25D10C | GD25Q10 | GD25WD10C | IS25CD010 | IS25LQ010B | KH25L1005 | LE25FU106 | LE25FU106B | M25P10 | M25P10-A | M25PE10 | MS25X10 | MX25L1005 | MX25L1005C | MX25L1005ZM | MX25L1006 | MX25L1006E | MX25L1021 | MX25L1021E | MX25L1025 | MX25L1025C | MX25L1026 | MX25L1026E | MX25R1035F | MX25U1001E | MX25V1006 | MX25V1006E | MX25V1035F | NX25P10 | PM25LD010 | PM25LV010 | PM25LV010A | S25FL001D | SA25F010 | SST25VF010 | SST25VF010A | SST25WF010 | TS25L010A | W25D10V | W25P10V | W25Q10BV | W25Q10CL | W25Q10CV | W25Q10EW | W25X10AV | W25X10BL | W25X10BV | W25X10CL | W25X10L | W25X10V
• 25..020 (2Mb): A25L020 | A25L020C | A25L20P | AT25DF021 | AT25F2048 | AT25F2048N | AT25PE20 | AT25PE20[P264] | EN25B20 | EN25F20 | EN25LF20 | EN25P20 | EN25S20 | ES25P20 | F25D02P | F25D02QA | F25L02P | F25L02PA | GD25D20C | GD25Q20B | GD25Q21B | GD25WD20C | IS25LQ020 | IS25WD020 | IS25WP020D | IS25WQ020 | KH25L2005 | LE25FU206 | LE25S20 | LE25U20 | M25P20 | M25PE20 | M25U2033E | MS25X20 | MX25L2005 | MX25L2005C | MX25L2005ZM | MX25L2006 | MX25L2025C | MX25L2026E | MX25L26C | MX25R2035F | MX25U2032E | MX25U2033E | MX25U2035F | MX25V2006E | MX25V2033F | MX25V2035F | NX25P20 | PM25LD020 | PM25LV020 | S25FL002D | SA25F020 | SST25VF020 | SST25VF020A | SST25VF020B | SST25WF020 | SST25WF020B | TS25L020A | W25D20V | W25P20V | W25Q20BW | W25Q20CL | W25Q20CV | W25Q20EW | W25X20BL | W25X20BV | W25X20CL | XM25QU20B
• 25..040 (4Mb): A25L040 | A25L040A | A25L40P | AT25DF041 | AT25DF041A | AT25F4096 | AT25FF041A | AT25FS040 | AT25PE40 | AT25PE40[P264] | AT25SF041 | AT25XE041D | AT26F004 | EN25B40 | EN25F40 | EN25LF40 | EN25P40 | EN25Q40 | EN25S40 | EN25T40 | ES25M40 | ES25P40 | F25D04Q | F25D04QA | F25L004 | F25L04P | F25L04PA | GD25D40C | GD25LQ40 | GD25Q40B | GD25Q41B | GD25WD40C | IS25LD040 | IS25LQ040B | IS25WD040 | IS25WP040 | IS25WP040D | IS25WQ040 | KH25L4005A | KH25L4006E | LE25FS406 | LE25FU406B | LE25S40 | LE25U40 | M25P40 | M25PE40 | MS25X40 | MX25L4005 | MX25L4005A | MX25L4005C | MX25L4006E | MX25L4025C | MX25L4026E | MX25R4035F | MX25U4032F | MX25U4033E | MX25U4035 | MX25U4035F | MX25V4005 | MX25V4005C | MX25V4006E | MX25V4035 | NX25P40 | PM25LD040 | PM25LV040 | S25FL004 | S25FL004A | S25FL004K | S25FL204K | SA25F040 | SST25VF040 | SST25VF040A | SST25VF040B | SST25WF040 | SST25WF040B | W25D40V | W25P40V | W25Q40BL | W25Q40BV | W25Q40BW | W25Q40CL | W25Q40EW | W25X40AL | W25X40AV | W25X40BL | W25X40BV | W25X40CL | W25X40L | W25X40V | XM25QH40B | XM25QU40B
• 25..080 (8Mb): A25L080 | A25L80P | AT25DF081 | AT25DF081A | AT25DL081 | AT25FF081A | AT25PE80 | AT25PE80[P264] | AT25SF081 | AT25XE081D | AT26DF081 | EN25B80 | EN25D80 | EN25F80 | EN25P80 | EN25Q80 | EN25Q80A | EN25S80 | EN25T80 | ES25M80 | ES25P80 | F25D08QA | F25L08QA | FM25Q08 | FM25Q08A | GD25D80C | GD25LQ80 | GD25Q80B | GD25Q80C | GD25WD80C | IS25LP080D | IS25LQ080 | IS25LQ080B | IS25WP080 | IS25WP080D | KH25L8005 | KH25L8006E | KH25L8036D | LE25S81 | M25P80 | M25PE80 | M25PX80 | M25X80 | MS25X80 | MX25L8005 | MX25L8005ZM | MX25L8006E | MX25L8008E | MX25L8035E | MX25L8036E | MX25L8073E | MX25L8075E | MX25R8035F | MX25U8032E | MX25U8033E | MX25U8035 | MX25U8035E | MX25U8035F | MX25V8005 | MX25V8006E | MX25V8035F | NX25P80 | PM25LV080 | PM25LV080B | S25FL008A | S25FL008K | S25FL208K | SST25VF080B | SST25WF080 | SST25WF080B | TS25L80P | W25D80V | W25P80V | W25Q40CL | W25Q80BL | W25Q80BV | W25Q80BW | W25Q80DL | W25Q80DV | W25Q80EW | W25Q80FV | W25Q80JV | W25X80AL | W25X80AV | W25X80BV | W25X80L | W25X80V | XM25QH80B | XM25QU80B
• 25..016 (16Mb): A25L016 | A25L16P | A25LQ16 | AT25DF161 | AT25DL161 | AT25FF161A | AT25PE16 | AT25PE16[P528] | AT25SF161 | AT25XE161D | AT26DF161 | EN25B16 | EN25D16 | EN25F16 | EN25P16 | EN25Q16A | EN25QA16 | EN25QH16 | EN25S16 | EN25T16 | ES25M16 | ES25P16 | F16 | F25L016 | F25L16P | F25L16PA | F25L16Q | F25L16QA | FM25Q16 | FM25Q16A | FM25Q16B | FM25S16A | GD25LQ16 | GD25Q16B | IS25LP016D | IS25LQ016B | IS25WP016 | IS25WP016D | KH25L1605A | KH25L1605D | KH25L1606E | KH25L1635D | LE25S161 | M25P16 | M25PE16 | M25PX16 | M25X16 | MS25X16 | MX25L1605 | MX25L1605A | MX25L1605D | MX25L1606E | MX25L1608D | MX25L1608E | MX25L1633E | MX25L1635D | MX25L1635E | MX25L1636D | MX25L1636E | MX25L1673E | MX25L1675E | MX25R1635F | MX25U1633F | MX25U1635E | MX25U1635F | MX25V1635F | N25Q016 | NX25P16 | PM25LV016 | PM25LV016B | Q16 | QB25F016S33B | QH25F016S33B | S25FL016 | S25FL016A | S25FL016K | S25FL116K | S25FL216K | SA25F160 | SST25VF016B | TS25L16AP | TS25L16BP | TS25L16P | W25Q16BF | W25Q16BV | W25Q16CL | W25Q16CV | W25Q16DV | W25Q16DW | W25Q16FW | W25Q16JL | W25Q16JV | W25Q16VF | W25X16AL | W25X16AV | W25X16BV | W25X16V | XM25QH16B | XM25QU16B
• 25..032 (32Mb): A25L032 | A25LQ32A | AT25DF321 | AT25DF321A | AT25FF321A | AT25QL321 | AT25SF321 | AT25SL321 | AT25XE321D | AT26DF321 | AT26SD321 | ATXP32 | EN25B32 | EN25F32 | EN25P32 | EN25Q32B | EN25QA32 | EN25QH32 | EN25S32 | ES25P32 | F25L32P | F25L32PA | F25L32Q | F25L32QA | F32 | FM25Q32 | FM25Q32A | GD25B32C | GD25LB32D | GD25LQ32 | GD25LQ32C | GD25Q32B | GD25Q32C | IS25CQ032 | IS25CQ032A | IS25LP032D | IS25LQ032B | IS25WP032 | IS25WP032D | KH25L3205D | KH25L3206E | M25P32 | M25PE32 | M25PX32 | M25X32 | MX25L3205A | MX25L3205D | MX25L3206 | MX25L3206E | MX25L3208D | MX25L3208E | MX25L3225D | MX25L3233F | MX25L3235D | MX25L3235E | MX25L3236D | MX25L3236E | MX25L3236F | MX25L3237D | MX25L3239E | MX25L3255E | MX25L3273E | MX25L3273F | MX25L3275E | MX25R3235F | MX25U3235E | MX25U3235F | MX25U3273F | N25Q032 | NX25P32 | Q32 | QB25F320S33B | QH25F320S33B | S25FL032 | S25FL032A | S25FL032K | S25FL032P | S25FL132K | SA25F320 | SST25VF032B | W25Q32BV | W25Q32DW | W25Q32FV | W25Q32FW | W25Q32JV | W25Q32JW | W25Q32V | W25Q32VF | W25X32AV | W25X32BV | W25X32V | XM25QH32B | XM25QU32B | XM25QW32C
• 25..064 (64Mb): A25LMQ64 | A25LQ64 | AT25DF641A | AT25QF641 | AT25QL641 | AT25SF641 | AT25SL641 | ATXP64 | EN25F64 | EN25Q64 | EN25QA64 | EN25QH64 | EN25S64 | F25D64QA | F25L64QA | F64 | FM25Q64 | FM25Q64A | GD25B64 | GD25B64C | GD25LB64C | GD25LQ64B | GD25LQ64C | GD25Q64B | GD25Q64C | IS25LP064 | IS25LP064A | IS25WP064 | IS25WP064A | KH25L6405D | KH25L6406E | M25P64 | M25PX64 | MT25QL064A | MT25QU064A | MX25L64 | MX25L6405 | MX25L6405D | MX25L6406E | MX25L6408 | MX25L6408D | MX25L6408E | MX25L6433 | MX25L6433F | MX25L6435 | MX25L6435E | MX25L6436E | MX25L6436F | MX25L6439 | MX25L6439E | MX25L6445E | MX25L6455E | MX25L6456 | MX25L6456E | MX25L6456F | MX25L6465E | MX25L6473E | MX25L6473F | MX25L6475E | MX25R6435F | MX25U6435 | MX25U6435E | MX25U6435F | MX25U6473 | MX25U6473F | N25Q064 | N25Q064A11 | N25Q064A13 | Q64 | QB25F640S33B | QH25F640S33B | S25FL064A | S25FL064K | S25FL064L | S25FL064P | S25FL164K | S25FS064S | S64 | SST25VF064C | W25Q64BV | W25Q64CV | W25Q64DW | W25Q64FV | W25Q64FW | W25Q64JV | W25Q64JW | W25Q64VF | W25X64BV | W25X64V | XM25QH64A | XM25QU64A | XM25QW64C
• 25..128 (128Mb): AT25QF128A | AT25QL128A | AT25SL128A | ATXP128 | EN25Q128 | EN25QA128 | EN25QH128 | EN25QH128A | F25D128QA | F25L128QA | GD25B127D | GD25B128 | GD25LB128D | GD25LQ128 | GD25LQ128C | GD25LQ128D | GD25Q127 | GD25Q128B | GD25Q128C | IS25LP128 | IS25LP128F | IS25WP128 | IS25WP128F | KH25L12845E | M25P128 | MT25QL128A | MT25QU128A | MX25L128 | MX25L12805D | MX25L12835E | MX25L12835F | MX25L12836E | MX25L12839F | MX25L12845E | MX25L12845G | MX25L12850F | MX25L12855E | MX25L12855F | MX25L12865E | MX25L12865F | MX25L12873F | MX25L12873G | MX25L12875F | MX25LM12845G | MX25U128 | MX25U12835F | MX25U12873F | MX25U12890F | MX25UM12845G | N25Q128 | N25Q128A11 | N25Q128A13 | Q128 | S25FL127S | S25FL128K | S25FL128L | S25FL128P | S25FL128S | S25FL129P | S25FS128S | W25Q128BV | W25Q128FV | W25Q128FW | W25Q128JV | W25Q128JW | XM25QH128A | XM25QU128C | XM25QW128C
• 25..256 (256Mb): EN25QA256 | EN25QH256 | EN25QH256A | EN25S256 | GD25B256D | GD25B257D | GD25LB256D | GD25LQ256 | GD25LQ256C | GD25LQ256D | GD25Q256 | GD25Q257D | IS25LP256D | IS25LP256E | IS25WP256D | MT25QL256A | MT25QU256A | MX25L25635E | MX25L25635F | MX25L25639F | MX25L25645G | MX25L25655E | MX25L25655F | MX25L25673G | MX25L25735E | MX25L25735F | MX25L25835E | MX25L25855E | MX25LM25645G | MX25U25635F | MX25U25645G | MX25UM25645G | N25Q256A11 | N25Q256A13 | N25Q256A33 | N25Q256A73 | N25Q256A81 | N25Q256A83 | S25FL256L | S25FL256P | S25FL256S | S25FS256S | W25Q256FV | W25Q256JV | W25Q256JW | W25Q257FV | W25Q257JV | XM25QH256B | XM25QU256B | XM25QW256C
• 25..512 (512Mb): GD25Q512 | IS25LE512M | IS25LP512M | IS25WP512M | MT25QL512A | MT25QU512A | MX25L51237G | MX25L51245G | MX25L51255G | MX25LM51245G | MX25U51245G | MX25UM51245G | MX66L51235F | MX66U51235F | S25FL512S | S25FS512S | W25Q512JV
• 25..01 (1Gb): MT25QL01G | MT25QU01G | W25Q01JV
• 25..02 (2Gb): MT25QL02G | MT25QU02G

FLASH SPI 26...

SST26VF040A | SST26WF040B | SST26WF040BA | SST26VF080A | SST26WF080B | SST26WF080BA | SST26VF016 | SST26VF016B | SST26WF016B | SST26WF016BA | SST26VF032 | SST26VF032B | SST26VF032BA | SST26VF064B | SST26VF064BA | SST26VF064C | SST26VF064CA | SST26WF064C | SST26WF064CA

DATA FLASH

M45PE10 | AT45DB011 | AT45DB011D | M45PE20 | AT45DB021 | AT45DB021D | AT45DB021E | M45PE40 | AT45DB041 | AT45DB041D | AT45DB041E | M45PE80 | AT45DB081 | AT45DB081D | AT45DB081E | M45PE16 | AT45DB161 | AT45DB161D | AT45DB161E | AT45DQ161 | AT45DB321 | AT45DB321D | AT45DB321E | AT45DQ321 | AT45DB641E | AT45DB642 | AT45DB642D

SPI NAND

• (1Gb - 4Gb): GD5F1GQ4RB | GD5F1GQ4RC | GD5F1GQ4RE | GD5F1GQ4RF | GD5F1GQ4UB | GD5F1GQ4UC | GD5F1GQ4UE | GD5F1GQ4UF | IS37SML01G1 | IS38SML01G1 | MT29F1G01AAADD | MT29F1G01ABAFD | MT29F1G01ABAGD | MT29F1G01ABBFD | MT29F1G01ABBGD | TC58CVG0S3HRA | TC58CYG0S3HRA | W25N01GV | W25N01GW | W25N01JW | GD5F2GQ4RB | GD5F2GQ4RC | GD5F2GQ4RE | GD5F2GQ4RF | GD5F2GQ4UB | GD5F2GQ4UC | GD5F2GQ4UE | GD5F2GQ4UF | MT29F2G01AAAED | MT29F2G01ABAGD | MT29F2G01ABBGD | TC58CVG1S3HRA | TC58CYG1S3HRA | W25N02JW | W25N02KV | MT29F4G01ABAFD | MT29F4G01ABBFD | MT29F4G01ADAGD | TC58CVG2S0HRA | TC58CYG2S0HRA

F-RAM

FM24C04 | FM24C04B | FM24CL04 | FM24CL04B | MB85RC04V | FM24C16 | FM24C16B | FM24CL16 | FM24CL16B | FM25C160B | MB85RC16 | MB85RC16V | FM24C64 | FM24C64B | FM24CL64 | FM24CL64B | MB85RC64 | MB85RC64A | MR44V064B | FM24V01 | MB85RC128 | MB85RC128A | FM24V02 | FM24V02A | FM24W256 | MB85RC256V | FM24V05 | FM24V10 | FM24VN10 | MR44V100A | MR44V200A

FM25040 | FM25040B | FM2504B | FM25CL04B | FM25L04 | FM25L04B | FM25C160 | FM25C160B | FM25L16 | FM25L16B | MR45V032A | FM25640 | FM25640B | FM25CL64 | FM25CL64B | MB85RS64 | MB85RS64A | MR45V064B | FM25V01 | FM25V01A | MB85RS128A | MB85RS128B | FM25V02 | FM25V02A | FM25W256 | MB85RS256A | MB85RS256B | MR45V256A | FM25V05 | FM25V10 | FM25VN10 | MR45V100 | CY15B102Q | CY15V102Q | FM25H20 | FM25V20 | FM25V20A | MR45V200 | CY15B104Q | CY15V104Q | CY15B108Q | CY15V108Q

Moduły optyczne i ethernetowe (transceivery SFP/SFP+)

SFP / SFP+, QSFP / QSFP+, XFP

UWAGI:

• wymagany adapter ze złączem SFP/QSFP/XFP oraz zasilaniem (dostępny opcjonalnie),
• wsparcie dla standardu MSA (m.in. SFF-8472, SFF-8636, INF-8077i),
• możliwość zmiany nazwy producenta, modelu, numeru seryjnego, przeliczania sum kontrolnych z poziomu oprogramowania REVELPROG-IS,
• możliwość wprowadzenia hasła manufacturer/host i programowanie zabezpieczonych wkładek,
• narzędzie do łamania hasła, tzw. brute force password (szukanie hasła dla wkładek z nieznanym hasłem),

przykładowi producenci: CISCO, HP, FINISAR, NOKIA GBC, HUAWEI, GPON, JDSU, MIKROTIK, OPTEC, OPTION, WTD i inne OEM
