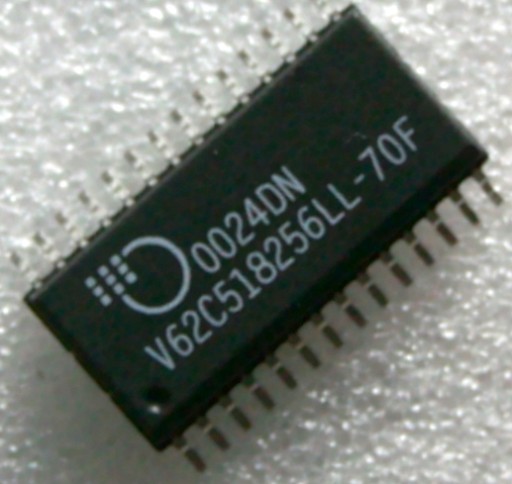

V62C518256LL70F static RAM 32K*8

V62C518256LL70F

Mosel Vitelic

32K x 8 STATIC RAM

The V62C518256 is a 262,144-bit static random access memory organized as 32,768 words by 8 bits. It is built with MOSEL VITELIC& 8217 s high performance CMOS process. Inputs and three-

state outputs are TTL compatible and allow for direct interfacing with common system bus structures.

• High-speed: 35, 70 ns
• Ultra low DC operating current of 5mA max.
• Low Power Dissipation:

  – TTL Standby: 3 mA Max.

  – CMOS Standby: 20 uA Max.

• Fully static operation
• All inputs and outputs directly compatible
• Three state outputs
• Ultra low data retention current Vcc = 2V
• Single 5V /- 10% Power Supply

Dokumentacja pod adresem: http://www.wolumen53.com/pdf/V62C518256LL-Mosel-Vitelic.pdf
