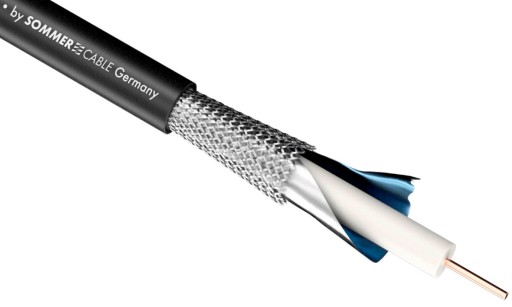

ВИДЕОКАБЕЛЬ SOMMER SC-VECTOR 75 Ом HD-SDI 50 м

50m SOMMER Video cable 75Ohm HD-SDI SC-Vector (RCB);

1 x 0,80/3,70; PVC Ø 6,00 mm; black

Pasujący wtyk to : Neutrik NBNC75BLP9 (dostępny na innej aukcji)

As swift as an arrow is the data transmission of the SC-Vector (RCB) with its 1.5 Gb/s rate which also guarantees a low return loss. Of course, the SC-Vector (RCB) can also serve as a high-quality standard video line for studio or OB van applications. With its dual shielding and outstanding damping values it offers numerous benefits compared to simple video cables. In comparison to a 0.6/3.7 video cable it allows up to 30 % longer transmission distances.

The SC-Vector (RCB) is used in OB vans, digital TV, at sporting events, live shows or other large events.

Advantages:

Low damping values for long distances

Robust and durable outer sleeve

Application:

Digital SDI/HD-SDI long distance transmission

Video transmission for OB van technology

Technical Data:

• Colour: black
• Properties: Analog
• Properties: OFC oxygen free copper
• Properties: Digital 75 ?
• Properties: SDI
• Application area: Mobile outdoor / indoor
• Application area: ELA 100 V
• Application area: Installation
• Application area: Studio / Broadcast
• Colour detailed: black
• Jacket material: PVC
• Jacket material (video): PVC
• Jacket Ø: 6 mm
• Jacket Ø (video): 6 mm
• Number of Channels (video): 1
• Inner conductor (video): 1
• Inner conductor (video): 0,5 mm²
• Inner conductor Ø (video): 0,8 mm
• AWG (video): 20
• Shielding: AL/PT-foil + Copper braiding tin-plated 85 %
• Shielding (video): AL/PT-foil + Copper braiding tin-plated 85 %
• Copper strands (video): 1
• Conductor insulation material: Gas Injected-PE
• Wire insulation material (video): Gas Injected-PE
• Shielding factor: 100 %
• Packing: bulk stock
• Velocity factor: 0,82
• Style variant: round
• Application: video cable
• Copper strand Ø (video): 0,8 mm
• Conductor insulation Ø: 3,7 mm
• Conductor insulation Ø (video): 3,7 mm
• Max. transmission distance (SDI): 220 m
• Width: 6 mm
• Height: 6 mm
• Temperature min.: -10 °C
• Temperature max.: 80 °C
• Weight per 1 m: 40 g
• Fire load per m: 0,16 kWh
• UV-resistant: yes
• Impedance: 75 ?
• Impedance (video): 75 ?
• Cond. resistance per 1 km: 37 ?
• Conductor resistance at 1 km (video): 37 ?
• Shield. resistance per 1 km: 20 ?
• Capacity wire/electic screen at 1m (video): 52,9 pF
