Индуктивный датчик Balluff BES0350 M8x1 1,5 мм

Czujnik indukcyjny Balluff

BES0350

BES 516-324-SA46-S49-C

Display/Operation

Function indicator yes

Power indicator no Electrical connection

Connection M8x1-Connector, 3-pole

Polarity reversal protected yes

Short-circuit protection yes

Electrical data

Hysteresis H max. (% of Sr) 15.0 %

Load capacitance max. at Ue 0.5 µF

MTTF (40 °C) 830 a

No-load current lo max., undamped 3 mA

Operating voltage Ub 10…30 VDC

Output resistance Ra 33.0 kOhm + D

Pollution degree 3

Protected against miswiring yes

Rated insulation voltage Ui 250 V AC

Rated operating current Ie DC 200 mA

Rated operating voltage Ue DC 24 V

Rated short circuit current 100 A

Ready delay tv max. 20 ms

Repeat accuracy max. (% of Sr) 5.0 %

Residual current Ir max. 20 µA

Switching frequency 3000 Hz

Utilization category DC -13

Voltage drop static max. 2.5 V

Environmental conditions

Ambient temperature -25…70 °C

Protection class II

Protection type IEC 60529 IP68

Functional safety

Diagnostic coverage 0 %

Functional safety no Mission Time 20 a

General data

Approval/Conformity CE

cULus

EAC

Basic standard IEC 60947-5-2

Material

Housing material Stainless steel

Material sensing surface PBT

Mechanical data

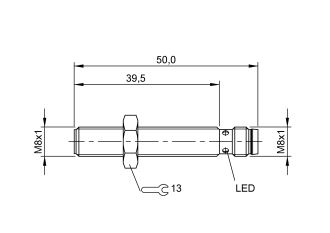

Dimension Ø 8 x 50 mm

Installation for flush mounting

Size M8x1

Tightening torque 8 Nm

Output/Interface

Switching output PNP Normally open (NO)

Range/Distance

Assured operating distance Sa 1.2 mm

Range 1.5 mm

Rated operating distance Sn 1.5 mm
