АДАПТЕР 6x5 QFN-8 (MLF-8 MLP-8 WSON-8 WSOP-8) DIP8

Adapter QFN-8 5x6mm (MLF-8, MLP-8, WSOP-8, WSON-8) -> DIL-8 (DIP-8).

Podstawka jest kompatybilna z układami w obudowach SMD 8-nóżkowych o wymiarach 5x6 mm lub 5,1x6,1 mm i rastrze 1,27 mm. Firma podstawki: PLASTRONICS (made in USA)

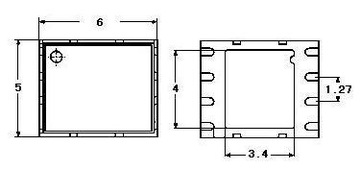

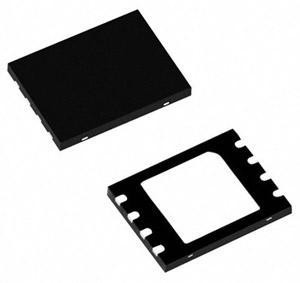

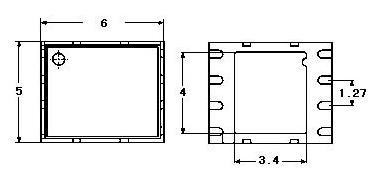

Różni producenci różnie oznaczają tego typu obudowę, najpopularniejsze oznaczenia to: QFN-8, MLF-8, MLP-8, WSOP-8, WSON-8 (wymiar zewnętrzny 5x6mm, raster 1,27mm)

Przykładowe układy:

ATMEL, ADESTO (5x6 UDFN-8, 6x5 VDFN-8):

AT25DF021A, AT45DF041A, AT25DF041B, AT25DF081A, AT25DF321A, AT25DF641A, AT25XE021A, AT25XE041B, AT25XV041B, AT25DL081, AT25DL161, AT25DQ321, AT25PE20-MHN, AT25PE40-MHN, AT25PE80-MHN, AT25PE16-MHN, AT26DF161, AT26DF161A, AT26F004, AT45DB011D, AT45DB021D, AT45DB021E, AT45DB041D, AT45DB041E, AT45DB081D, AT45DB081E, AT45DB161D, AT45DB161E, AT45DB321D, AT45DB321E, AT45DB641E, AT45DQ161, AT45DQ321

GIGADEVICE (WSON8 6x5mm)

GD25LQ05C, GD25LQ10C, GD25LQ20C, GD25LQ40C, GD25LQ80C, GD25Q80B, GD25Q80C, GD25Q16B, GD25Q16C, GD25VQ16B, GD25VQ16C, GD25LQ32C, GD25LQ32D, GD25Q32B, GD25Q32C, GD25VQ32B, GD25VQ32C, GD25LQ64C, GD25Q64B, GD25Q64C, GD25VQ64C, GD25LQ128C, GD25LQ128D, GD25Q127C, GD25VQ127, GD25LQ256C, GD25LQ256D

ISSI (5x6 WSON-8):

IS25CD512, IS25CQ032, IS25LD020, IS25LD040, IS25LP064, IS25LP128, IS25LQ010B, IS25LQ016, IS25LQ016B, IS25LQ020B, IS25LQ025B, IS25LQ032B, IS25LQ040B, IS25LQ080, IS25LQ080B, IS25LQ512B, IS25WD020, IS25WD040, IS25WQ080, IS25LP128, IS25WP128, IS25LP128F, IS25WP128F, IS25LP256D, IS25WP256D

MACRONIX (8-WSON 6x5):

MX25L2006, MX25V2006, MX25U2033, MX25U4035, MX25L4006, MX25V4006, MX25U4033, MX25L8006, MX25V8006, MX25U8035, MX25U8033, MX25V8035, MX25U1635, MX25L1606, MX25L1633, MX25U3235, MX25L3206, MX25L3235, MX25U6435, MX25L6435, MX25L12835, MX25U12835, MX25L12839, MX25L25645, MX25L25635, MX25L25639, MX25L25655, MX2525735

MICROCHIP (8-WSON 6x5, 8-WDFN 5x6):

SST25PF020B, SST25PF040B, SST25PF080B, SST25VF040B, SST25VF080B, SST25WF020, SST26VF016B, SST26VF016BA, SST26VF016BAT, SST26VF016BT, SST26VF032, SST26VF032A, SST26VF032B, SST26VF032BA, SST26VF032BAT, SST26VF032BT, SST26VF064B, SST26VF064BA, SST26VF064BAT, SST26VF064BT, SST26WF016B,nota SST26WF016BA, SST26WF016BAT, SST26WF016BT, SST26WF040B, SST26WF040BA, SST26WF040BAT, SST26WF040BT, SST26WF080B, SST26WF080BA, SST26WF080BAT, SST26WF080BT, SST26WF064C

MICRON (8-PDFN 5x6, 8-QFN 5x6, 8-VDFN 6x5, 8-VDFPN 6x5 MLP8, 8-VFQFPN 6x5):

M25P05, M25P10, M25P16, M25P20, M25P32, M25P40, M25P80, M25PE10, M25PE16, M25PE20, M25PE40, M25PE80, M25PX16, M25PX32, M25PX80, M45PE10, M45PE10S, M45PE16, M45PE20, M45PE40, M45PE40S, M45PE80, N25Q032A11EF640E, N25Q032A11EF640F, N25Q032A13EF640E, N25Q032A13EF640F, N25Q064A11EF640E, N25Q064A11EF640F TR, N25Q064A13EF640E, N25Q064A13EF640F, N25Q128A11EF740E, N25Q128A11EF740F TR, N25Q128A13EF740E, N25Q128A13EF740F TR, N25W032A11EF640E, N25W032A11EF640F TR, N25W064A11EF640E, N25W064A11EF640F TR, N25W128A11EF740E, N25W128A11EF740F TR, N25Q256, N25W256, MT25QL128ABA1EW7, MT25QU128ABA1EW7, MT25QL256ABA1EW7, MT25QU256ABA1EW7

ON Semicondutor (8-VFDN/VSONT 6x5):

LE25U81AQETXG, LE25S81QETXG, LE25W81QES00-AH-1

Spansion (8-USON 5x6, 8-WSON 6x5):

S25FL116K0XNFI013, S25FL116K0XNFI013, S25FL116K0XNFI013, S25FL116K0XNFI011, S25FL116K0XNFI010, S25FL032P0XNFI011, S25FL132K0XNFI011, S25FL132K0XNFIQ11, S25FL132K0XNFI013, S25FL132K0XNFI010, S25FL032P0XNFI010, S25FL127SABNFI101, S25FL127SABNFI103, S25FL127SABNFI100, S25FS128SAGNFI103, S25FS128SDSNFI103, S25FS128SAGNFI100, S25FS128SDSNFI100, S25FS128SDSNFI101, S25FS128SAGNFI101, S25FL256, S25FS256

WINBOND (8-WSON 6x5):

W25X10CLZPIG, W25X10VZPIG, W25X10BVZPIG, W25X20CLZPIG, W25X20VZPIG, W25X20BVZPIG, W25Q20CLZPIG, W25X40CLZPIG, W25Q40BWZPIG, W25X40VZPIG, W25X40AVZPIG, W25X40BVZPIG, W25Q40CLZPIG, W25Q80DVZPIG, W25Q80BLZPIG, W25Q80EWZPIG, W25Q80BWZPIG, W25X80VZPIG, W25X80AVZPIG, W25Q80BVZPIG, W25Q16DVZPIG, W25Q16DVZPIQ, W25Q16CLZPIG, W25Q16DWZPIG, W25X16VZPIG, W25Q16BVZPIG, W25Q16CVZPIG, W25Q32FVZPIG, W25Q32FVZPIQ, W25Q32FWZPIG, W25Q32BVZPIG, W25Q32DWZPIG, W25Q64FVZPIG, W25Q64FWZPIG, W25Q64DWZPIG, W25Q128FVPIG, W25Q128FVPIF, W25Q128FVPIQ, W25Q128FWPIG, W25Q256

Szukasz programatora do powyższych pamięci? Zobacz REVELPROG-IS.

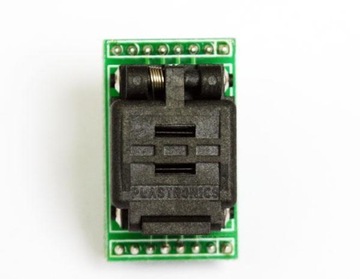

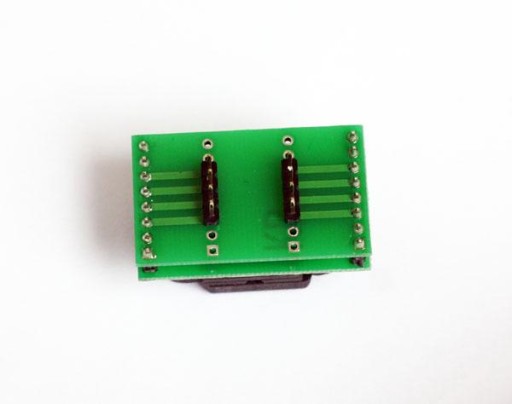

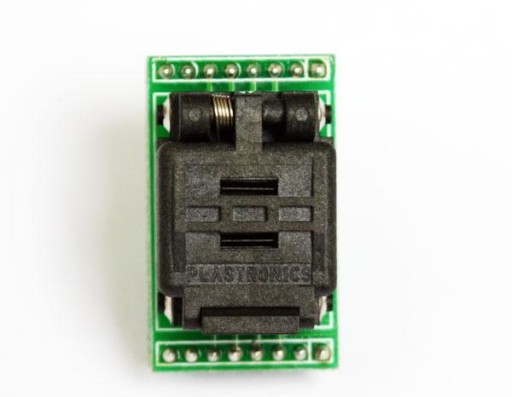

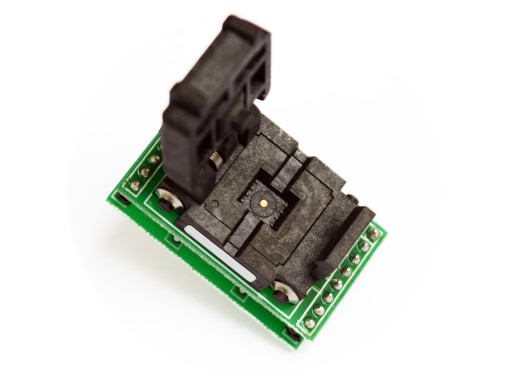

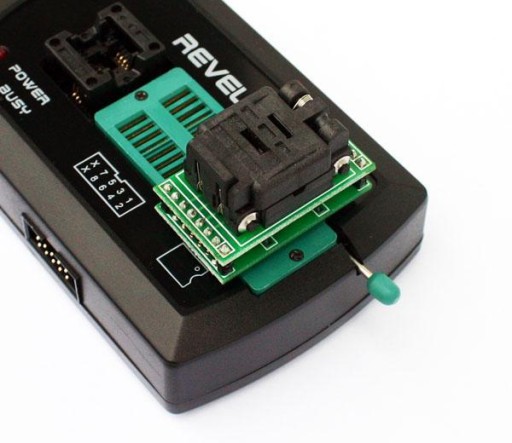

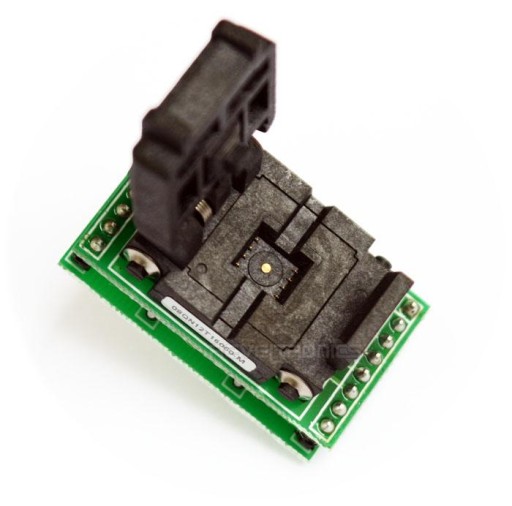

Zdjęcia adapterka oraz przykładowe zastosowanie:

W ofercie posiadamy również identyczny adapter ale na pamięci w większym rozmiarze 6x8mm.
