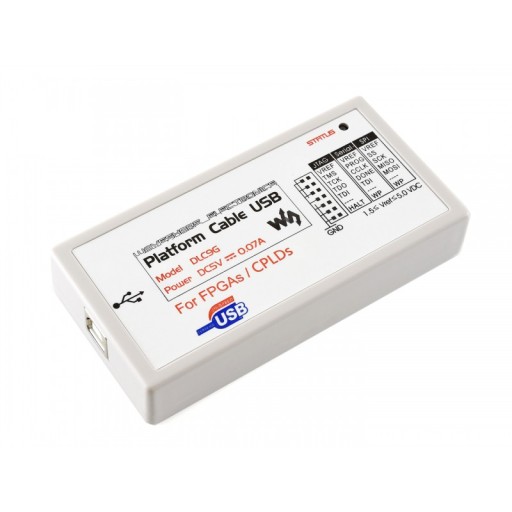

Платформа-кабель USB для программатора устройств Xilinx

The Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. It is compatible with the original XILINX Platform Cable USB.

Performance

• Using CY7C68013A+FPGA solution, fully compatible with the original XILINX Platform Cable USB
• Programs all Xilinx devices, including FPGAs / CPLDs / ISP Configuration PROMs
• Supports JTAG, Slave-Serial and SPI programming, to config all Xilinx devices
• Interfaces to devices operating at 5V / 3.3V / 2.5V / 1.8V / 1.5V
• Optional target clock frequency, supports XILINX software automatic frequency adjustment
• Firmware auto upgrade, it's possible to support more new released software and devices
• Anti-static and multi-layers signal isolation, to protect the target and the programmer itself

Supported software

• Xilinx ISE
• iMPACT
• ChipScope
• Vivado

Supported devices

• Xilinx FPGA devices: UltraScale / 7 series / Zynq / Kintex / Virtex / Artix / Spartan, etc.
• Xilinx CPLD devices: XC9500 / XC9500XL / XC9500XV / CoolRunner XPLA3 / CoolRunner-II, etc.
• Xilinx PROM devices: Platform Flash XCF00S / XCF00P / XL, etc.

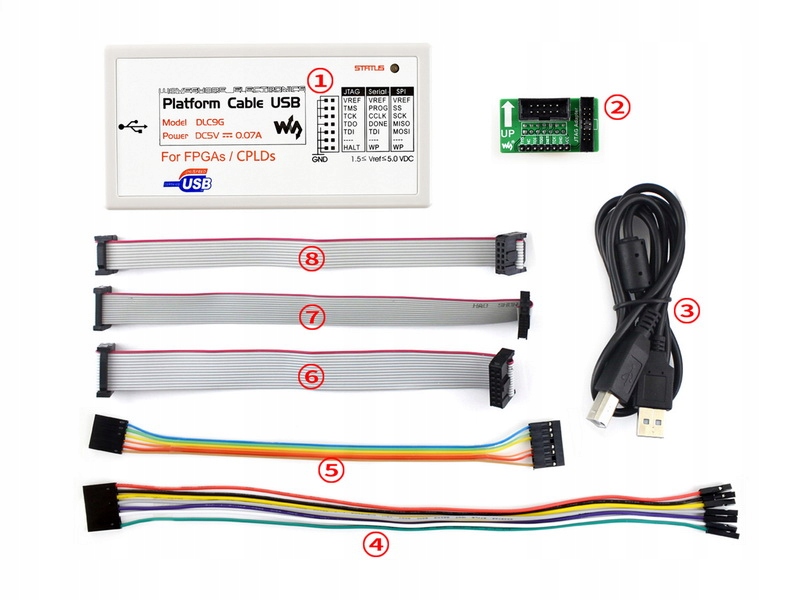

W zestawie:

1. Platform Cable USB main unit x1
2. JTAG adapter x1
3. USB cable x1
4. 8-pin header to 7-pin separated cable x1
5. 8-pin header to 6-pin header cable x1
6. 14-pin (2.54mm pitch) JTAG cable x1
7. 14-pin (2mm pitch) JTAG cable x1
8. 10-pin (2.54mm pitch) JTAG cable x1

Dodatkowe informacje: Wiki : www.waveshare.com/wiki/Platform_Cable_USB
