SIM7600E-H 4G/3G/2G/GSM/GPRS/GNSS Шляпа Raspberry Pi

4G/3G/2G/GSM/GPRS/GNSS HAT for Raspberry Pi, Based on SIM7600E-H

SIM7600E - H

Nakładka dla Raspberry Pi, która umożliwia wysyłanie wiadomości tekstowych i tworzenie połączeń w sieci GSM. Posiada również moduł GPS. Wspiera LTE CAT4 do 150 Mb/s. Komunikuje się poprzez interfejs szeregowy UART (RX, TX) za pośrednictwem komend AT.

Dodatkowe informacje: Wiki : www.waveshare.com/wiki/SIM7600E-H_4G_HAT

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, LBS base station positioning
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Onboard CP2102 USB to UART converter, for serial debugging
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• SIM card slot, supports 1.8V/3V SIM card
• TF card slot for storing data like files, messages, etc.
• Onboard audio jack and audio decoder for making telephone call
• 2x LED indicators, easy to monitor the working status
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
• Baudrate: 300bps ~ 4Mbps (default: 115200bps)
• Autobauding baudrate: 9600bps ~ 115200bps
• Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

• Power supply: 5V
• Operating voltage: 5V/3.3V (configured via jumper)
• Operating temperature: -30°C ~ 80°C
• Storage temperature: -45°C ~ 90°C
• Dimension: 56.21mm x 65.15mm

1. SIM7600E-H
2. CP2102 USB to UART converter
3. NAU8810 audio decoder
4. TXS0108EPWR voltage translator: translates 3.3V/5V into 1.8V
5. MP2128DT power chip
6. MP1482 power chip
7. Raspberry Pi GPIO header: for connecting with Raspberry Pi
8. SIM7600 control interface: for connecting with host boards like Arduino/STM32
9. SIM card slot: supports 1.8V/3V SIM card
10. TF card slot: allows file/SMS/... storage
11. 3.5mm earphone/mic jack
12. USB interface: for testing AT Commands, getting GPS positioning data, etc.
13. USB to UART interface: for serial debugging, or login to Raspberry Pi
14. MAIN antenna connector
15. AUX antenna connector
16. GNSS antenna connector
17. Power switch
18. Network status indicator
19. Power indicator
20. Operating voltage selection jumper:

    VCCIO - 3.3V: set operating voltage as 3.3V

    VCCIO - 5V: set operating voltage as 5V

21. UART selection jumper:

    A: access Raspberry Pi via USB to UART

    B: control the SIM7600 by Raspberry Pi

    C: control the SIM7600 via USB to UART

W zestawie:

1. SIM7600E-H 4G HAT x1
2. LTE Antenna x1
3. GPS External Antenna (B) x1
4. USB type A plug to micro plug cable x2
5. RPi screws pack (2pcs) x1

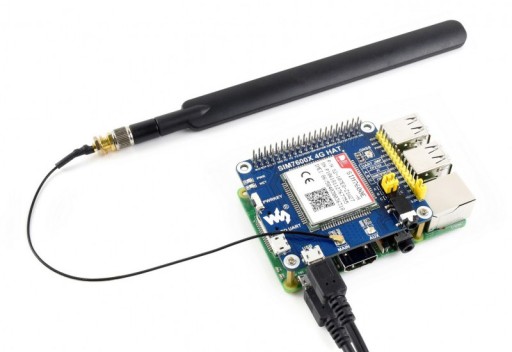

Moduły Raspberry Pi widoczne na zdjęciach nie wchodzą w skład sprzedawanego zestawu.

SKU:14952
