Płyta Asus P5VD2-MX LGA 775

OFERUJEMY PAŃSTWU

PŁYTĘ GŁÓWNĄ ASUS P5VD2-MX

P5VD2-MX

• CPU

  LGA775 socket for Intel Pentium D/Pentium 4/Celeron

  Support Intel® Presler 65nm Dual core and Core™2 Duo CPU

  Compatible with Intel 05B/05A and 04B/04A processors

  Support Intel EM64T/EIST/C1E/TM2/Hyper-Threading Technology

• Chipset

  VIA P4M890

  VIA VT8237A

• Front Side Bus

  1066/800/533 MHz

• Memory

  2 x 240-pin DIMM sockets support max. 4GB DDR2 533/400 non-ECC unbuffered memory

• Expansion Slots

  1 x PCI-E x 16

  1 x PCI-E x 1

  2 x PCI

  (Note: PCI-E x 1 and JMicron JMB363 SATA controller can not be used simultaneously)

• VGA

  Integrated Graphics, up to 64MB shared memory

  Support max. resolution to 2048 x 1536 (@75Hz)

  Support max. refresh rate to 100Hz (@1600 x 1200)

• Storage/RAID

  VIA 8237A South Bridge:

  *2 x UltraDMA 133/100/66/33

  *2 x Serial ATA with RAID 0, 1, JBOD function

  JMicron JMB363 SATA controller:

  *1 x Internal Serial ATA 3 Gb/s

  *1 x External Serial ATA 3 Gb/s (SATA On-the-Go)

  *supports RAID 0, 1 & JBOD

• LAN

  Realtek RTL8201CL 10/100 LAN Controller

• Audio

  High Definition Audio, ADI AD1986A SoundMAX 6-channel CODEC

  Support Jack-Sensing interface

• USB

  Max. 8 USB2.0 ports

• Overclocking Features

  ASUS C.P.R.(CPU Parameter Recall)

  SFS (Stepless Frequency Selection) from 100MGz up to 300MHz at 1MHz increment

  Adjustable FSB/DDR ratio. Fixed PCI-E/SATA frequencies.

• Other ASUS Special Features

  CrashFree BIOS 2

  ASUS Q-Fan

  ASUS EZ Flash

  MyLogo

• BIOS

  4 Mb Flash ROM,Award BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS 2.3

• Manageability

  WOL by PME, WOR by PME, Chassis Intruction, PXE

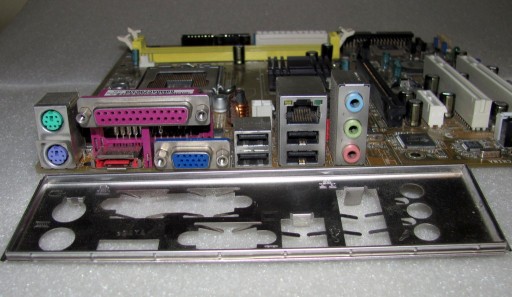

• Back Panel I/O Ports

  1 x Parallel

  1 x External SATA

  1 x VGA Port

  1 x PS/2 Keyboard

  1 x PS/2 Mouse

  1 x RJ45

  4 x USB 2.0/1.1

  6-Channel Audio I/O

• Internal I/O Connectors

  2 x USB 2.0 connectors support additional 4 USB 2.0 ports

  1 x COM connector

  CPU / Chassis fan connector

  1 x S/PDIF out connector

  Front panel Audio connector

  CD / AUX audio-in connector

  24-pin ATX Power connector

  4-pin ATX 12V Power connector

  Chassis intrusion

  System Panel

  Form Factor

  mATX Form Factor, 9.6”x 8.6”(23.5cm x 21.8cm)

K2

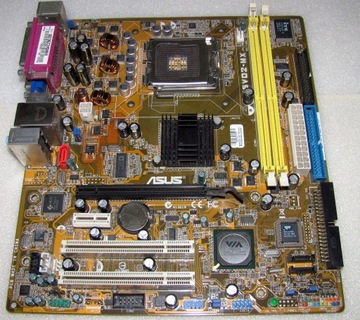

FOTO :
