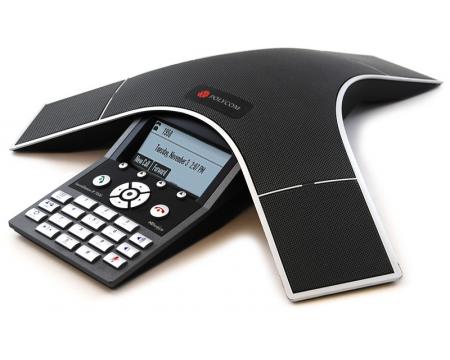

Телефон POLYCOM IP 7000 Conference Soundstation

Telefon POLYCOM IP 7000 Soundstation konferencyjny

PRODUKT UŻYWANY, NORMALNE ŚLADU UŻYTKOWANIA

Product specifications

Power

• IEEE 802.3af Power over Ethernet (built in)
• Optional external universal AC power supply: 100-240V, 1.3A, 48V/50W

Display

• Size (W x H): 255 x 128 pixels
• White LED backlight with custom intensity control

Keypad

• Standard 12-key keypad
• Context-dependent soft keys: 4
• On-hook/Off-hook, redial, mute, volume up/down
• Directional navigation wheel

Audio features

• Full-duplex: Type 1 compliant with IEEE 1329 full duplex standards
• Individual volume settings with visualfeedback for each audio path
• Voice activity detection
• Comfort noise fill
• DTMF tone generation/DTMF event RTP payload
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• Acoustic echo cancellation
• Background noise suppression
• Supported codecs
• G.711 (A-law and Mu-law)
• G.729a (Annex B)
• G.722, G.722.1
• G.722.1C
• Polycom Siren 14
• Polycom Siren 22

Loudspeaker

• Frequency: 160–22,000 Hz
• Volume: Adjustable to 88 dB at 1/2 meter peak volume

Call handling features

• Shared call/bridged line appearance
• Busy Lamp Field (BLF)
• Distinctive incoming call treatment/ call waiting
• Call timer
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Local three-way conferencing
• One-touch speed dial, redial
• Call waiting
• Remote missed call notification
• Automatic off-hook call placement
• Do not disturb function

Other features

• Local feature-rich GUI
• Time and date display
• User-configurable contact directory and call history (missed, placed, and received)
• Customizable call progress tones
• Wave file support for call progress tones
• Unicode UTF-8 character support.
• Multilingual user interface encompassing Chinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian, Japanese, Korean, Norwegian,Portuguese, Russian, Spanish, Swedish

Network and provisioning

• Ethernet 10/100 Base-T
• 2.5 mm connection port
• EX mic ports: Two Walta ports
• IP Address Configuration: DHCP and Static IP
• Time synchronization with SNTP server
• FTP/TFTP/HTTP/HTTPS server basedcentral provisioning for mass deployments.Provisioning server redundancy supported.
• Web portal for individual unit configuration
• QoS Support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
• Network Address Translation (NAT) support—static
• RTCP support (RFC 1889)
• Event logging
• Local digit map
• Hardware diagnostics
• Status and statistics
• User selectable ringer tones
• Convenient volume adjustment keys
• Field upgradeable

Environmental conditions

• Operating temperature: 32–104° F (0–40° C)
• Relative humidity: 20–85% (non-condensing)
• Storage temperature: -22–131° F (-30–55° C)
