Источник питания UPS HAT Raspberry Pi, выходная мощность 5 В

Uninterruptible Power Supply For Raspberry Pi

kod producenta: 18306

Power Your Pi Seamlessly From Power Connection OR The Backup Batteries

Charge and Power Output at the Same Time

Dodatkowe informacje: WIKI: www.waveshare.com/wiki/UPS_HAT

YouTube: https://www.youtube.com/watch?v=GumXHnv67OE

Features At A Glance

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
• Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable

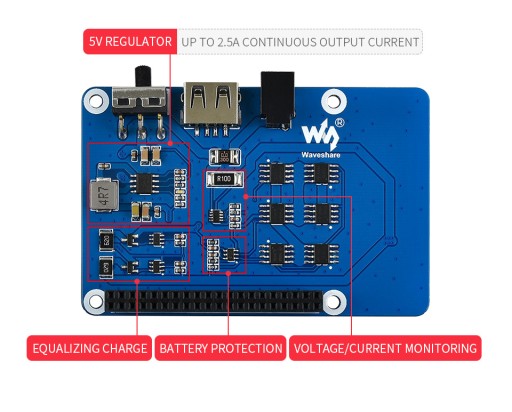

• Onboard 5V regulator, up to 2.5A continuous output current
• 5V USB output, convenient for powering other boards
• Batteries warning indicators, easy to check if the battery is connected correctly
• Comes with development resources and manual

Designed For Raspberry Pi Series

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

Real Time Monitoring

Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity

When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

Safe And Stable Circuit Design

Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse

Along With The Equalizing Charge Feature, More Safe And Stable

5V USB Output As Well

Convenient For Powering Other Boards

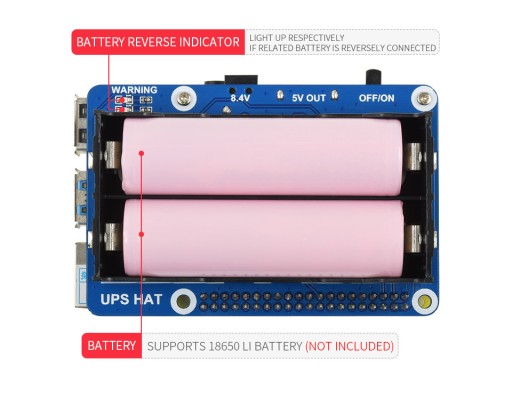

Battery Warning Indicators

Easy To Check If The Battery Is Connected Correc

Pinout Definition

Outline Dimensions

W zestawie:

1. UPS HAT x1
2. 8.4V battery charger x1
3. 2×20PIN female header x1
4. RPi screws pack (2pcs) x1

• Baterie 18650, moduł GSM oraz Raspeberry PI nie są dołączone do zestawu
• Długość baterii POWINNA być mniejsza niż 67 mm, niektóre baterie z płytką ochronną, NIE są obsługiwane.
