Серверная материнская плата TYAN S2882-D, функциональная + бесплатная

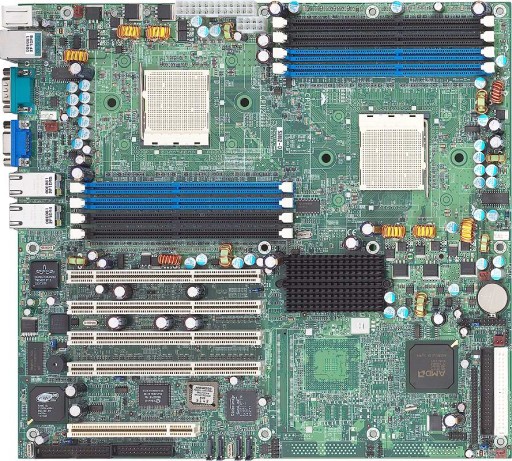

PŁYTA SERWEROWA TYAN S2882-D 2xSOCKET s940

W komplecie daję dwa procesory AMD OSP270, ramki do montażu chłodzenia i zaślepkę portów. Dla chętnych mogę dodać 4x1Gb RAM Pc400.

Płyta używana ale sprawna wyjęta z działającego serwera no i najtańsza na Allegro. Gw. rozruchowa.

W razie pytań proszę pisać, mogę też wysłać dodatkowe zdjęcia.

Specifications

Processor

• Dual µPGA 940-pin ZIF sockets

• Up to two AMD Opteron™ 200 series processors

• Supports Single and Dual Core processors

• Two onboard 3-phase VRMs

• 128-bit DDR dual-channel memory controller

(integrated in CPU)

Chipset

• AMD-8131™ HyperTransport™ PCI-X Tunnel

• AMD-8111™ HyperTransport™ I/O Hub

• Winbond™ W83627HF Super I/O ASIC

• Analog Devices ADM1027 Hardware Monitoring IC

Memory

• 128-bit dual channel memory bus

• Eight 184-pin 2.5-Volt DDR DIMM sockets

• Supports up to 32GB of Registered DDR

• Supports ECC type memory modules

• Supports DDR 266/333/400

• Supports Single/Dual/Quad Rank mem. modules

Expansion Slots (Total of five usable slots)

• Two independent 64-bit PCI-X buses

- Two 100/66/33 MHz PCI-X slots at

PCI-X bus A

- Two 133/100/66/33 MHz PCI-X slots at

PCI-X bus B

• One legacy 32-bit 33 MHz (5V) PCI  slot

Back Panel I/O Ports

• Stacked PS/2 mouse and keyboard ports

• Stacked two USB v1.1 ports + 1 RJ45 10/100

Base-T port w/ activity LED

• One 9-pin UART serial port

• One 15-pin VGA port

• Two RJ45 10/100/1000 Base-T ports with

activity LED

Integrated I/O

• One floppy connector supports up to two drives

• One 9-pin serial ports connector

• One 25-pin parallel port connector

• Four USB v1.1 ports

• Three front panel LAN activity LED connectors

System Management

• Two 3+1-pin CPU fan header with tachometer

input and smart fan control (PWM)

• Five 3-pin system fan headers with tachometer

input, three of them with smart fan control

• One 2-pin Chassis Intrusion header

• Temperature, voltage and fan monitoring

• Watchdog timer

Integrated PCI Graphics

• ATI® RAGE™ XL PCI graphics controller

• 8MB Frame Buffer of video memory

Integrated LAN Controllers

• Broadcom BCM5704C dual-channel GbE

- Two RJ-45 LAN connectors with LEDs

- Connected to PCI-X Bridge A

• Intel 82551QM 10/100 LOM

- Operating at 32-bit/33MHz PCI bus

Integrated Enhanced IDE Controller

• Dual IDE channels supports up to four EIDE

devices

• Supports for UDMA 33/66/100/133 IDE drives

and ATAPI compliant devices

Integrated SATA Controller

• Silicon Image Sil3114 SATA RAID Accelerator

• Supports S-ATA 1.0 specification

• Supports 4 channel SATA port for up to four

SATA devices

• Supports RAID 0, 1, 0+1

• Connected to legacy 32-bit 33MHz PCI bus

Integrated Dual Channel SCSI (option)

• Adaptec AIC-7902W Dual-Ch.

U320 SCSI controller

• Connects to PCI-X Bridge A

• Adaptec® ZCR card support

Intelligent Platform Management Interface Header

•  M3291, IPMI 2.0 Remote System Mgmt Card

- Renesas H8S2167 BMC Controller

- Monitoring mother board hardware

monitor sensor

- Serial-over-LAN

- Remote power control

- M3291 card is optional

BIOS

• AMI® BIOS 8.0 on 4Mbit LPC Flash ROM

• Supports APM 1.2 & ACPI 1.0

• Power Management S1, S4, and S5 support

Form Factor

• Extended ATX footprint

(13" x 12", 304.8 x 330.2 mm)

• EPS12V universal power connectors

Regulatory

• FCC Class B (Declaration of Conformity)

• CE (Declaration of Conformity).
