ЖК-дисплей 2,4 дюйма ILI9341 SPI RPI Arduino STM32

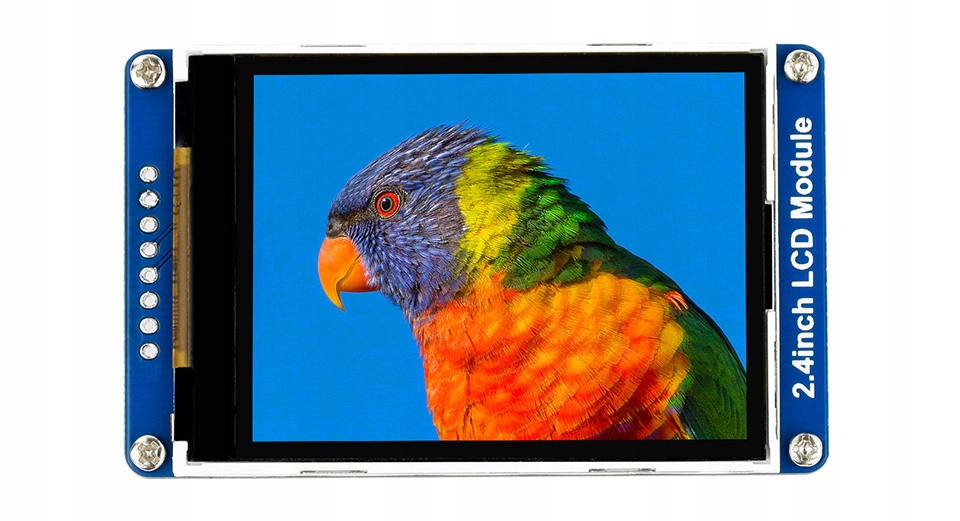

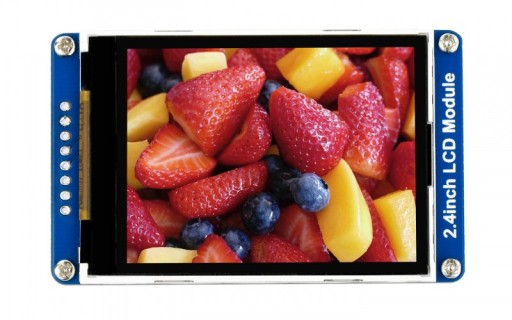

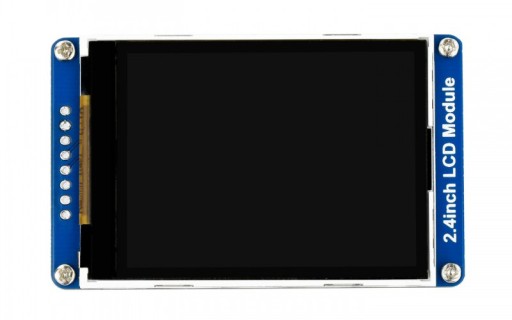

2.4" LCD DISPLAY MODULE

This is a 2.4inch LCD display module, supports 65K RGB colors. The display has 240×320 resolution, SPI Interface.

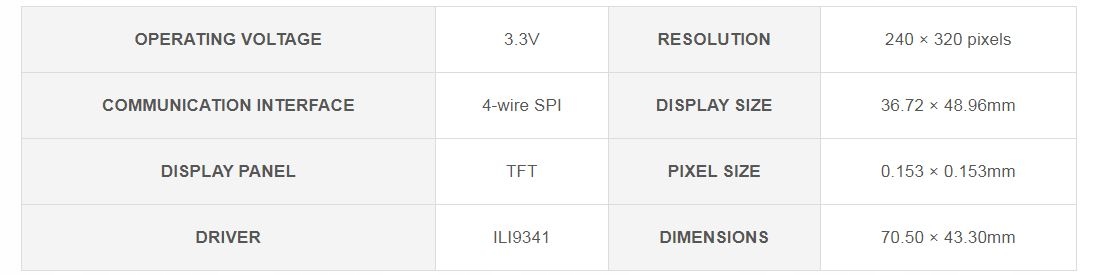

Specification

• Operating voltage: 3.3V
• Interface: SPI
• LCD Type: TFT
• Controller: IL9341
• Resolution: 240(V) x 320(H)RGB
• Display Size: 36.72（H）x 48.96（V）mm
• Pixel Size: 0.153（H）x 0.153（V）mm

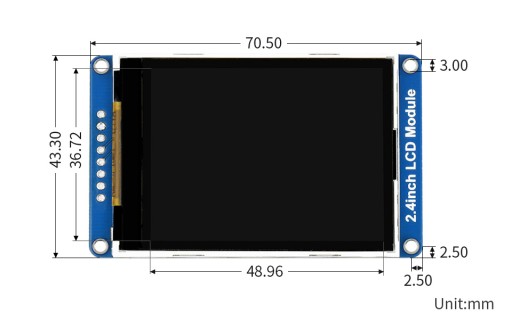

• Dimenstion: 70.5 x 43.3(mm)

Dodatkowe informacje, schemat, przykłady oprogramowania, opis konfiguracji: https://www.waveshare.com/wiki/2.4inch_LCD_Module

• 240×320 resolution, 65K RGB colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Controlled Via SPI Bus

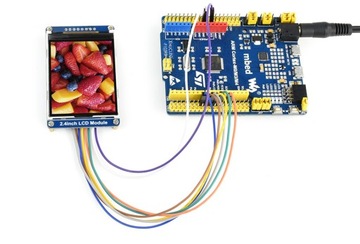

Supports Controller Boards Like Raspberry Pi/Arduino/STM32

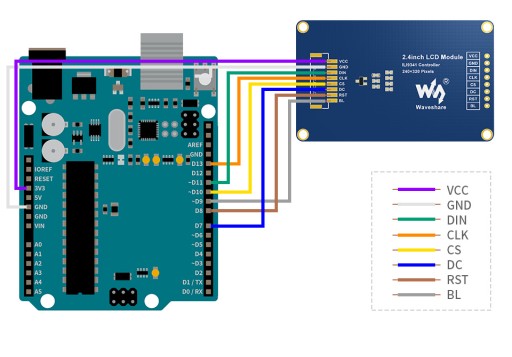

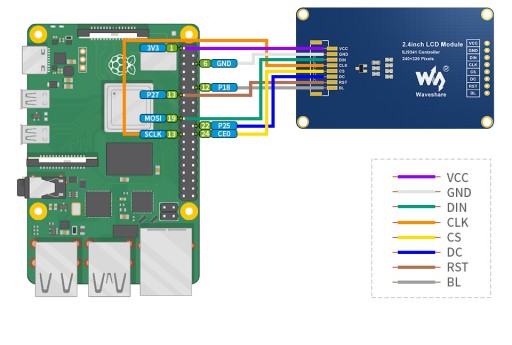

Hardware Connection

Connecting With Raspberry Pi / ARDUINO (logic level 3.3V)

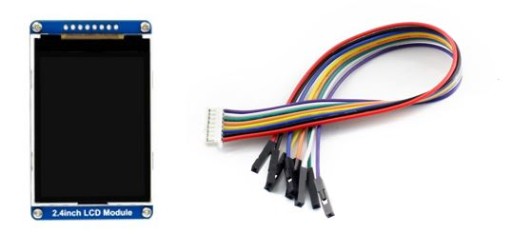

W zestawie:

1. 2.4inch LCD Module x1
2. PH2.0 8PIN 20cm cable x1
