CWWK Mini PC N150 (Upgraded N100) Firewall Appliance, OPNsense Mini Computer with 6 Port i226-V 2.5GbE LAN, F5 Fanless Micro PC DDR5 8GB RAM 128GB NVMe SSD, USB Type-C, 3-Display

---

Informacje o tym produkcie

• 2025 New Gen. N150 Processer: The CWWK S7 Mini PC features the new model Twin Lake N150 CPU (upgrade of the Alder Lake N100), with 4 cores 4 threads, up to 3.6GHz, 6MB cache. With an ultra-low TDP of just 6W, it’s perfect for energy-efficient systems. The N150 supports the official Unison-App, enabling seamless collaboration between the PC and smartphone
• DDR5 and Dual NVMe Slot: 1 x DDR5 SO-DIMM 4800MHz RAM slot, up to 32GB. With 2 x M.2 slots (PCIe3.0 x1) for 2280-sized NVMe SSDs, it also offers 1 x SATA3.0 ports for SATA SSD/HDD installation, which can be connected externally via cable. When Wi-Fi/BT wireless card module is needed, the NVME2 slot can be converted M.2 Wi-Fi slot via M.2 M-Key to M.2 E-Key adapter
• 6 x 2.5Gb High-speed LAN: Equipped with 6 x i226-V 2.5Gigabit Ethernet controllers, it can adapt to 100M/1000M/2.5G LAN. It is compatible with various common open-source soft router or virtual machine systems, like OPNsense or PVE, ideal for building network security firewalls or virtualization All-In-One

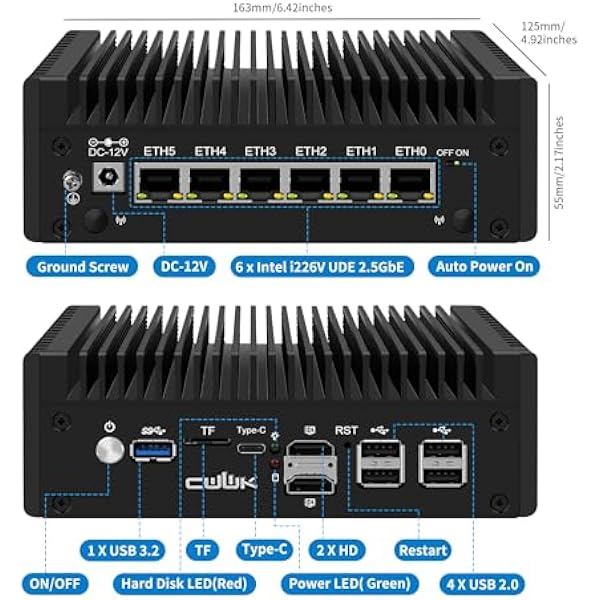

• Various External I/O Interfaces: The UHD Graphics supports hardware-accelerated 4K video output. Equipped with HD + DP + USB Type-C, supporting triple screen display, up to 4K@60Hz. 1 x USB3.0, 4 x USB2.0, 1 x MicroSD slot for data storage or system boot, support switching Auto-Power-On ON/OFF through a toggle switch
• Fanless Passive Cooling Design: To ensure efficient heat dissipation, the entire casing is made of aluminum alloy, with the top and sides featuring a scientifically designed cooling structure. It is specifically built for 24/7 continuous and energy-efficient operation. Please note, The product manual and FAQ guide will be provided before shipping

CWWK F5 6-Network Port Firewall Micro Appliance Fanless Mini PC CPU Options: Twin Lake N150 / Twin Lake Core 3 N355 Memory: 1 x SO-DIMM DDR5 RAM slot, up to 32GB (max 4800MHz) Storage: 2 x M.2 2280 NVMe SSD slots (PCIe3.0 x1), 1 x SATA3.0 port, and 1 x TF card slot Network Controller: 6 x i226-V 2.5GbE LAN Wireless Expansion: The M.2 NVMe slot can be converted to an M.2 WiFi slot by installing an M.2 M-Key to M.2 E-Key adapter, allowing for the expansion of a WiFi/BT module Display Ports: 2 x HD + 1 x USB Type-C, supports up to 4K@60Hz USB Ports: 1 x USB Type-C, 1 x USB 3.2, 4 x USB 2.0 Internal Pin: GPIO pin, COM pin, USB pin Case: Full aluminum alloy case Cooling Type: Fanless passive cooling VESA Stand Supported Fan Installation: Supports additional 1 x 12V 4-pin 8010 fan Power Supply: DC 12V Operating Temperature: -20°C ~ 60°C Size: 16.2 x 12.5 x 5.3 cm / 6.38 x 4.92 x 2.09 inches Weight: 1.1 kg / 2.38 lb Package Contents: CWWK F5 Mini PC, Power Adapter, SATA Cable, Fan Power Cable, VESA Adapter, Screws Official Support: The product user manual, various driver files, and other product-related documents available on the official website Features: Supports AES-NI, Auto Power On, Wake-on-LAN, PXE boot, Power Management, Temperature Management Operating System: Supports Soft Router System, Win OS, Linux, PVE, ESXi External Cable Connections: Supports external connections. Open design with removable front and back panels. The bottom with a little metal plate can be removed for cable connections, especially for requiring external 3.5" SATA HDD
