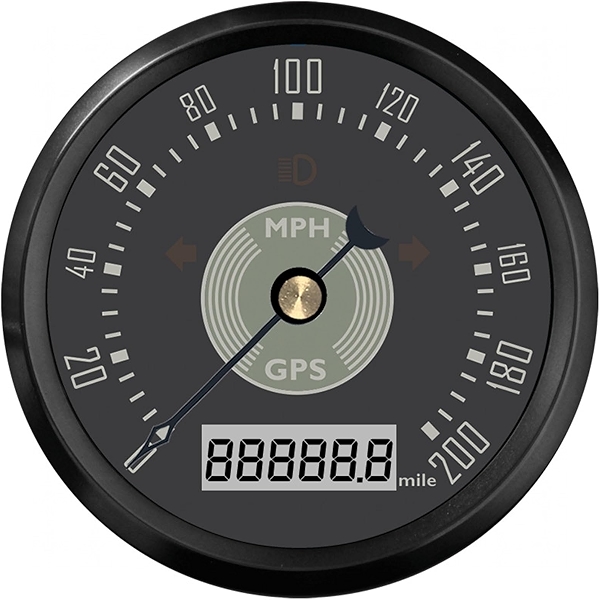

85-мм ретро-классический GPS-спидометр с шкалой 220 км/ч, 200 км/ч, 160 миль/ч, 200 миль/ч, с красно-желтой подсветкой, 12 В/24 В, с антенной (MBUSD-700DH-CL-6M)

---

Informacje o tym produkcie

• Press and hold on the back button or external button, then turn on the power supply.
• The LCD will show ODO, BUZZ, etc.
• You can select the function to be set after release button.
• "BUZZ"(change overspeed buzzer alarm threshold value)
• After selecting "BUZZ", the LCD will show for example "B 80" (buzzer will be on when speed over 80km/h), press the button to change the flashing digit from 10 to 240 to set target overspeed buzzer alarm threshold value.

Gauge Connection:Black Line: GND(-)Red line: 12V24V(+)White Line: External button(+)Red: Red backlightYellow: Yellow BacklightHow to install the gauge?1. Cut an 85mm (3 3/8") hole in the panel (II) allow a clearance of . behind the panel.2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)3. Connect cables according to the diagram. Choose red or yellow background light.4. Securely fasten the GPS antenna, preferably outdoors (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signals. Connect the antenna cable to socket on the gauge. Do not cut cable.5. After turning power on, allow the gauge to sample satellite signal for 1 minute.6. All data is for reference only and should not be trusted as sole navigation source.Function Select: "ODO","BUZZ"FeatureBacklight: Red/Yellow LED- WaterproofPackage: 1PCS Gauge with antenna==========Hign-concerned Chemical : NoneOther Part Number : Speed MeterPlacement on Vehicle : frontInterchange Part Number : OdometerSpecial Features : WaterproofItem Weight : 350gItem Height : 85mmItem Width : 85mmItem Length : 85mmManufacturer Part Number : GPS Speedometer GaugeMaterial : SUSOEM NO. : 220KMH Meter
