Тепловизионная камера UNI-T UTi165A

It is a durable and ergonomically designed thermal imaging camera with excellent performance. It uses UFPA detector to provide excellent infrared resolution and a rich range of pallet modes. It also has the functions of visual light and real-time image transmission, which is convenient for a variety of applications.

Features:

Temperature measurement display: ROI, center point temperature, high/low temperature tracking (default).

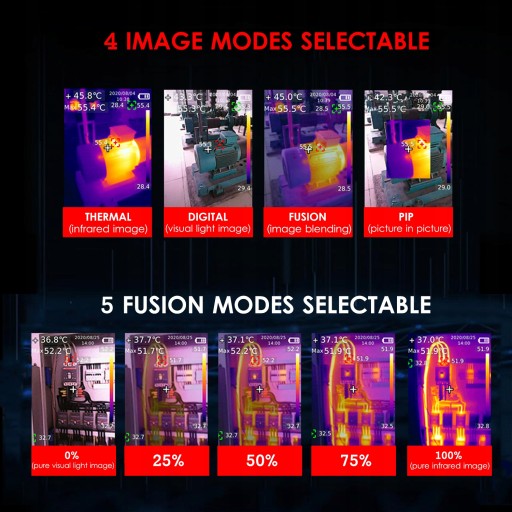

7 color palettes and 4 image modes: including iron, rainbow, white hot, red hot, black hot, lava, rainbow HC, 7 kinds of color palettes and thermal, digital camera (visual light), fusion, PIP 4 different image modes for your choice.

USB communication and image projection: When connected to your computer, you can view photos, analyze data and export PDF file in USB mode. or switching to USB camera mode, allows you to realize image projection in real time.

Supports image storage: it is equipped with 16G micro TF memory card to save captured images.

HD TFT screen: 2.8-inch infrared TFT screen with 256*192 HD resolution, the image displayed is clear than a normal thermal imaging camera and allows you to observe more detail of the image.

LED Light: LED flashlight for auxiliary lighting, besides, the light will flash when the measured temperature exceeds the set temperature range.

Built-in lithium-ion battery: The 3.6 V 5000 mAh high capacity battery provides up to 6-hour battery life when fully charged. Charge or connect to your computer using the included Type-C cable.

Multifunctionality and practicality: temperature measurement range -10℃,400℃, unit switching ℃/℃, visual camera, high/low temperature automatic recording, high/low temperature alarm, display brightness adjustment, IP65 protection and fall resistance with 2 m, etc.

Sensor: uncooled focal plane

Temperature range: - 10 ℃~400 ℃

Resolution: 0.1 ℃

Mode: automatic gain

Accuracy: 0 ℃ or above target temperature: accuracy: ± 2 ℃ or ± 2%

Temperature measurement response time: ≤ 500ms (95% of reading)

Emissivity: 0.95 (default) (0.1~0.99 adjustable)

Thermal imaging pixel: 4800 (80 * 60)

Pixel size: 17 μ m

Color palette: white heat, red heat, ice blue, rainbow, iron red

Infrared spectrum bandwidth: 8~14 μ m

FOV: 51 ° (H) * 38 ° (V)

Instantaneous field angle IFOV: 11mrad

Thermal imaging sensitivity: ≤ 150mK (0.15 ℃)

Frame rate:<9Hz

Temperature measurement display: center point temperature measurement and high and low temperature tracking

Image format: bmp

Key: (power on key, photo key, return key, left and right up and down navigation key, SET key, picture browse key, LED lighting on key)

PC analysis software (PC): Yes

Data communication: Type-C USB

Product size (LxWxH): 236 * 75.5 * 86

Display type: 2.8 "TFT LCD

Display resolution: 320 * 240

Battery: Li-ion 3.6V/5000mAh 26650 single unit

Automatic shutdown: optional (5min 10min 30min) default 30min

Use time: no less than 6 hours

Charging time: about 4 hours

Charging voltage/current: 5V/2A

Image storage: Micro SD card

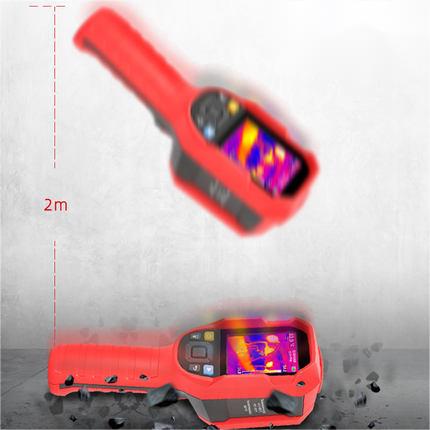

Drop requirement: 2m

IP grade: IP65

Certification: CE

Storage temperature: - 20~60 ℃ (- 4~140F)

Working temperature: 0~50 ℃ (32~122F)

Operating humidity:<90% RH (non condensing)

Altitude: no more than 2000 meters

Accessories: manual, Type-C USB cable, 16GB TF card
