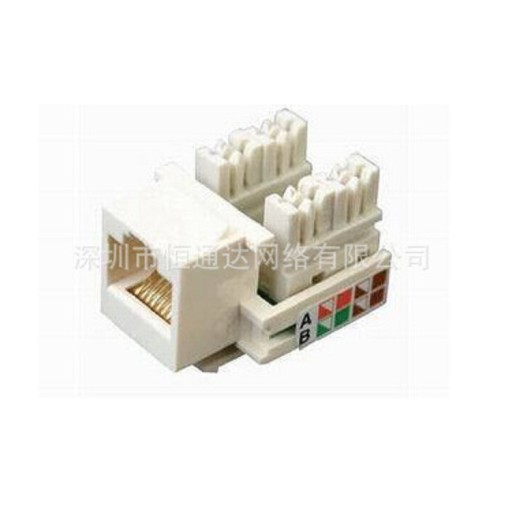

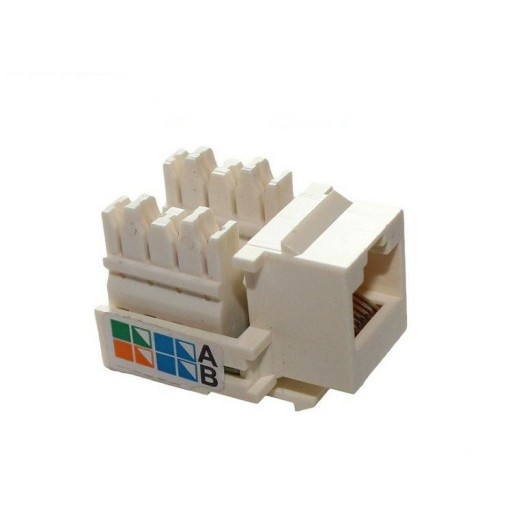

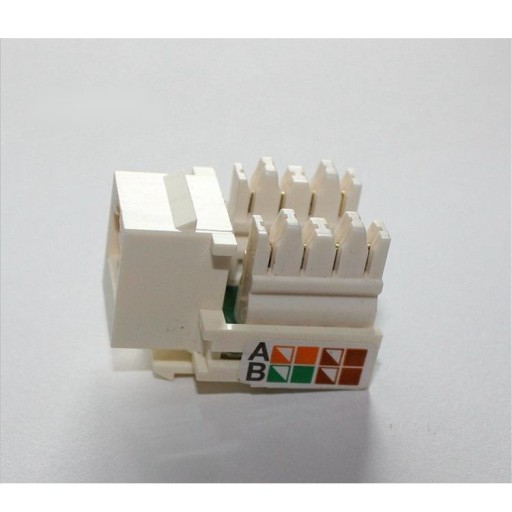

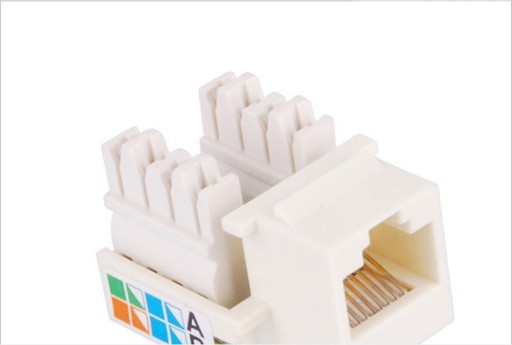

Информационный модуль сетевого модуля RJ45 класса 5

Product characteristics:

1. The Class 5 RJ45 module is an 8-pin socket module designed and manufactured in accordance with international standards ISO/IEC11801 and TIA/EIA568.

2. The design of its information module meets the expected level requirements.

3. Multiple types of information modules provide more options for wiring operations.

Technical indicators:

1. IDC wiring column is nickel plated with phosphorus bronze, with a wire diameter of 0.4~0.6mm

2. Clamping repetitions ≥ 250 times

3. Socket insertion and extraction times ≥ 750 times

4. Dielectric strength DC1000V/(AC700V) for 1 minute without breakdown

5. Contact needle gold plating thickness ≥ 50U

6. Plastic material: PC/PPO

7. Passing the Fluke test

8. Produced with brand new materials, with a round color and stronger toughness

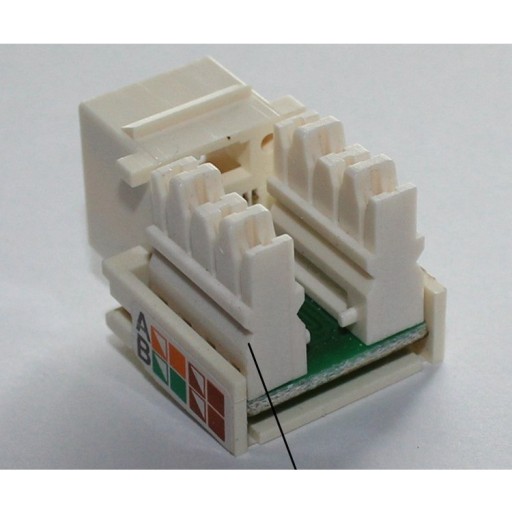

9. The double-layer circuit board has more exquisite workmanship, and the FR4 PCB board produced with new technology adopts a sinking gold process.

10. 16 welding spot welds shall be round and free from false welding, false welding, overlap welding, etc. Very sturdy
